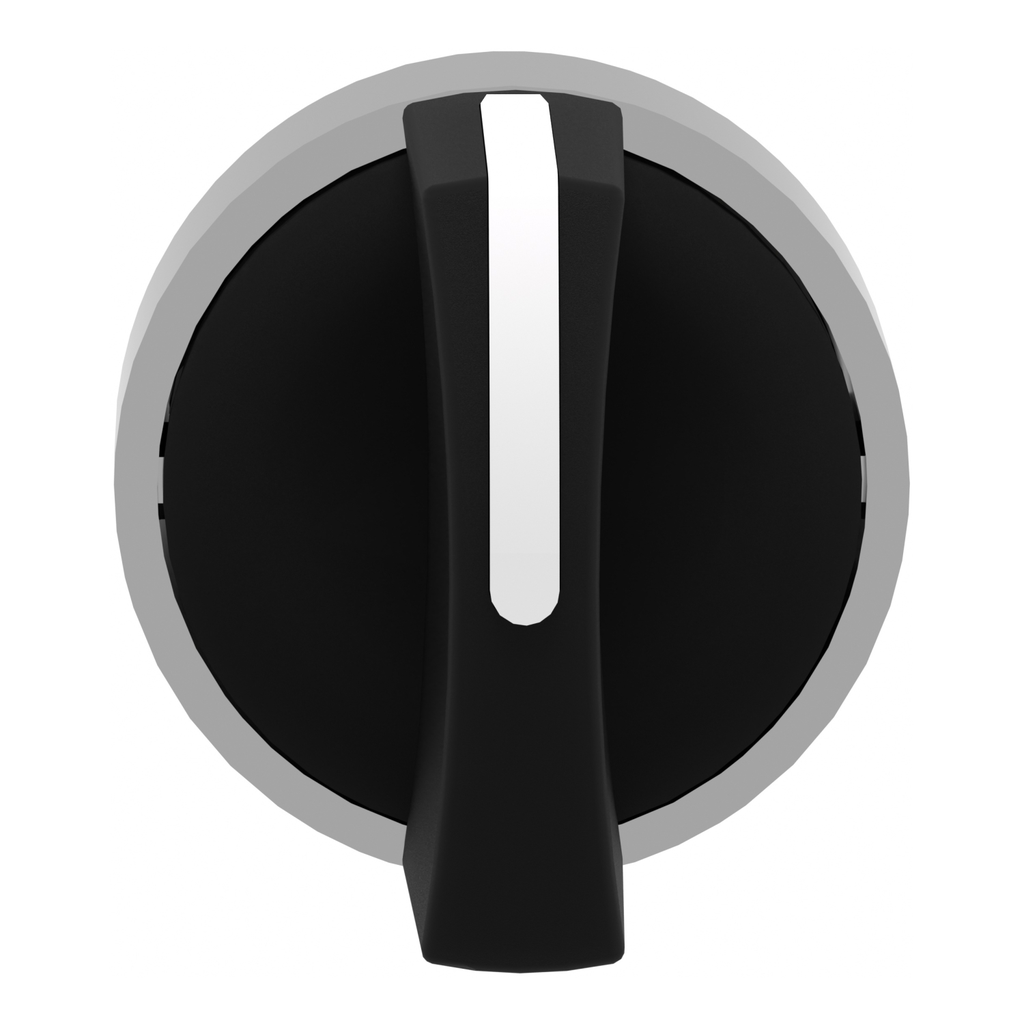

Square D ZB4BD7 Selector Switch

Manufacturer: Square-D / Schneider | Catalog # ZB4BD7 | Cooper Electric Part # 112097

$21.61 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Harmony XB4, black selector switch head with standard handle has 3 positions, operates with spring return from left to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40.C to 70.C allows versatility in usage of product.

Technical Information

Action
MOMENTARY (FROM LEFT TO CENTER)
Actuator
3 positions +/- 45
Applications
BLACK UNMARKED
Bezel Material
Chromium Plated Metal
Enclosure
NEMA 1/2/3/4/4X/13
Head Type
Standard
Indicator
BLACK
Net Weight
0.04 kg
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for selector switch

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB4

General Product Info

12-Digit UPC
338911088900
Color
Black
Environmental Conditions
IP 65
GTiN
03389110889017
Product UPC
78590135459
Weight
0.04 kg

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Type Of Operator
  • left to centre spring return
Overvoltage Category
  • class I conforming to IEC 60536
Electrical Composition Code
  • C3 6 single front mounting
  • C4 6 single and double front mounting
  • C4 6 single and double front mou
IP Degree Of Protection
  • IP67 IEC 60529
  • IP69
  • IP69K
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0064685381
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0 kg CO2 eq.
  • 0.0459398383
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.3 kg CO2 eq.
  • 0.2662582233
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Accessories
  • ZB4BZ009
  • ZBY2101
  • ZBYLEG201001
  • ZBYP2101
Vibration Resistance
  • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0
Accessory Products
  • ZB4BZ009
  • ZBY2101
  • ZBYLEG201001
  • ZBYP2101
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Customizable
  • no
  • 0
Carbon Footprint Of The Distribution Phase A4
  • 0.0052307538
  • 0 kg CO2 eq.
Resistance To High Pressure Washer
  • 7000000 Pa 55 °C 0.1 m
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Operator Profile
  • black standard handle
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave ac
