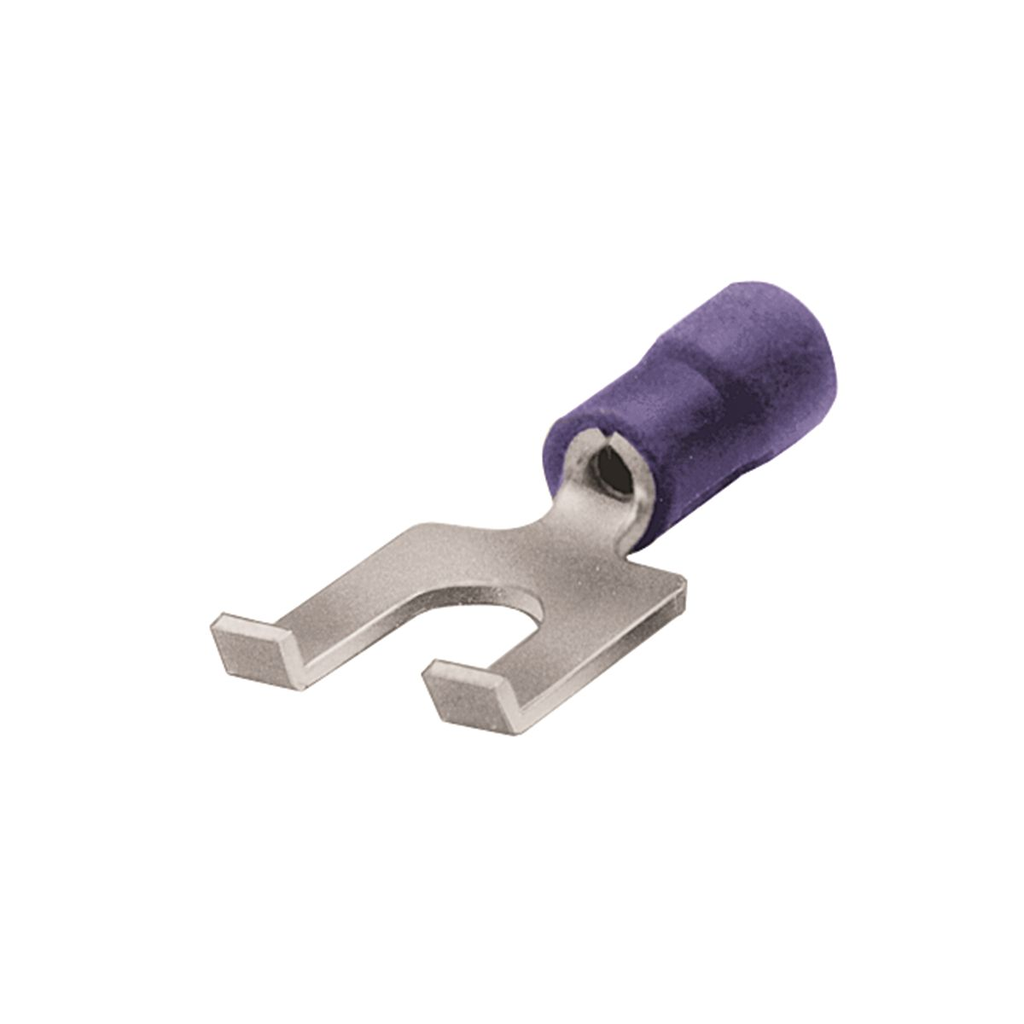

Product image for Burndy TP1014F #12-#10 Awg Vinyl Fork Terminal
Email

Burndy TP1014F #12-#10 Awg Vinyl Fork Terminal

Manufacturer: Burndy | Catalog # TP10-14F | Cooper Electric Part # 1119519
$1.89/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Insulated Brazed Pure Electrolytic Cu Fork Terminal, #12 - #10 AWG, #12 - 1/4" Stud

Technical Information

Cable Size
12 - 10 AWG
Color Coding
Yellow
Conductor Type
CU C Str-Size
Connection Type
Fork Terminal
Insulation Type
Vinyl
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Tongue Type
Fork
Type
Fork Terminal
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
621945047105
Color
Yellow
GTiN
00621945047105
Product UPC
62194504710

Dimensions

Hole Size
0.26 in
Length
1.26 Inch
Overall Length
32 mm

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Fork terminals are constructed of pure electrolytic copper
  • Long brazed seam barrel with deep V groove inner serations for optimum conductivity, reliability and holding power after crimping
  • Fork tongue design for faster installation - screw only needs to be loosened for termination
  • Two or more terminals can be stacked on a common stud
  • Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
  • Electro-tin plating for durable, long lasting corrosion resistance
  • Inspection hole/skive provides an easy visual check of proper wire insertion
  • 600 Volts maximum, 105°C maximum
