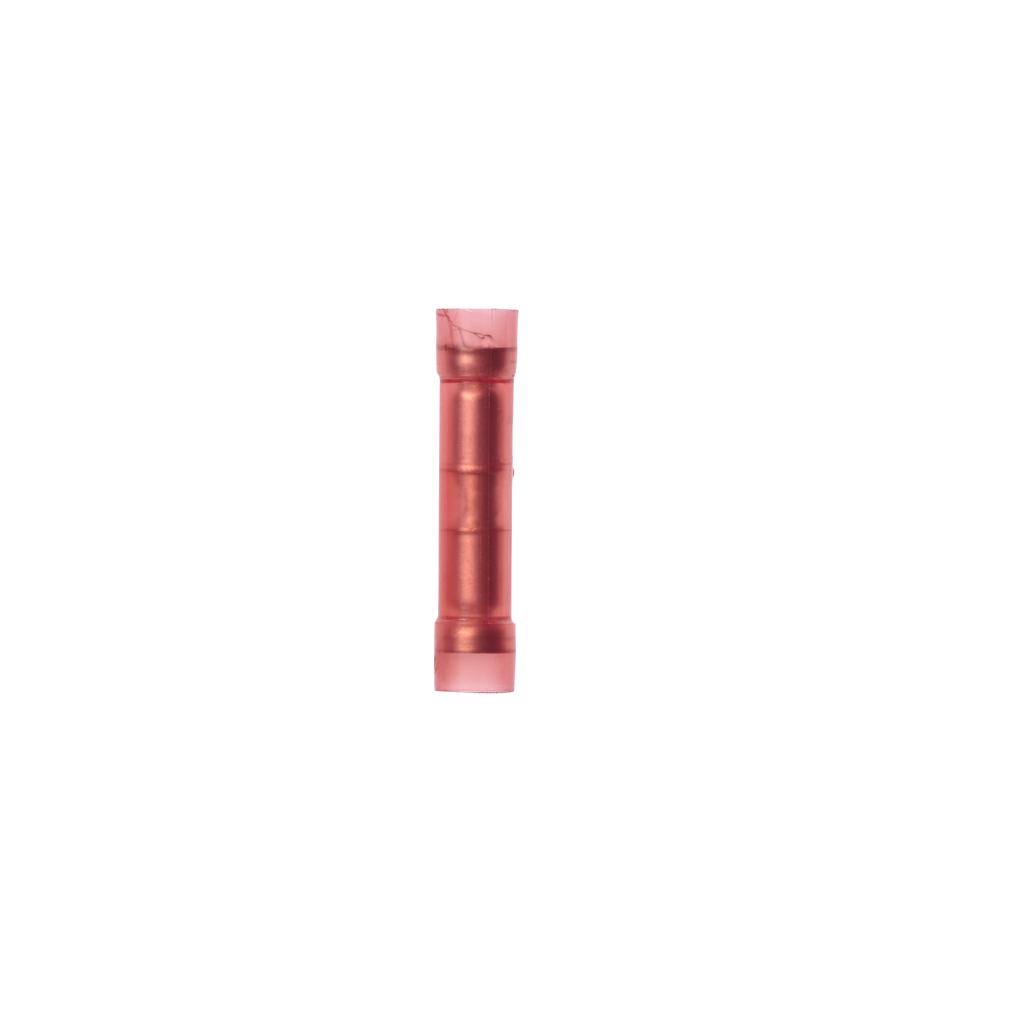

Product image for 3M MNG18BCMX-A 100/Bottle Nylon Insulated Grease Filled Butt Connector
Email

3M MNG18BCMX-A 100/Bottle Nylon Insulated Grease Filled Butt Connector

Manufacturer: 3M | Catalog # 7000058841 | Cooper Electric Part # 1115520
$2.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Grease Filled Butt Connector ensures an ideal fit while offering reliable and safe performance. The moisture-resistant Connector has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
22-18 AWG
Insulation Material
Insulation Grip,Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Terminal Size
22 - 18 AWG
Terminal Style
Moisture Resistant
Terminal Type
Butt Connectors
Type
Butt

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
051128589939
Color
Red
GTiN
00051128589939
Product UPC
05112858993

Dimensions

Length
1.02 Inch
Overall Length
1.02 in
Thickness
0.03 in

Certifications and Compliance

Country of Origin
Taiwan
  • Red nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Built-in wire stop for correct positioning
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Accommodates wire sizes 22 to 18 AWG
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
