Panduit FR6ACB12 FiberRunner® Adjustabl

Manufacturer: Panduit Corp | Catalog # FR6ACB12 | Cooper Electric Part # 1114713
$62.34/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Engineering Drawing

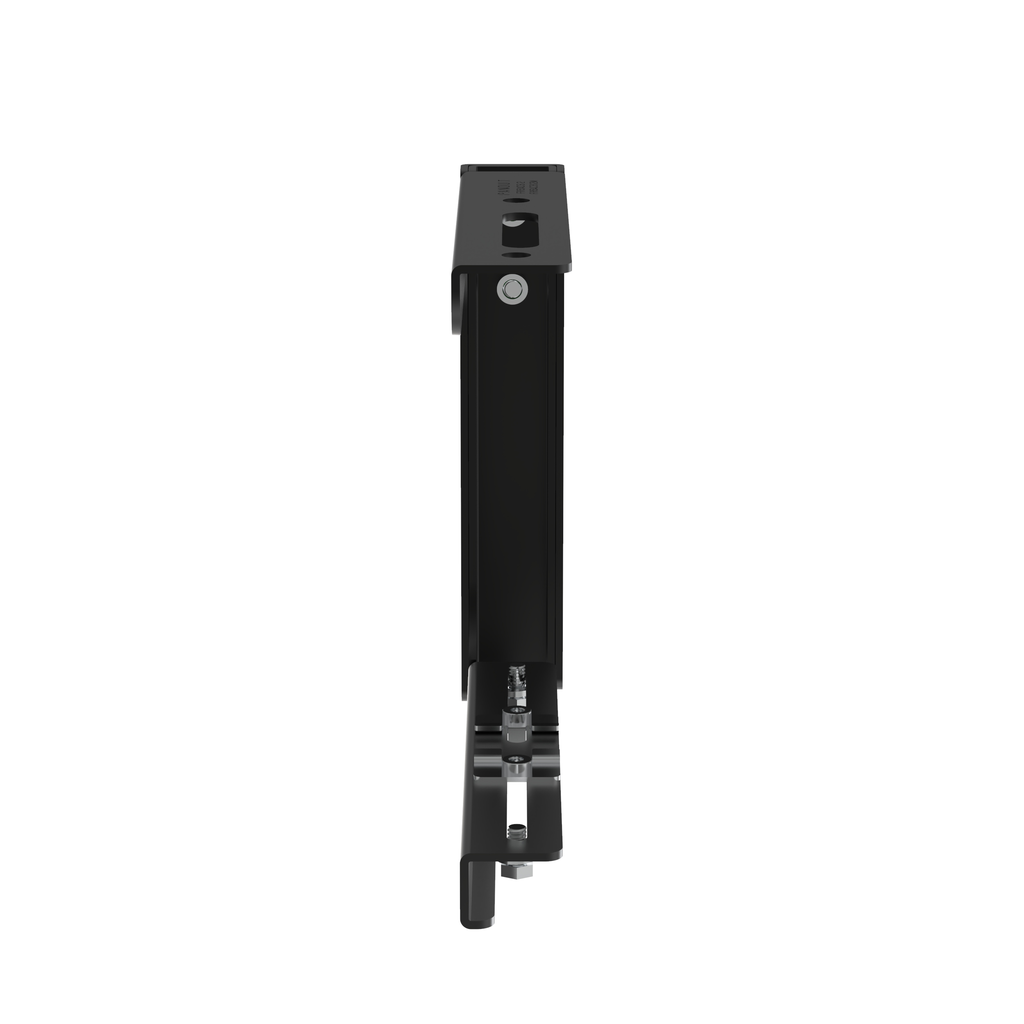

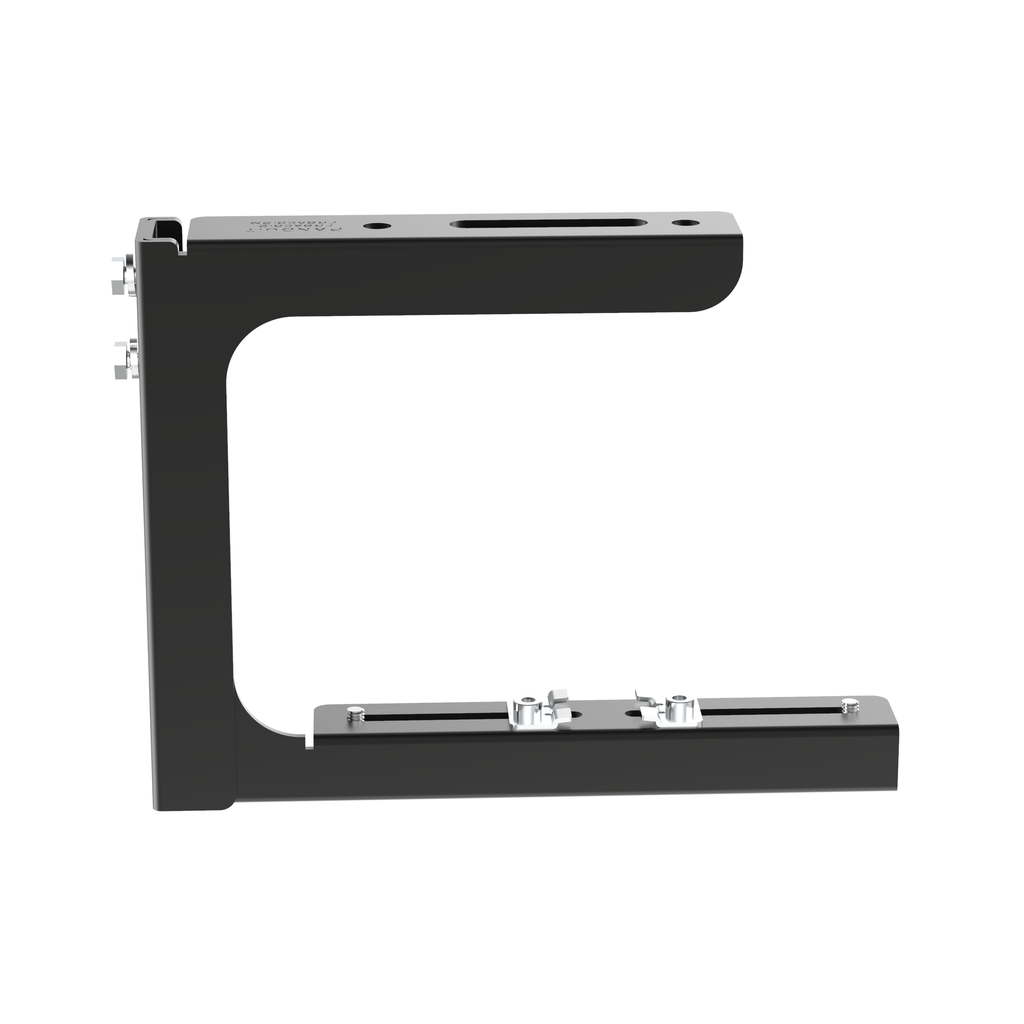

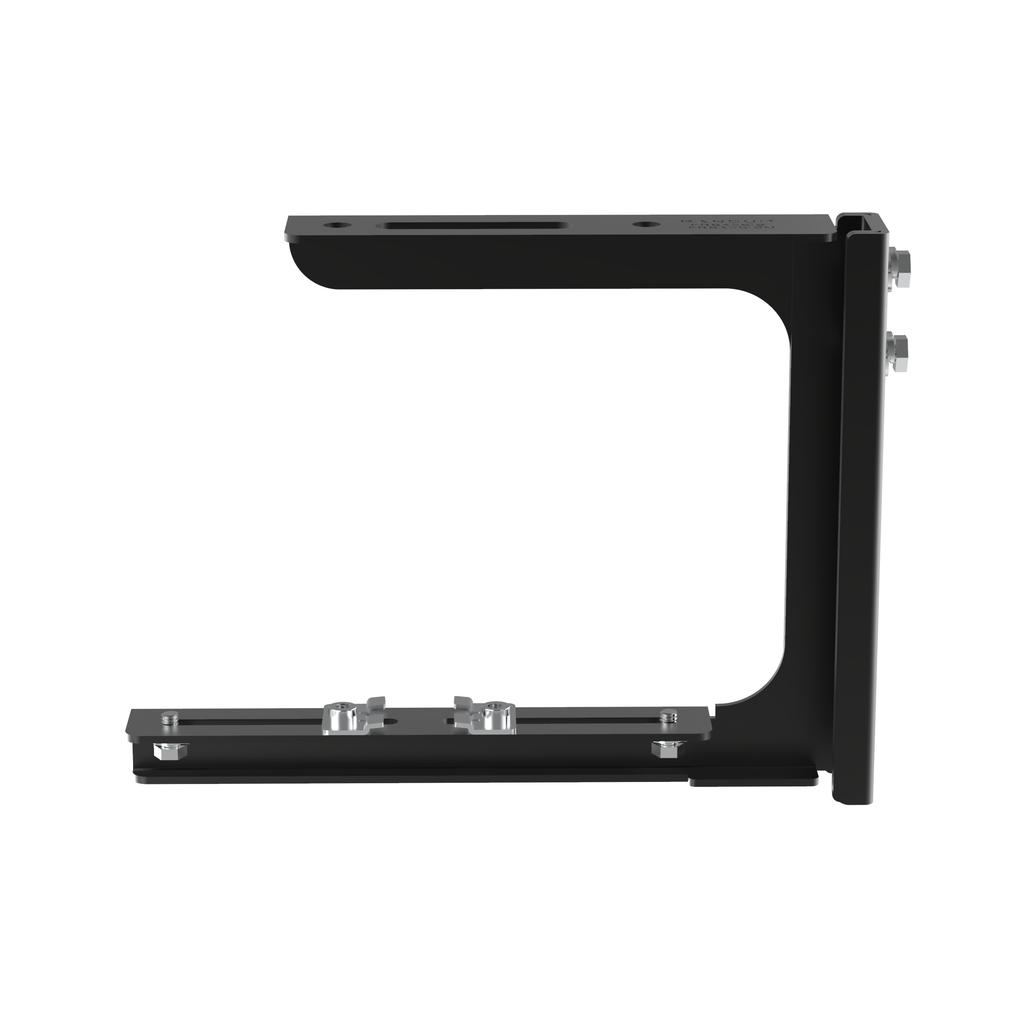

The FiberRunner® QuikLock™ Adjustable Cabinet Bracket is used in cable routing systems to support the 6x4 or 4x4 systems by attaching to the top of the cabinets. It features two-position height adjustments to accommodate systems with or without a hinged cover. This helps allow runs to be leveled over uneven cabinet heights. It is secured to the cabinet frame with trough bolts (not included). The pre-assembled slide clamps enable fast assembly to the channel.

Technical Information

Applications
To Support 4 x 4, 6 x 4 Cable Routing System
Material
Steel
Type
Top Support

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
FiberRunner

General Product Info

12-Digit UPC
074983839803
Color
Black
GTiN
00074983839803
Product UPC
07498383980
Used With
Fast Assembly to Channel, 1/2 in Rod

Dimensions

Height
8.72 Inch
Overall Length
285.5 mm
Width
42.2 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
China,Mexico
Standards and Certifications
  • Standards Met: UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the Applicable Tests in Telcordia Gr-63-Core Network Equipment Building Systems Level 3, LP-CSISPEC-FR
Prop 65
  • No
