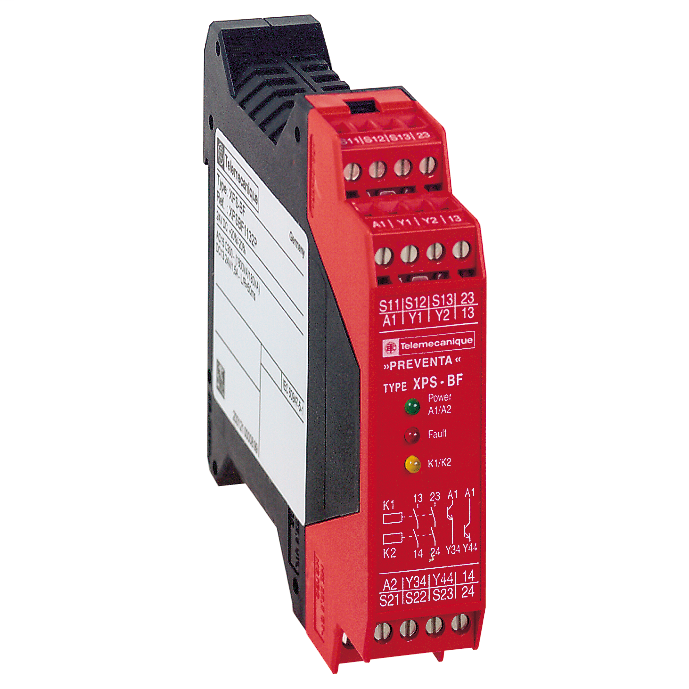

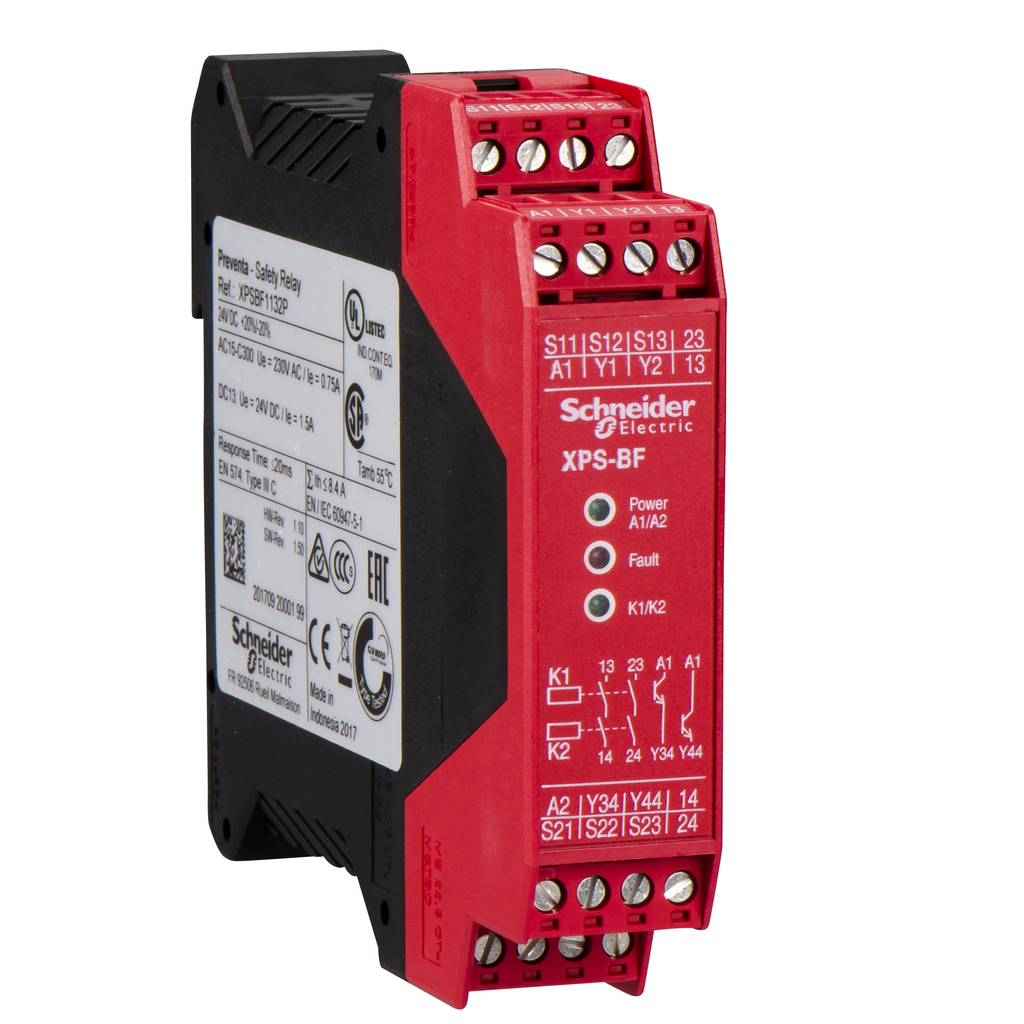

Product image for SQD XPSBF1132P SAFETY RELAY 300V 2.
Image thumbnail 0
Image thumbnail 1
Email

SQD XPSBF1132P SAFETY RELAY 300V 2.

Manufacturer: Square-D / Schneider | Catalog # XPSBF1132P | Cooper Electric Part # 1113979
$555.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
This XPSBF safety module is for electrical monitoring of two-hand control stations. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for two-hand control stations, designed to protect operators from sustaining hands injury. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.

Technical Information

Applications
FOR ELECTRICAL MONITORING OF TWO-HAND CONTROL STATIONS,MONITORING TWO-HAND CONTROL STATION AND A FOOT SWITCH
Contact Configuration
2 N.O. (INSTANANEOUS) 2 SOLID STATE
Contact Rating
180 VA HOLDING AC-15 C300 RELAY OUTPUT-1800 VA INRUSH AC-15 C300 RELAY OUTPUT,20 MA 24 V SOLID STATE OUTPUT CIRCUIT-1.5 A 24 V DC-13)50 MS RELAY OUTPUT
Current
24 V
Output
2 SOLID STATE OUTPUTS,RELAY, 2 NO, VOLT-FREE
Power Supply
2.5 W,24 V DC - 20...20
Standard
EN 574 Type III C/ISO 13851,EN/IEC 60204-1,EN/IEC 60947-5-1
TC Connection
CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.14...1 X 2.5 MMA FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.14...1 X 2.5 MMA SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.14...2 X 0.75 MMA FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.14...2 X 0.75 MMA SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.5...2 X 1.5 MMA FLEXIBLE WIT
Type
PREVENTA SAFETY MODULE

Manufacturer Information

Brand
Preventa
Sub Brand
PREVENTA

General Product Info

12-Digit UPC
785901629832
GTiN
03389110274226
Product UPC
78590162983
Weight
0.33 lb

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,TV,UL
Country of Origin
Indonesia
