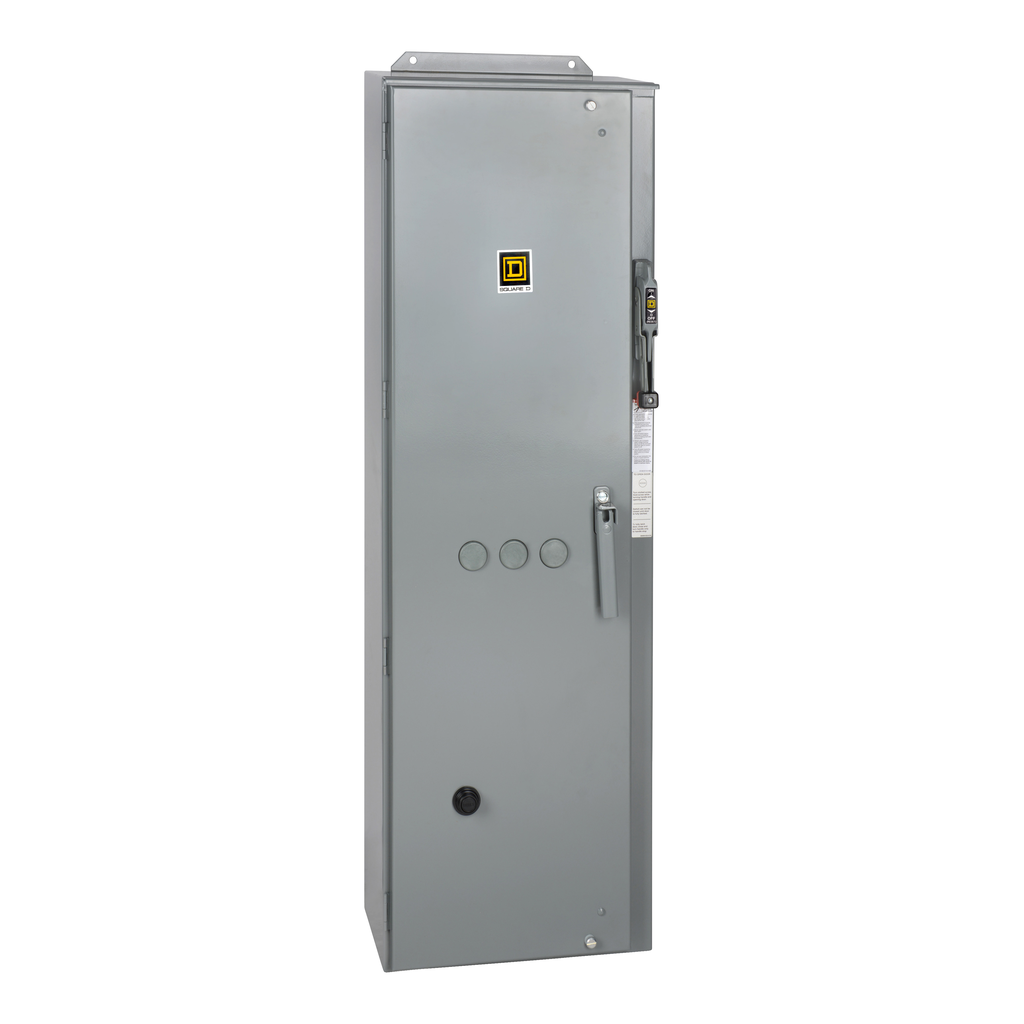

Square D 8539SFA54V02S 110/120 VAC 135 Amp 100 Hp 3-Pole Full Voltage Non-Reversing Combination Starter

Type S nonreversing thermal magnetic circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 4 starters have ratings of 30 to 40 HP at 208, 40 to 50 HP at 240 VAC and 60 to 100 HP at 480 and 600 VAC three phase. Combination starter has a JJL36250M75 circuit breaker. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type CC thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure is used to protect this starter. Enclosure is 52.50 inches tall, 16.00 inches wide and 10.53 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
