Panduit PUR6004BU-W Copper Cable, Cat 6, 23 AWG, UTP, CMR, Black

Manufacturer: Panduit Corp | Catalog # PUR6004BU-W | Cooper Electric Part # 1112890
$906.32/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure

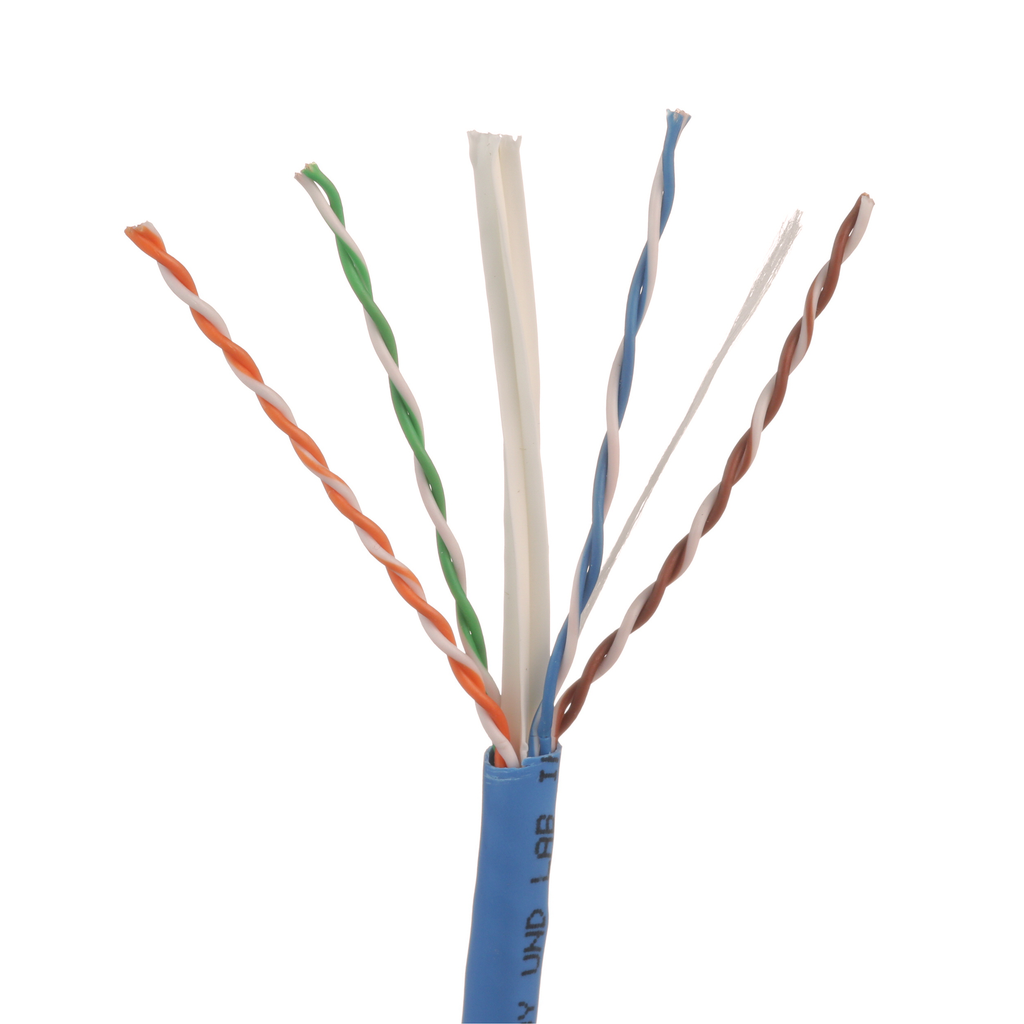

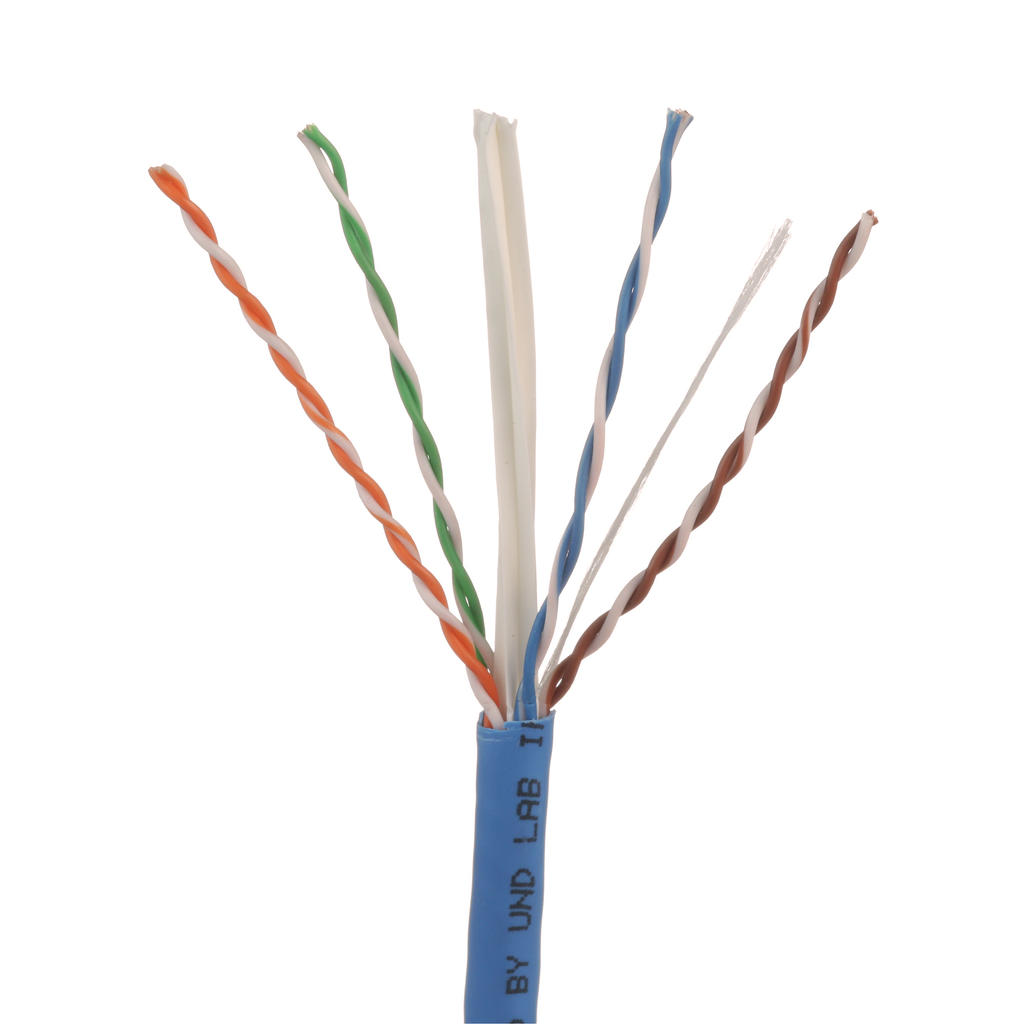

The TX6000™ Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with HDPE insulation. The copper conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a HDPE flame-retardant jacket. The blue, riser (CMR) cable is supplied 1,000 feet (305 meters) to an easy pay-out carton.

Technical Information

Applications
Indoor
Conductor Material
Copper
Conductor Size
23 AWG
Conductor Type
Solid
Insulation Material
Polyolefin
Max Operating Temperature
167 degrees F
Min Operating Temperature
-20 degrees C
Number of Conductors
8
Number of Pairs
4
Performance Level
Category 6
Resistance
Flame Retardant
Temperature Rating
-20 to 75 degrees C
Type
U/UTP
Voltage
8.63 Volt

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983669318
Color
Blue
Construction
U/UTP
Environment
Indoor
GTiN
00074983669318
Jacket Color
Blue
Jacket Material
PVC
Product UPC
07498366931
Weight
25 lb/1000 ft

Dimensions

Length
1000 Foot
Outer Diameter
0.24 in
Outside Diameter
0.231 in
Overall Length
1000 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Vietnam
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E with Channel Headroom Guarantee, UL1666 and CSA FT-4, meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications, RoHS Compliant.
