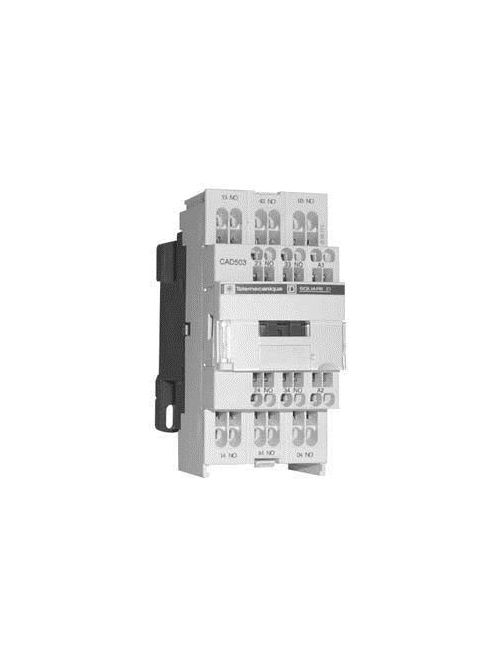

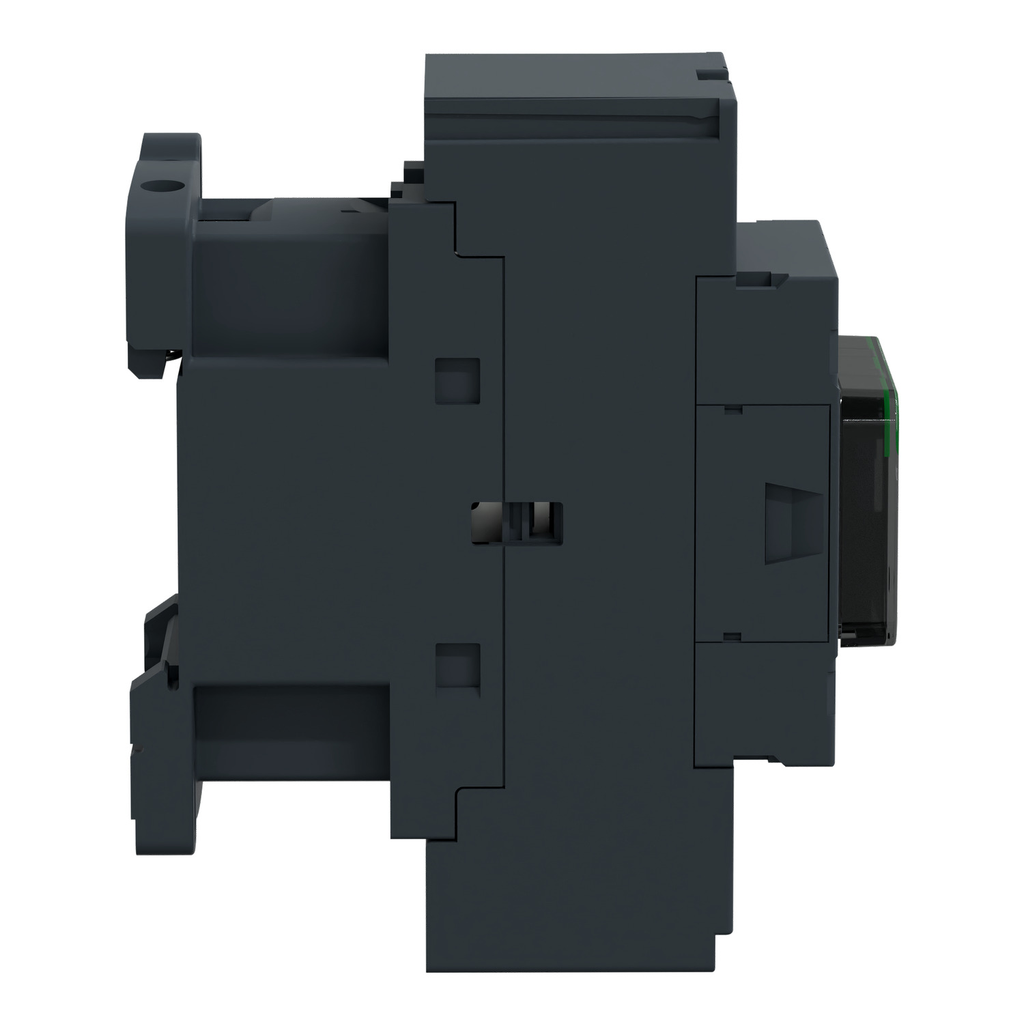

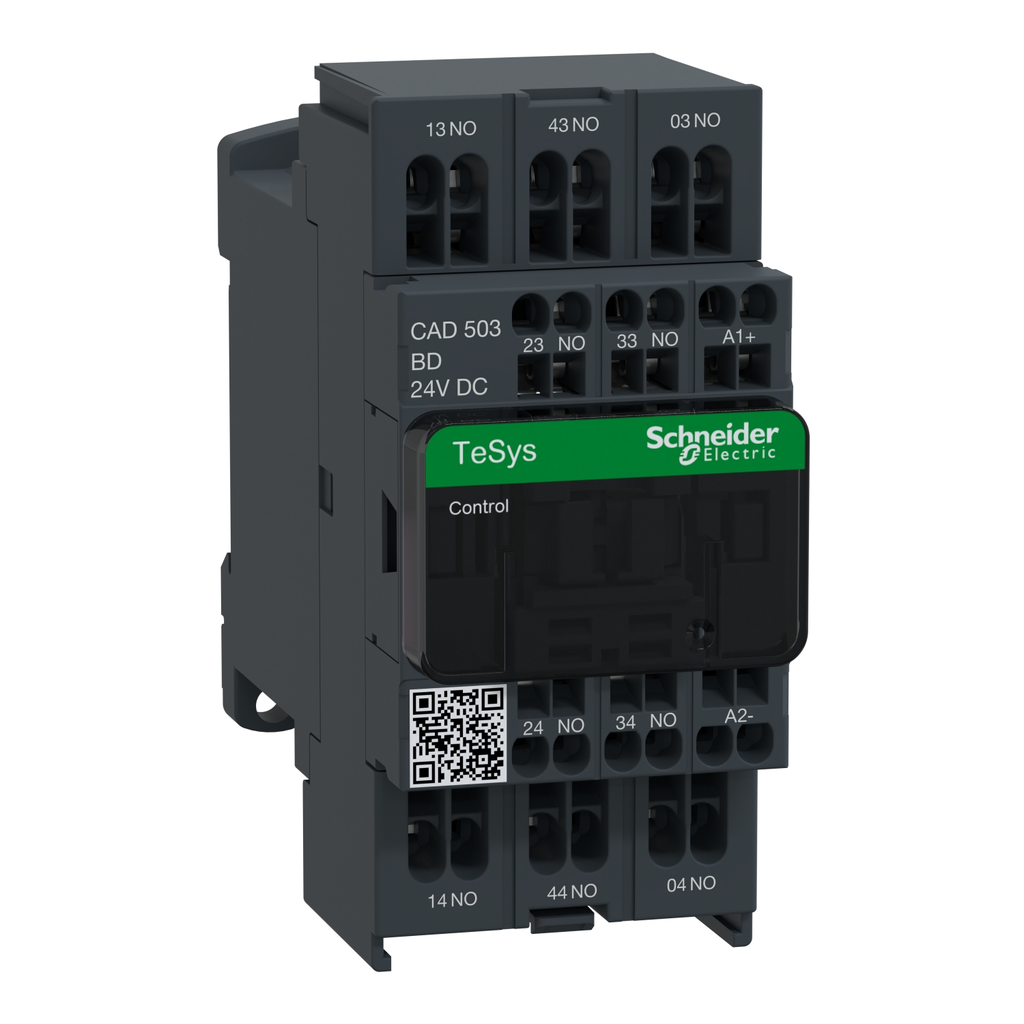

Square D CAD503BD 24 VDC 10 Amp 5-Pole 5NO IEC Control Relay

Manufacturer: Square-D / Schneider | Catalog # CAD503BD | Cooper Electric Part # 1112119
$147.74/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60.C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Technical Information

Amperage
10 Amp AT <= 60 ?C
Applications
Control circuit
Contact Configuration
5 NO
Contact Rating
<= 690 V AC 25...400 HZ
Enclosure
IP2X FRONT FACE CONFORMING TO VDE 0106
Net Weight
0.58 kg
Operating Cycles
180 cyc/mn
Operating Temperature
-40-70 Adegrees C
Size
3.66 in
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,GB/T 14048.5,JIS C8201-5-1,UL 60947-5-1
Storage Temperature
-60-80 degrees C
TC Connection
SPRING TERMINALS 1 1-2.5 MMAFLEXIBLE WITHOUT CABLE END- SPRING TERMINALS 2 1-2.5 MMAFLEXIBLE WITHOUT CABLE END- SPRING TERMINALS 1 1-2.5 MMASOLID WITHOUT CABLE END- SPRING TERMINALS 2 1-2.5 MMASOLID WITHOUT CABLE END
Type
Control relay
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS

General Product Info

12-Digit UPC
785901611929
GTiN
03389110820317
Product UPC
78590161192
Weight
0.58 kg

Dimensions

Depth
93 mm
Height
99 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CB,CCC,CE,CSA,EAC,UKCA,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LAD9ET1S
  • LAD4DDL
  • LADN223
  • LADN403
  • LADN113
  • LAD6K10M
  • LADN203
  • LAD9ET1
  • LAD6K10F
  • LADN313
  • LAD6K10B
  • LADN023
  • LADN043
  • LADR23
  • LADN133
  • LADT03
  • LAD6K10E
  • LADR03
  • LADS23
  • LADT23
  • LA9D93
  • LADC223
  • LAD6K10U
  • LADT43
