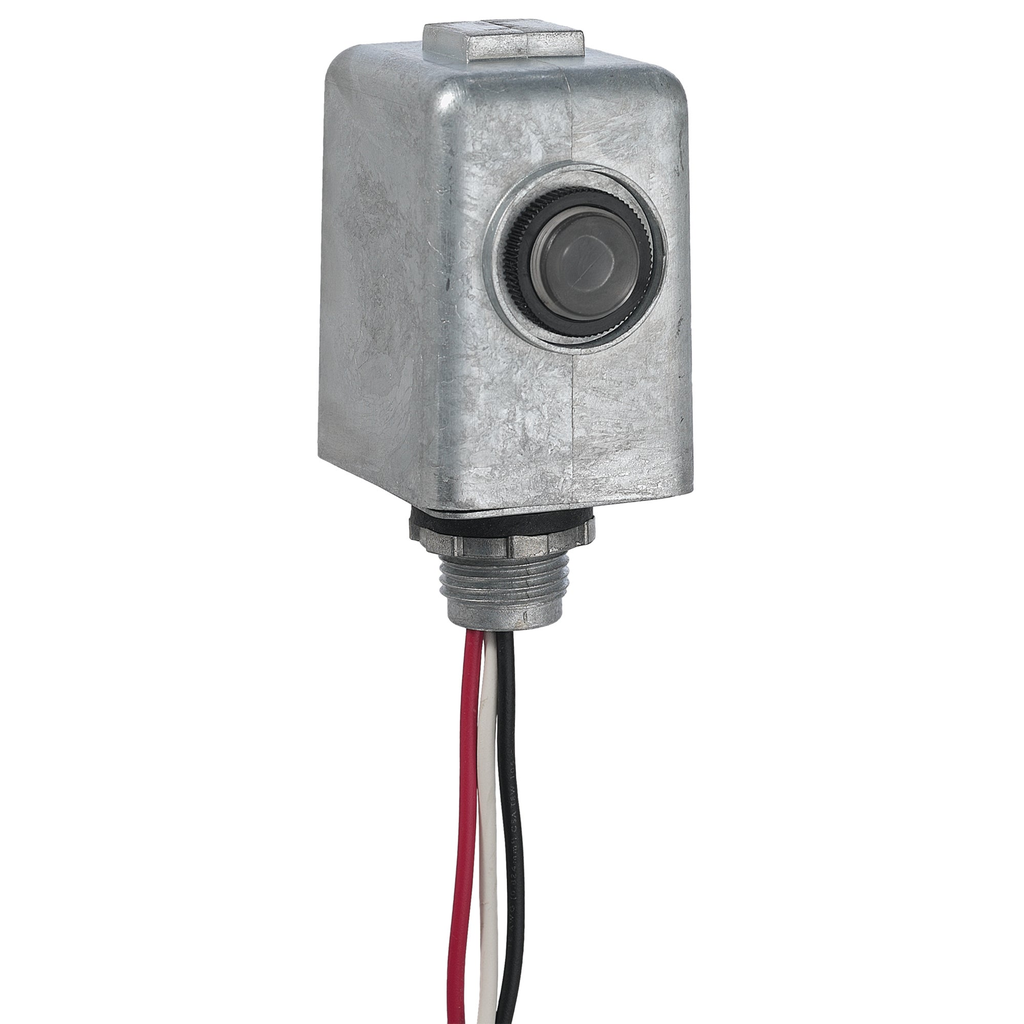

Intermatic EK4436SM 105 to 305 VAC 50/60 Hz 1000 W Stem Mount Electronic Photocontrol

Manufacturer: Intermatic, Inc | Catalog # EK4436SM | Cooper Electric Part # 1110139
$81.78/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
12 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
These electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes, or outdoor lighting fixtures. Ideal for LED and induction fixtures with long-life expectations

Technical Information

Applications
Dusk to Dawn Lighting Control, Indoor/Outdoor/Raintight
Enclosure
Metal Outdoor
Input Voltage
120-277 V
Material
Metal
Max Operating Temperature
158 degrees F
Max Wire Size
18 AWG
Min Operating Temperature
-40 degrees C
Mounting Type
Stem
Operating Cycles
10k
Operating Temperature
-40degrees F to 158degrees F
Power Consumption
400m W
Power Rating
0.4 W Maximum
Sensor Type
Silicon
Size
1.75 W x 2.25 D x 3.38 H Inch
TC Connection
Color coded Leads
Temperature Rating
-40 to 158 degrees F
Type
Electronic, Dusk-to-Dawn
Voltage
120-277 VAC
Wire Length
228.6 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275148406
Color
Gray
GTiN
00078275148406
Product UPC
07827514840
Weight
0.6 lb

Dimensions

Depth
2.188 Inch
Height
2.688 Inch
Warranty Length
8 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • 15-year design life
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
  • 255 J MOV surge protection element
  • 1?2\"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
  • #18 AWG wire leads
