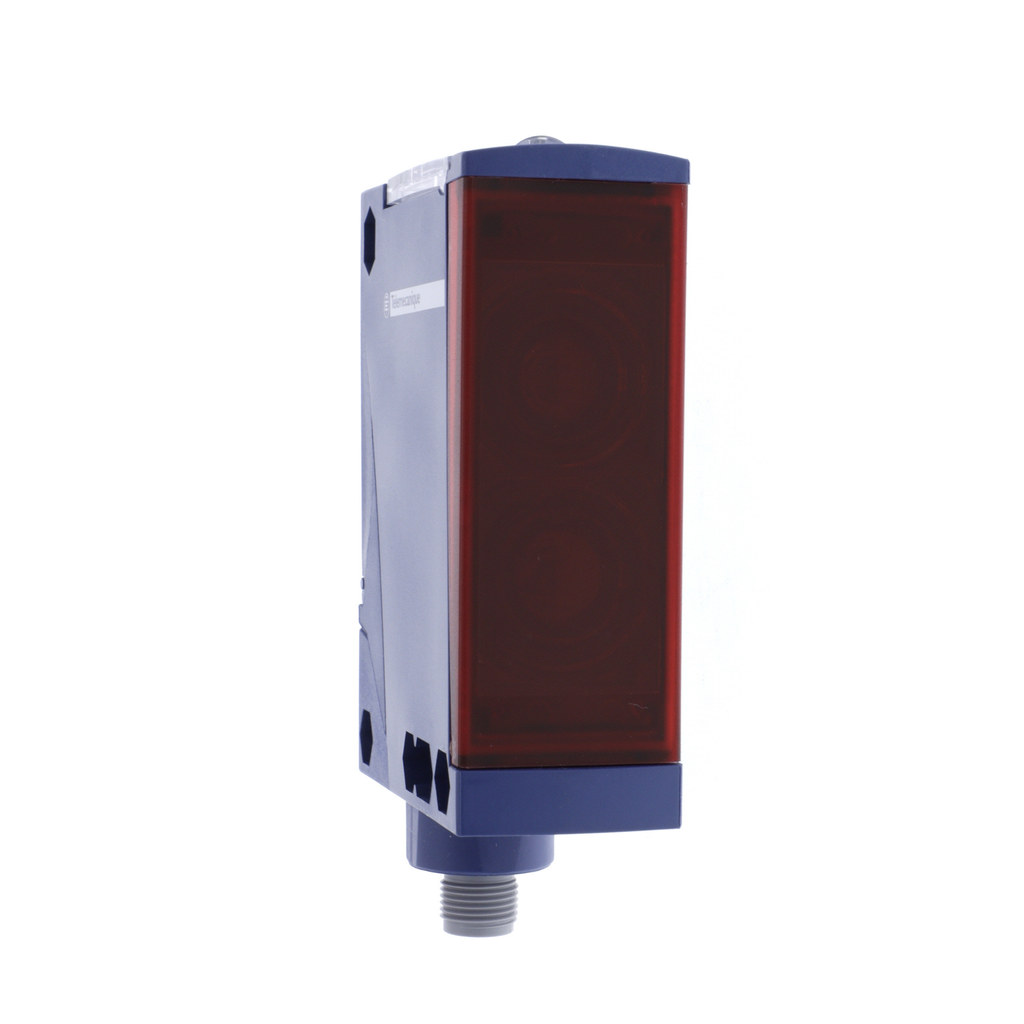

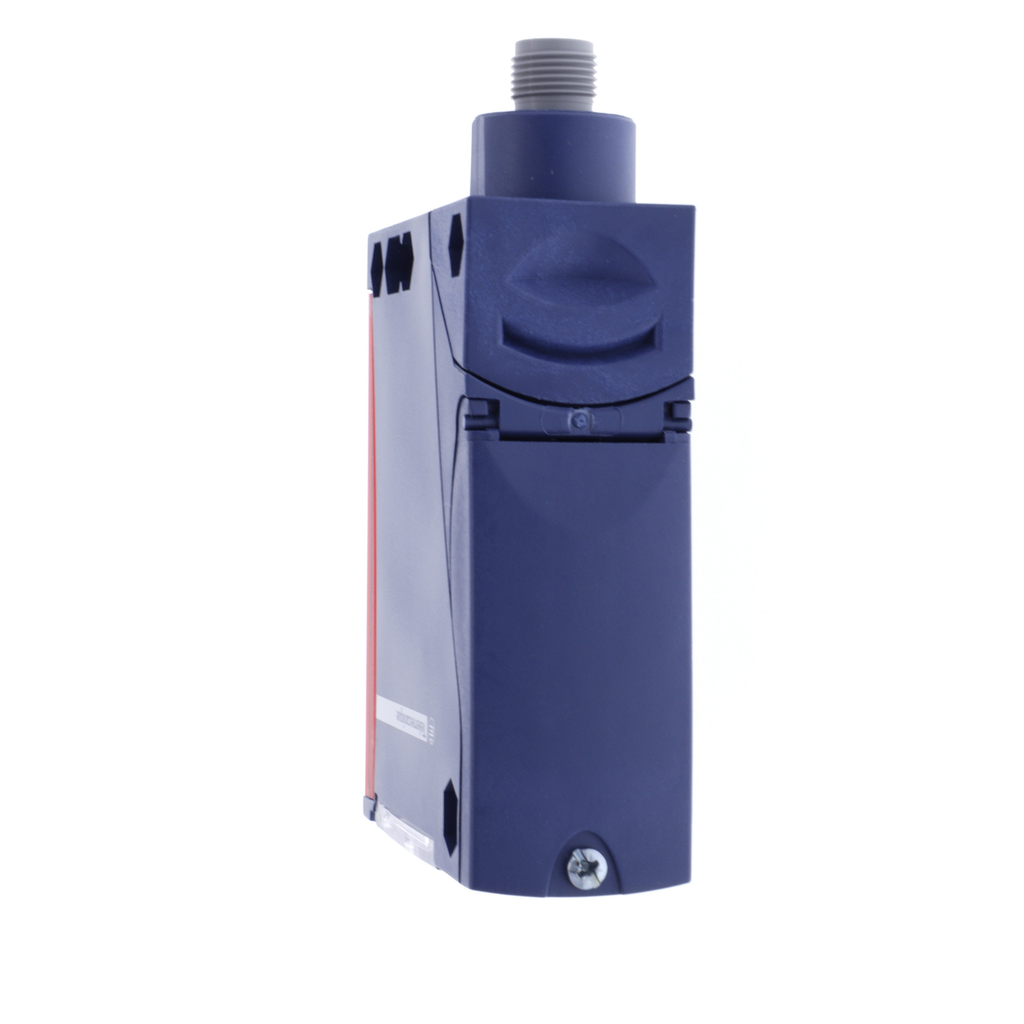

Product image for TES XUX0AKSAM12 Photoelectric sensors XU, XUX, multi, Sn 0...40 m, 12...24 VDC, M12
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

TES XUX0AKSAM12 Photoelectric sensors XU, XUX, multi, Sn 0...40 m, 12...24 VDC, M12

Manufacturer: TES Electric | Catalog # XUX0AKSAM12 | Cooper Electric Part # 1107901
$169.05/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This compact design single mode (thru-beam system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode rectangular photoelectric emitter has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+55.C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Technical Information

Amperage
<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
-
Current
35 mA
Enclosure
IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Enclosure Material
PBT
Material
Plastic
Net Weight
0.2 kg
Operating Cycles
<= 250 Hz
Operating Temperature
-25-55 degrees C
Output
1 NO or 1 NC programmable;Solid state;Discrete
Sensing Range
11-11 M POLARISED REFLEX NEED REFLECTOR XUZC50-40-40 M THRU BEAM NEED A TRANSMITTER XUX0AKSAM12T-2-2 M DIFFUSE-1.3-1.3 M DIFFUSE WITH BACKGROUND SUPPRESSION,> 0...131.23 FT (> 0...40 M)
Size
3.03 in
Storage Temperature
-40-70 degrees C
TC Connection
1 MALE CONNECTOR M12, 4 PINS
Type
Multimode;Photo-electric sensor;Compact 92 x 71;General purpose multimode
Voltage
12...24 Volt DC REVERSE POLARITY PROTECTION

Manufacturer Information

Brand
Telemecanique
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
785901582489
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR)
GTiN
03389110168020
Product UPC
78590158248
Weight
0.44 lb

Dimensions

Depth
77 mm
Height
92 mm
Warranty Length
18 mth
Width
31 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
France
