ILSCO VSBR-18-10-P50 CU CMP 22-18 #

Manufacturer: Ilsco | Catalog # VSBR-18-10-P50 | Cooper Electric Part # 1104941
$69.25/ea
pk
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

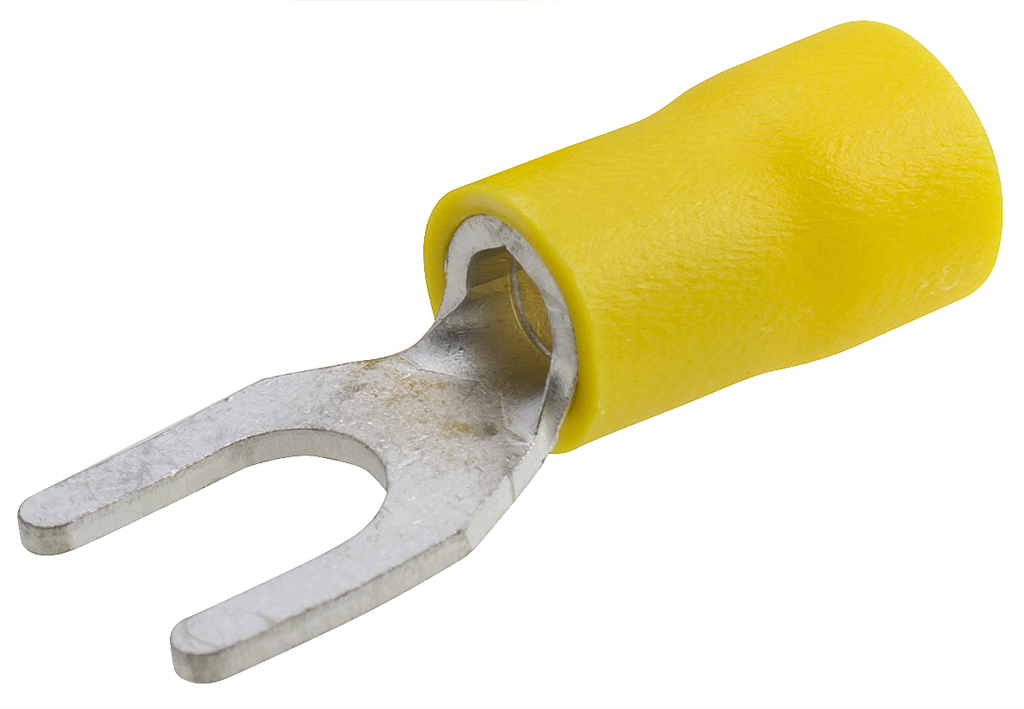

ILSCON Spade Terminal, Compression connection, Copper material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size #10 in, UL, Copper Primary Conductor 18 Str - 22 Str and 18 Sol - 22 Sol, 1 conductors, Vinyl insulation, Dimensions 3.5 in x 1.21 in x 2.88 in, rated for 600 V, die color code Red, uses Die Set A for installation, primary color(s) Silver, tongue type Spade, die index A,

Technical Information

Applications
Spade Terminal
Barrel Type
Brazed
Cable Size
AL (Primary, run, main, line):NA
Color Coding
Red
Conductor Material
Copper
Conductor Size
22-18 AWG
Connection Type
Compression
Insulation Material
Vinyl
Material
Copper
Number of Conductors
1
Number of Holes
1 Hole
Size
L:3.5;W:1.21;H:2.88 IN
Standard
CSA,E2186,UL
Stud Size
#10
TC Connection
Compression
Temperature Rating
75 degrees C
Type
Standard, Solderless, Non Disconnect, Compression
Voltage
600 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCON

General Product Info

12-Digit UPC
783669216141
Color
Red
Construction Type
Brazed
Finish
Electro-Tin Plated
GTiN
00783669216141
Product UPC
78366921614
Weight
0.180 lb

Dimensions

Height
2.88 Inch
Length
0.827 Inch
Width
0.374 in
