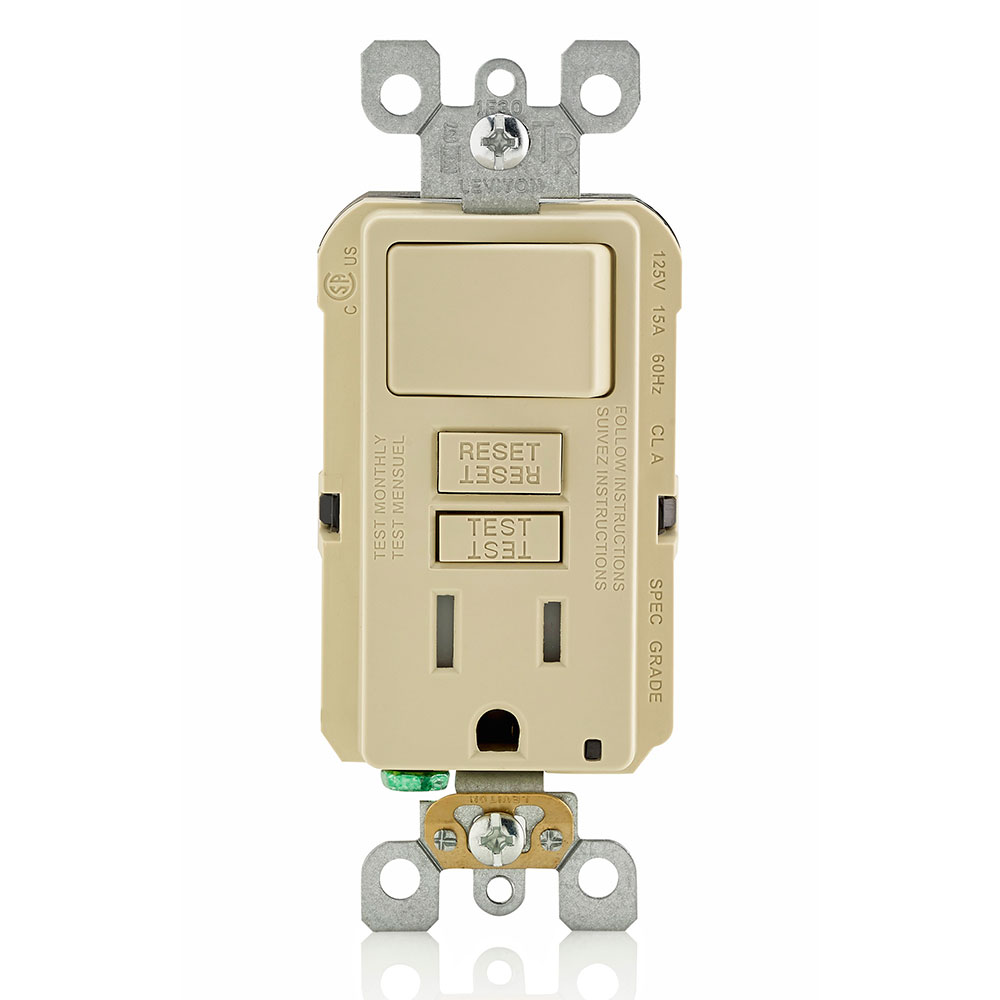

Product image for LEV GFSW1-I IV COMB SW ST TR GFCI R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV GFSW1-I IV COMB SW ST TR GFCI R

Manufacturer: Leviton Mfg Co | Catalog # GFSW1-I | Cooper Electric Part # 1104125
$84.20/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
3 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Brochure

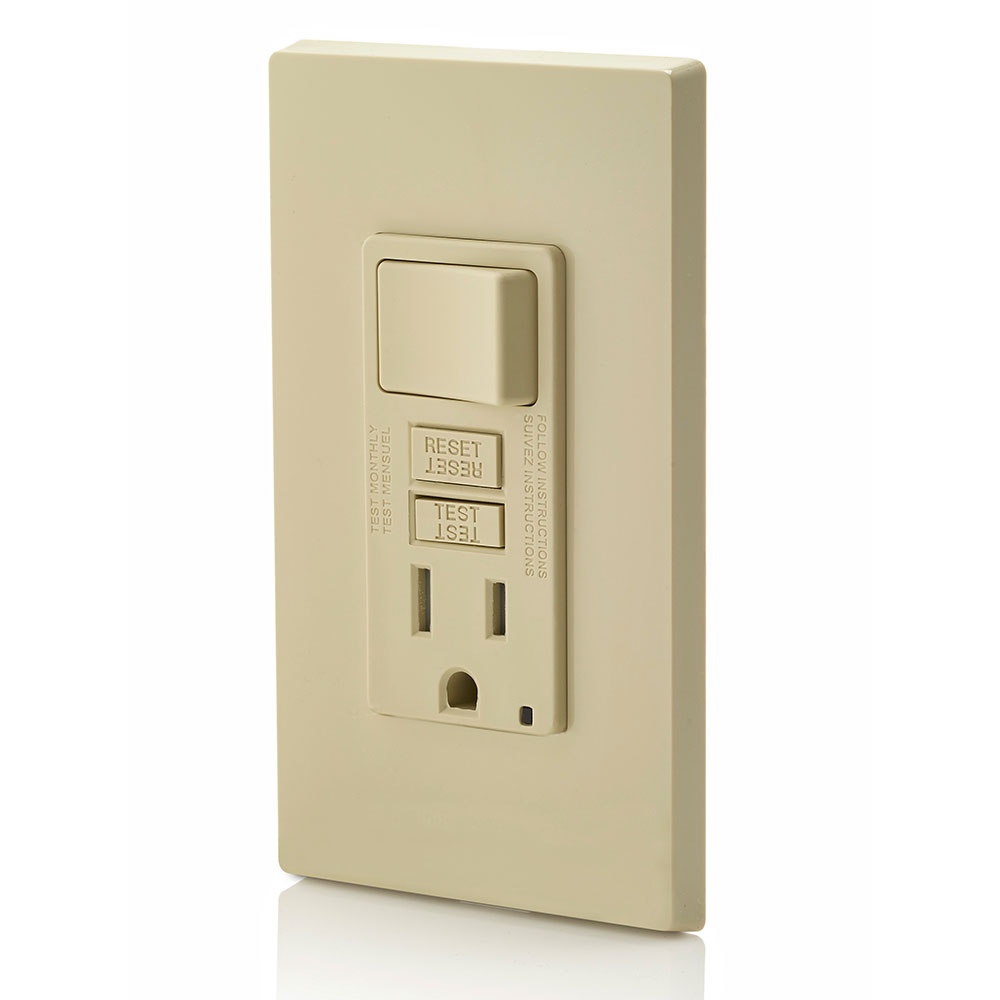

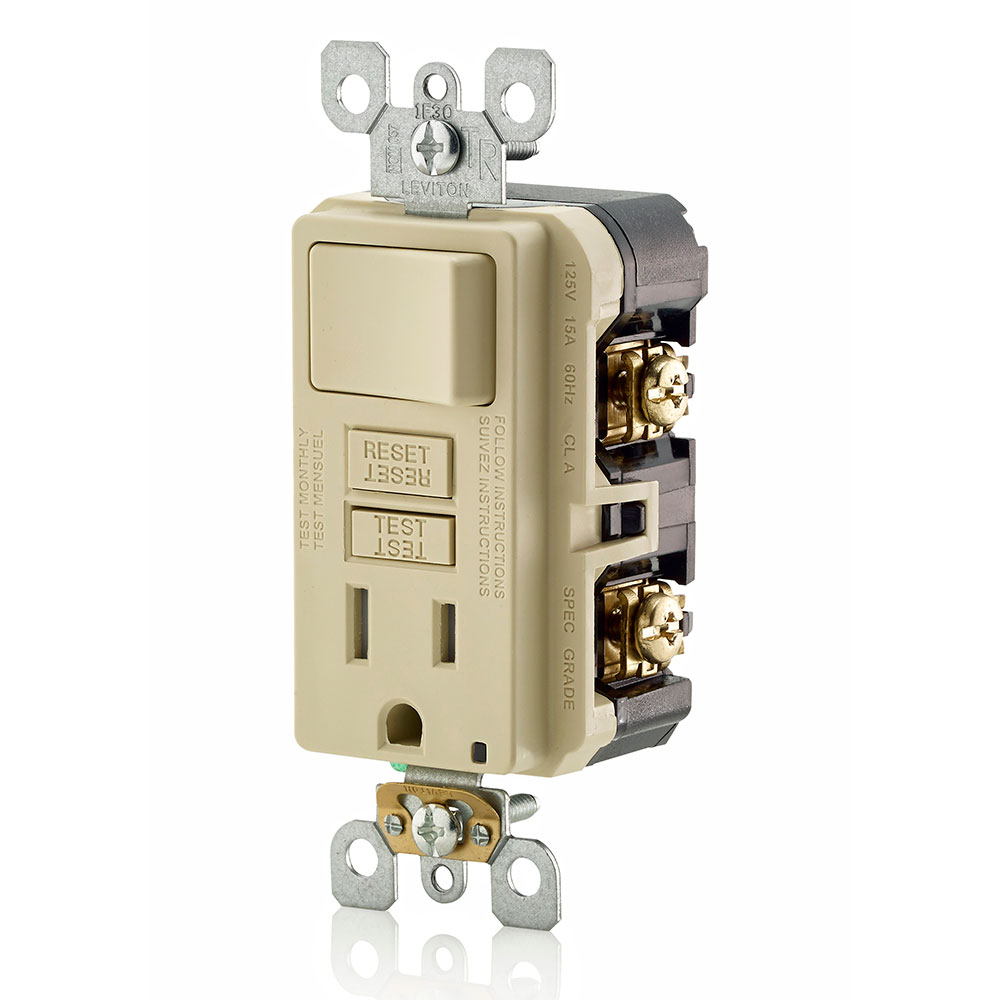

SmartlockPro Slim GFCI Combination Switch. Tamper-Resistant Receptacle with LED Indicator. 15 Amp, 125 Volt. Switch 1800 Watts, 120V AC. Monochromatic, Back and Side Wired, Wallplate/Faceplate Sold Separately, Self-Grounding Clip Included - Ivory

Technical Information

Amperage
15 Amp
Applications
Commercial use
Body Material
Polycarbonate,Polycarbonate,Polycarbonate
Dielectric
1250 V
Face Material
Thermoplastic,Thermoplastic,Thermoplastic
Grade
Commercial,Commercial,Residential,Residential
Material
Polycarbonate
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
66 degrees C
Short Circuit Current
10 kA
Standard
CSA,UL
Temperature Rating
-35 degrees C to 66 degrees C
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Tamper-Resistant
Voltage
125 Volt
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477714744
Color
Ivory
GTiN
00078477714744
Product UPC
07847771474

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Certifications
CSA,CSA
Country of Origin
China
Patents
  • CA2621644
  • CA2624409
  • CA2730014
  • MX302458
  • MX308495
  • MX344697
  • US10483066
  • US11349293
  • US11456138
  • US11831139
  • US7355117
  • US7697252
  • US7820909
  • US8242362
  • US8587914
  • US8599522
  • US8944859
  • US9053886
  • US9276393
Features

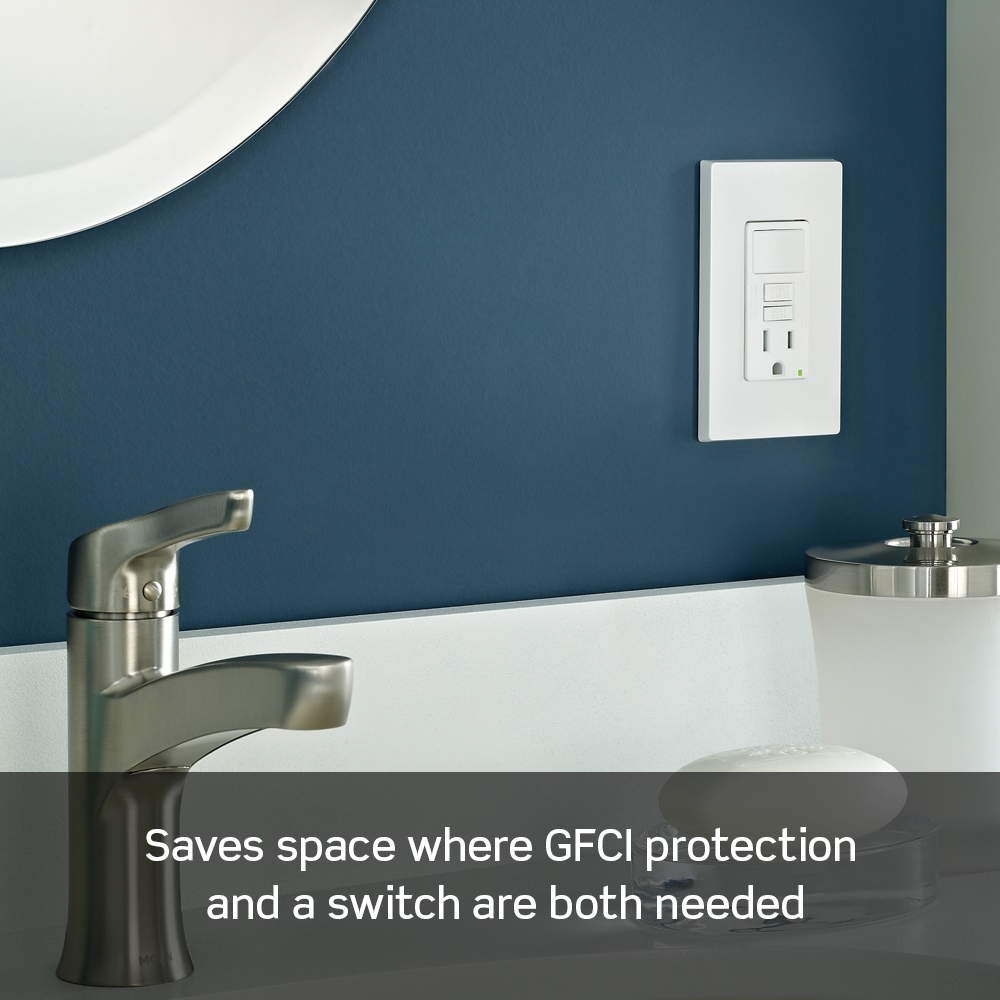

  • Single receptacle GFCI with switch saves space and adds convenience.
  • Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
  • On initial power up, tests the GFCI within 3 seconds
  • Auto-monitoring exceeds the UL requirement
  • Auto adapts and shifts to more frequent testing if potential problem is detected
  • Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
  • Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
  • Electronics are designed to minimize any false triggers

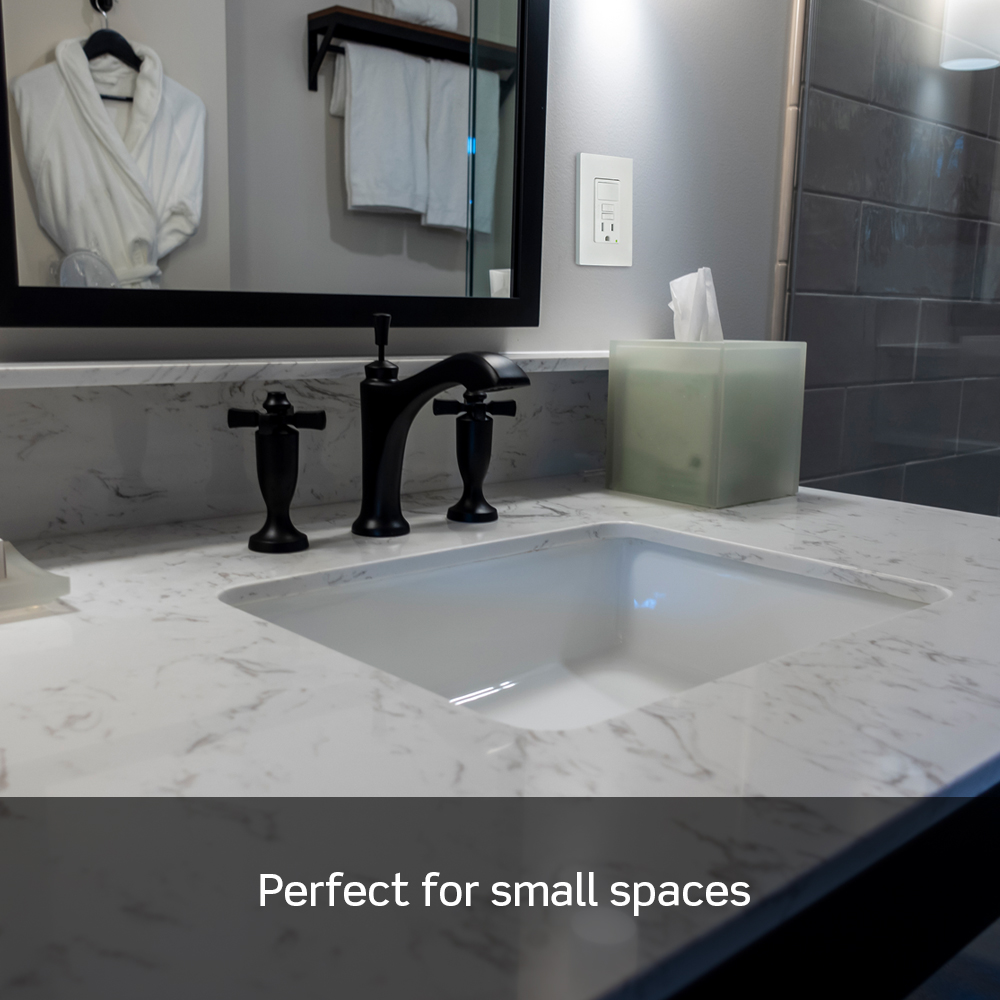

  • Reduced depth makes it easier to install in any electrical box, even shallow ones.
  • Terminals allow for easy wiring options back and side wire capable.
  • External back wire clamps provide visual indication of proper wire seating.
  • Withstands high torque and resists wire pullout.
  • Standard brass self-grounding clip.
  • Trip threshold meets or exceeds UL requirements for tripping time.
  • Improved immunity to high-frequency noise reduces nuisance tripping.
  • Advanced electronics design provides superior resistance to electrical surges and over-voltages.
  • Compatible with all Decora devices and wallplates; available in select Decora colors.
  • Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Levitons patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
NEMA
  • 5-15R
Color Variations
  • Light Almond
