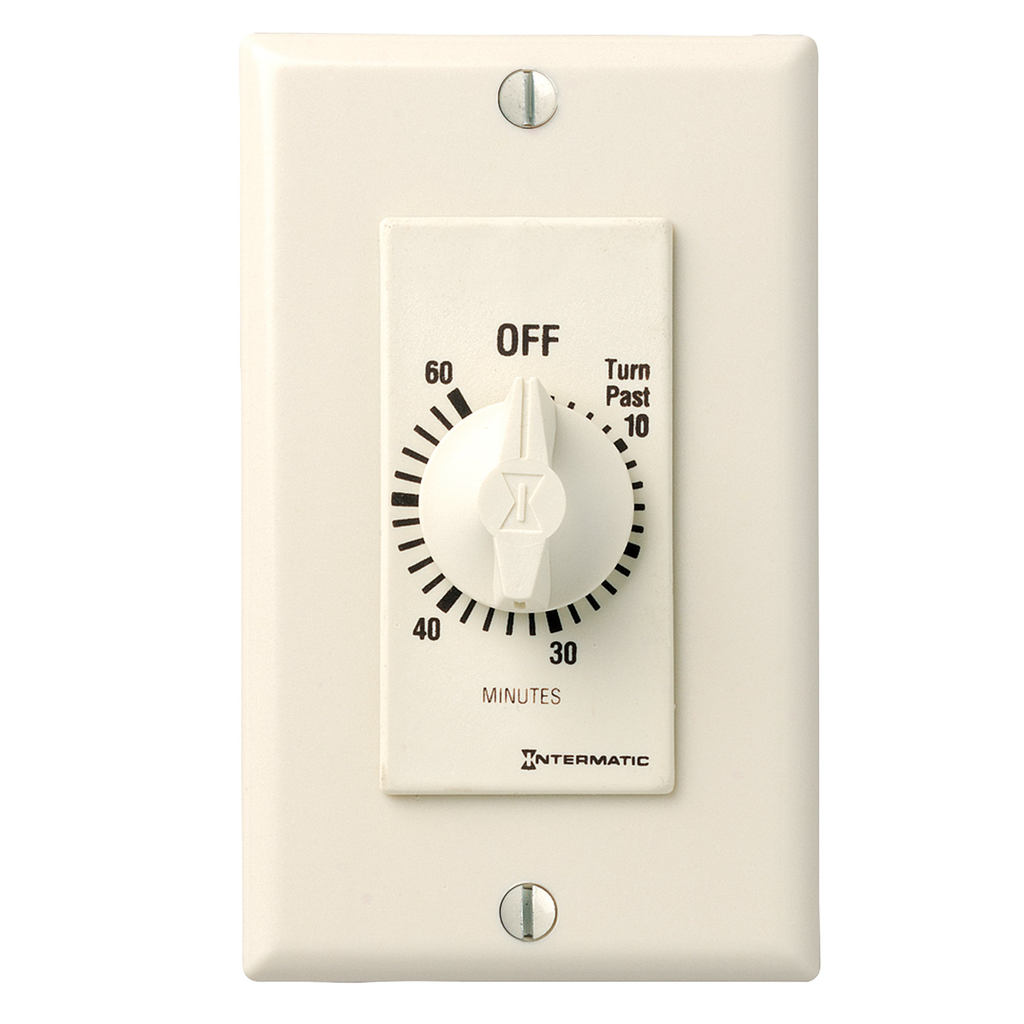

Product image for Intermatic FD60MAC 60 Minute 125 to 277 VAC 60 Hz SPST Almond Countdown Timer
Email

Intermatic FD60MAC 60 Minute 125 to 277 VAC 60 Hz SPST Almond Countdown Timer

Manufacturer: Intermatic, Inc | Catalog # FD60MAC | Cooper Electric Part # 110407
$79.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
For Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Connection Type
Teeter Type
Contact Configuration
1 NO
Contact Rating
7 A at 125 VAC Tungsten, 20 A at 125 VAC Resistive, 10 A at 250/277 VAC Resistive
Frequency
50/60 Hz
Input Voltage
125-277 V
Max Operating Temperature
120 degrees F
Min Operating Temperature
4 degrees C
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
104 degrees F
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,UL Listed,UL Recognized
Switch Type
SPST
TC Connection
Teeter Type
Temperature Rating
-40 to 104 degrees F
Type
Auto-Off, Decorator, Mechanical, Spring Wound
Voltage
125-277 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275072930
Color
Almond
GTiN
00078275072930
Product UPC
07827507293
Weight
0.249 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Tunisia
Features
  • 60-minute timer
  • SPST (Single-Pole Single-Throw)
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Breaks circuit at end of timing cycle
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required
