Ocal LB87-G 3" PVC-Coated Ocal-Blue® LB-Style Conduit Body, Form-7 - Gray

Manufacturer: Ocal / Thomas & Betts | Catalog # LB87-G | Cooper Electric Part # 110402
$1,088.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
PVC Coated Conduit Body, LB Shape, Form 7, Size 3 Inch/78 Metric, Iron, Dark Gray

Technical Information

Applications
Act As Pull Outlets for Conductors Being Installed
Hub Size
3
Material
Iron
Size
3 in
Standard
UL E2969
Trade Size
3 Inch
Type
Form 7 Conduit Body

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal-Blue®

General Product Info

12-Digit UPC
704508391041
Color
Gray
Finish
PVC Double-Coated/Dark Gray
GTiN
00704508391041
Product UPC
70450839104

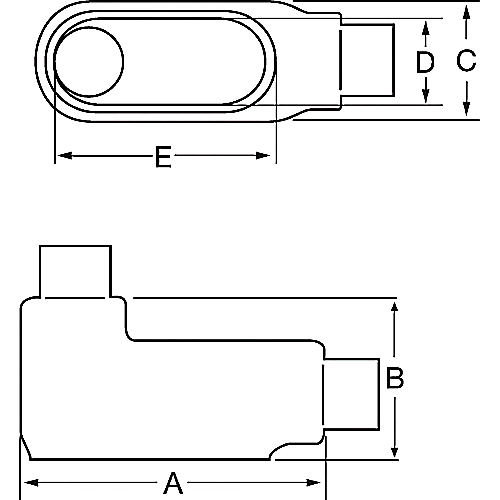

Dimensions

Height
5.95 Inch
Length
10.55 Inch
Width
4.25 in
Certifications
  • UL
  • CSA
Application
  • Connect conduit sections
  • Provide for access to conductors for maintenance and future system changes
  • Make 90° bends in conduit runs
  • Provide taps for branch conduit runs
  • Act as pull outlets for conductors being installed
  • Provide openings for making splices and taps in conductors
Features
  • Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
  • The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied
  • A minimum of .040 in. PVC coating is bonded to the exterior.
  • Ocal pressure-sealing sleeves on all threaded hubs.
  • Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
Notes
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
  • Dimensional values are of uncoated conduit bodies.
