Blackburn WR969 Compression Connector

Manufacturer: Blackburn / Thomas & Betts | Catalog # WR969 | Cooper Electric Part # 1103945
$106.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure

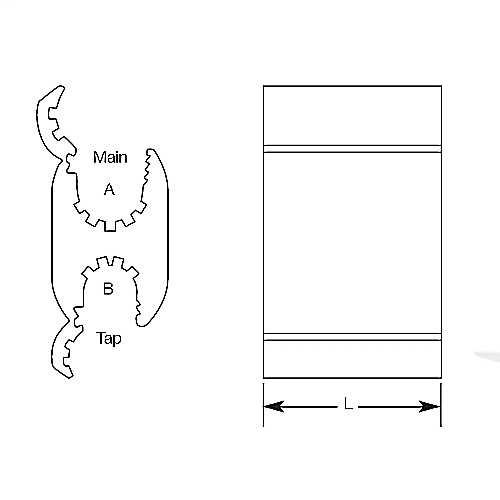

Aluminum Wide Range H-Type Compression Connector Main: 795 26/7-477 30/7 ACSR, 900-600 Str., Tap: 556 18/1-300 ACSR, 600-336 Str., Die: R OR Z. 4-3/4 inch

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Connection Type
Compression
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
Length 4-3/4 inch
TC Connection
Compression
Temperature Rating
Up to 90 degrees C
Type
Wide-Range
Wire Size
Main: 795 (26/7)-477 (30/7) ACSR or 900-600 STR kcmil ; Tap: 556 (18/1)-300 ACSR or 600-336 STR kcmil

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786103690
GTiN
00783786103690
Product UPC
78378610369
Used With
Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors

Dimensions

Length
4-3/4 Inch
Features
  • Enables excellent connector contact without distorting the conductor's shape.
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
  • Fold-in tabs provide positive tab interlock as tool closes.
  • RUS accepted and complies with ANSI C119.4
Notes
  • All die connectors are for use with hydraulic tools, 10-ton and greater.
