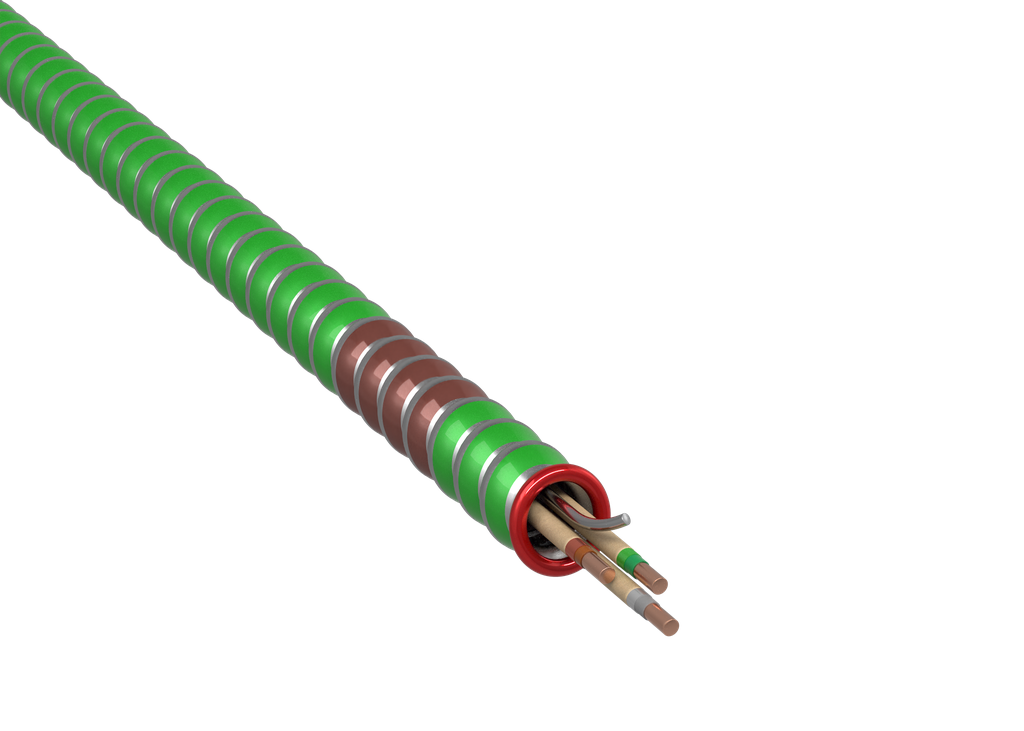

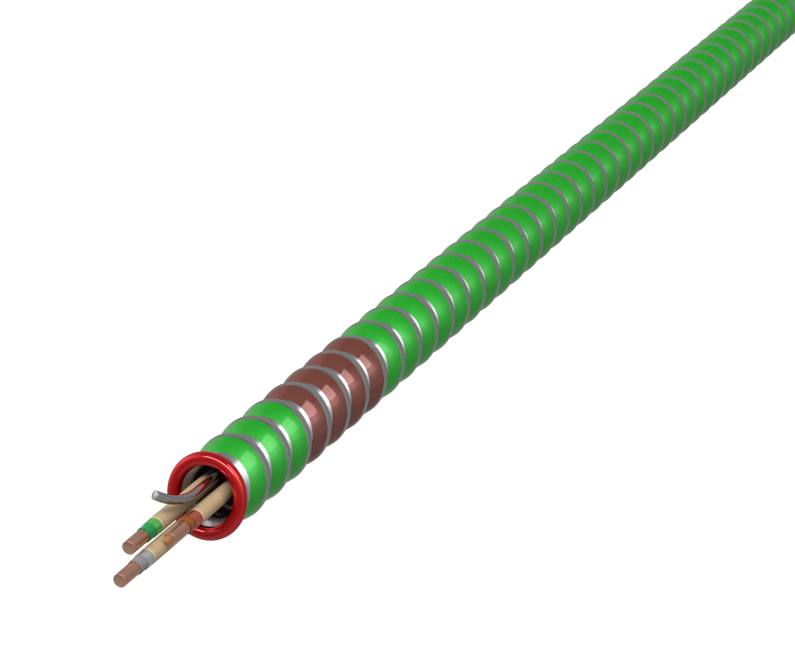

Product image for AFC 2804G60-01 HCF Cable 12/2 Solid (Brown,Gray) with Ground Type-AC Aluminum Healthcare Facilities Cable, 480Y/277V, 1000ft Reel
Image thumbnail 0
Image thumbnail 1
Email

AFC 2804G60-01 HCF Cable 12/2 Solid (Brown,Gray) with Ground Type-AC Aluminum Healthcare Facilities Cable, 480Y/277V, 1000ft Reel

Manufacturer: AFC Cable Systems | Catalog # 2804G60-01 | Cooper Electric Part # 1103014
$1,614.45/m (1000 ft)
ft
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
HCF-Lite®, which features interlocked aluminum armor, is a derivative of Type AC Cable. It was introduced in the 1980s to support NEC Article 517 on Healthcare Facilities in "areas of patient care". This branch circuit cable is offered in 12 or 10 AWG THHN in 2, 3, or 4 conductors and was one of the original ColorSpec® ID cables. The green interlocked armor became the recognized standard for healthcare facilities' cables, where redundant grounding is required. These 600V cables with THHN conductors have two paths to ground, which is a requirement of NEC 517. The outer metal jacket, in combination with a 16AWG, serves as one equipment grounding means, while the second is an additional full-size green copper ground.

Technical Information

Conductor Size
12 AWG
Number of Conductors
2
Type
Healthcare Facilities Cable With Ground And Neutral

Manufacturer Information

Brand
Kaf-Tech
Sub Brand
HCF-Lite®

General Product Info

12-Digit UPC
077680162267
GTiN
00077680162267
Product UPC
07768016226

Dimensions

Height
10 Inch
Length
24 Foot
Width
24.000 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Cable System. Technically equivalent and economically superior to traditional raceway and wire installations.
  • ColorSpec® ID/Color-Trak ID System. Green aluminum armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type.
  • Grounding. Full-size green insulated copper grounding conductor plus armor/bond wire combination provides redundant ground or isolated grounding capability.
  • RoHS Compliant. Aluminum armored cables are RoHS compliant
  • Buy American. Aluminum armored cables are Buy American compliant
  • Made in USA of US and/or imported materials
