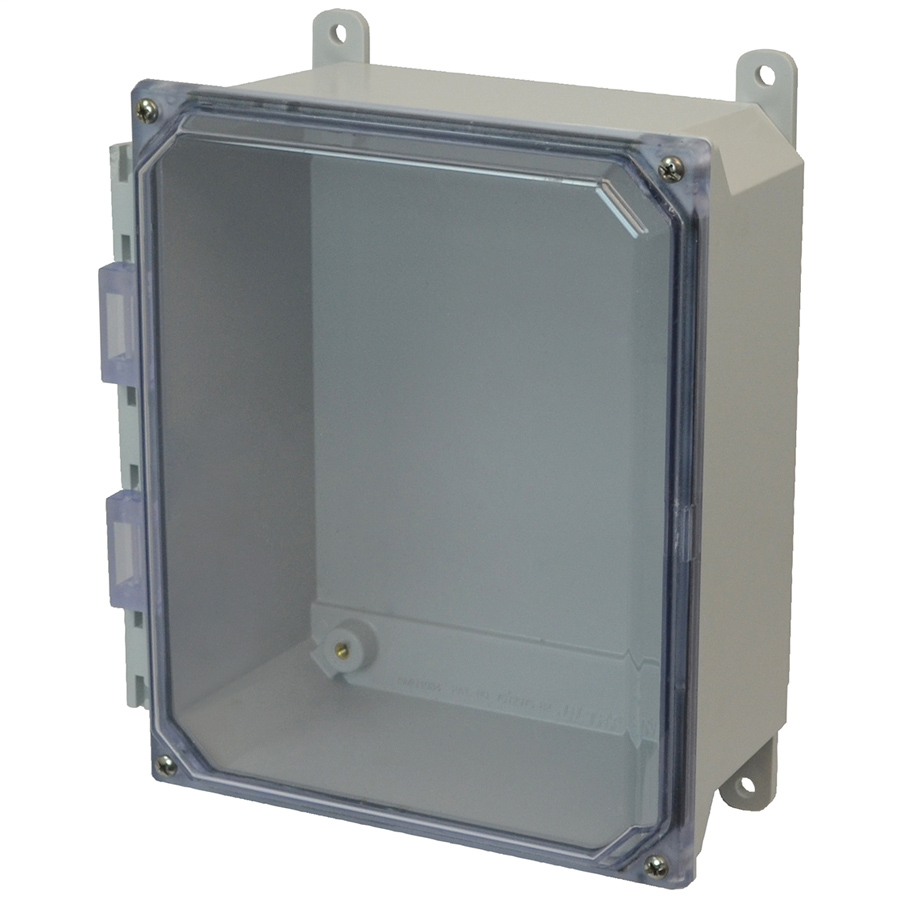

Product image for ALLIED AMU1084CC 10X8X4 UL ENCL CLE
Email

ALLIED AMU1084CC 10X8X4 UL ENCL CLE

Manufacturer: Allied Moulded Products | Catalog # AMU1084CC | Cooper Electric Part # 1102234
$78.04/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Safety Data Sheet
Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Lift-off Type: screw down, flush-aesthetically pleasing and clear cover design with closed cell neoprene cord gasket Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:ULTRAGUARD - Fiberglass reinforced polyester - thermoset Size:A=10.05", B=8.27", C=4.13" plus .87" raised cover, usable depth=4.11" Color:RAL 7035 - Gray with clear cover Mounting:Nonmetal feet fastened to back side brass insert

Technical Information

Applications
Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Insulation Type
Non-Conductive,Non-Metallic
Material
Fiberglass
Mounting Type
Nonmetal Feet Fastened To Back Side Brass Insert
Size
A=10.05", B=8.27", C=4.13" plus .87" raised cover, usable depth=4.11"
Standard
UL 508A - Industrial Control Panels
Type
NEMA 4X Type Nonmetallic Enclosure

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
ULTRALINE

General Product Info

12-Digit UPC
085339959168
Color
Colorless/Light Gray
Construction
Compression molded box with injection molded cover
GTiN
00085339959168
Product UPC
08533995916

Dimensions

Depth
4 Inch
Height
10.05 Inch
Width
8.27 in

Certifications and Compliance

Buy American Compliant
Y
  • PG108
  • PL108
  • AM1084W
  • HFPU108
  • AMHS075
  • AMPOLEMNT8
  • PLA108
  • AMU1084
  • AMU1084CCT
  • AMP1084CC
  • PF108
Additional Materials
  • Plated carbon steel internal hardware
  • Brass inserts
  • Polycarbonate mounting brackets
  • Polyurethane (FIP) Formed-In-Place gasket system
  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.
  • Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
  • RoHS directive
  • EN / IEC 60204-1 and 60529 Type IP66 and units rated 6P are IP68 (submersible up to 24 hours at a depth of 6 feet/1.8 meters)
  • Complies with:
  • UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. E120175
  • CSA-C22.2 No. 14 and CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13; File No. 89590
