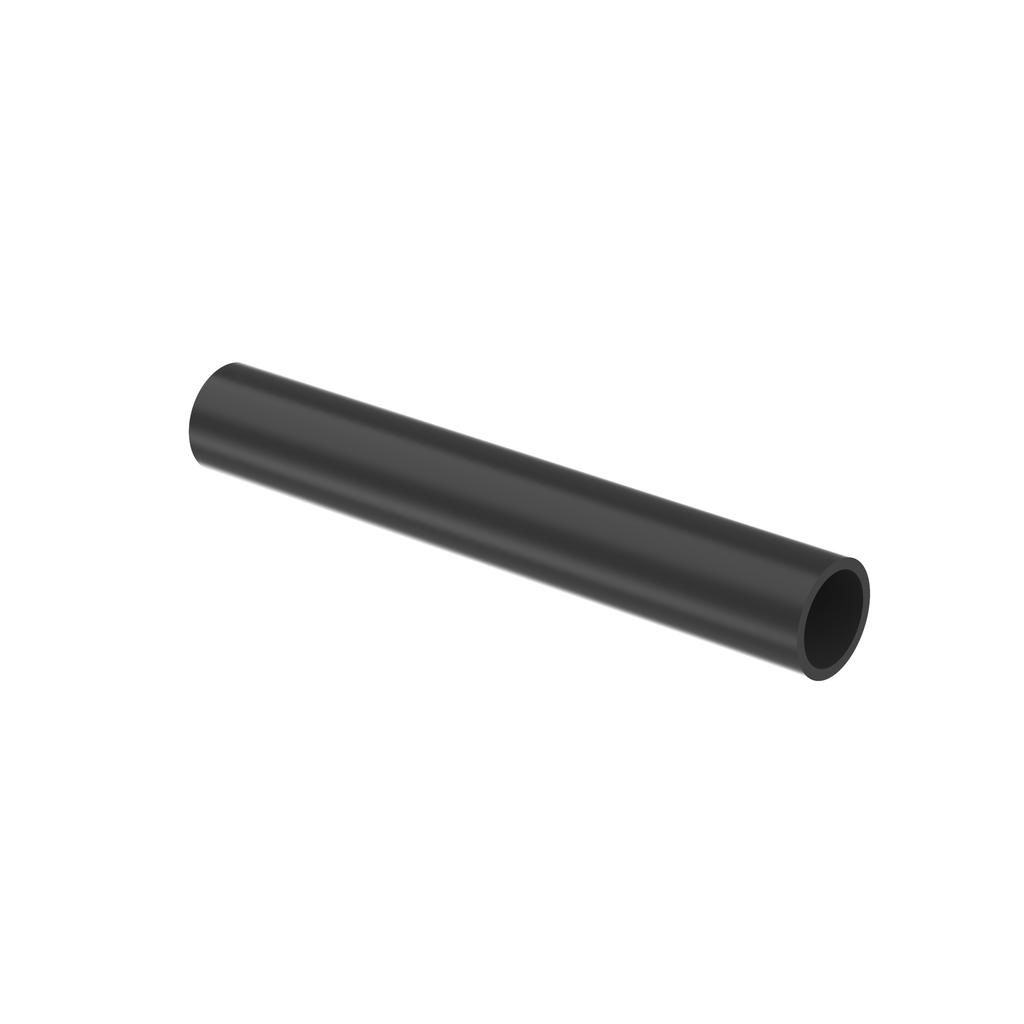

Panduit HST0.8-6-XY .8 Inch (20.3mm) Thick Wall Adhesive Lined Heat Shrink Tubing

Manufacturer: Panduit Corp | Catalog # HST0.8-6-XY | Cooper Electric Part # 1101808
$14.04/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Engineering Drawing

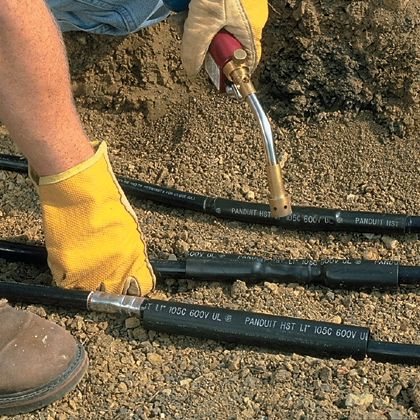

The HST0.8-6-XY Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90°C continuous use. Shrink ratio: 3:1. Temperature range: -67°F to 230°F (-55°C to 110°C). Cross-linked Polyolefin. 0.75" (19.1 mm) dia. 6.0" (152.4 mm) length. Color Black. 10 per package.

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
Yes
Type
Heat Shrink Tubing

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Wet-Shrink™

General Product Info

12-Digit UPC
074983107254
Color
Black,Orange,White
GTiN
00074983107254
Product UPC
07498310725

Dimensions

Inside Diameter
5.6 mm
Outside Diameter
19.1 mm
Overall Length
0.5 ft
Thickness
2.3 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Canada
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL224 VW-1; UL/UR: E342365; UL Listed: E173379; CSA: 244528; Mil Spec: AS23053
