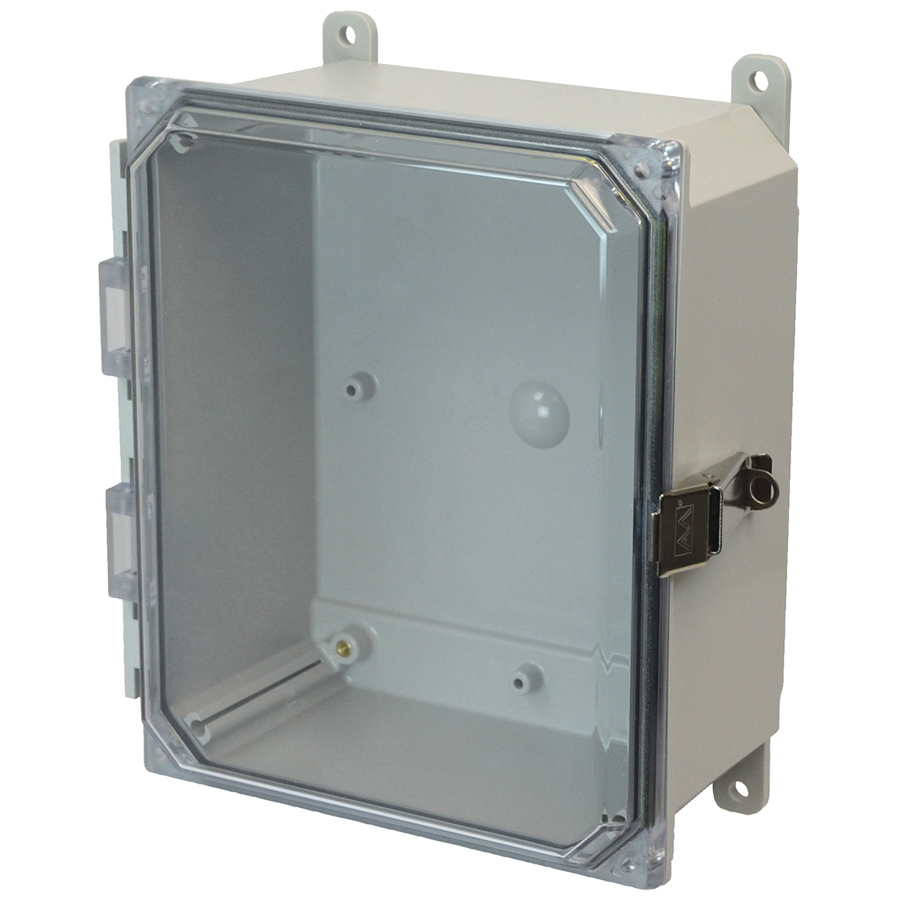

Product image for ALLIED AMP1084CCL 10x8x4 PC ENCL CL
Email

ALLIED AMP1084CCL 10x8x4 PC ENCL CL

Manufacturer: Allied Moulded Products | Catalog # AMP1084CCL | Cooper Electric Part # 1101458
$70.52/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Safety Data Sheet
Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Hinged snap latch Type:, flush-aesthetically pleasing and clear cover design with FIP formed-in-place polyurethane gasket Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:Polycarbonate - thermoplastic Size:A=9.93", B=8.15", C=3.98" plus .87" raised cover, usable depth=4.18" Color:RAL 7035 - Gray with clear cover Mounting:Nonmetal feet fastened to back side brass insert

Technical Information

Applications
Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Insulation Type
Nonconductive Nonmetallic
Material
Polycarbonate
Mounting Type
Nonmetal Feet Fastened To Back Side Brass Insert
Size
A=9.93", B=8.15", C=3.98" plus .87" raised cover, usable depth=4.18"
Type
NEMA 4X Type Nonmetallic Enclosure

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
POLYLINE

General Product Info

12-Digit UPC
085339993186
Color
Colorless/Light Gray
Construction
Injection molded
GTiN
00085339993186
Product UPC
08533999318

Dimensions

Depth
3.94 Inch
Height
9.93 Inch
Width
8.15 in

Certifications and Compliance

Buy American Compliant
Y
Additional Materials
  • 316 stainless steel external hardware (hinges, latches and fasteners)
  • Polyurethane (FIP) Formed-In-Place gasket system
  • Plated carbon steel internal hardware
  • Polycarbonate mounting brackets
  • Brass inserts
  • EN / IEC 60204-1 and 60529 Type IP66
  • RoHS directive
  • CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. 89590
  • UL 508A, UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13; File No. E120175
  • Complies with:
  • AMU1084CCL
  • HFPP108
  • PL108
  • PLA108
  • AM1084L
  • PLPVC108
  • AMPOLEMNT8
  • AMHS075
  • AMP1084CCNL
  • AM1084LW
  • Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.
  • Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus nonmetallic mounting brackets and a gasket system encased in a continuous channel on the cover.
