Hubbell HBL2836 Locking Flanged-Receptacle, 30A 3PH 347/600V, L23-30R

Manufacturer: Hubbell Wiring Device | Catalog # HBL2836 | Cooper Electric Part # 1100858
$152.69/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, L23-30R, Screw Terminal, Black

Technical Information

Amperage
30 Amp
Applications
Insulgrip
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw
NEMA

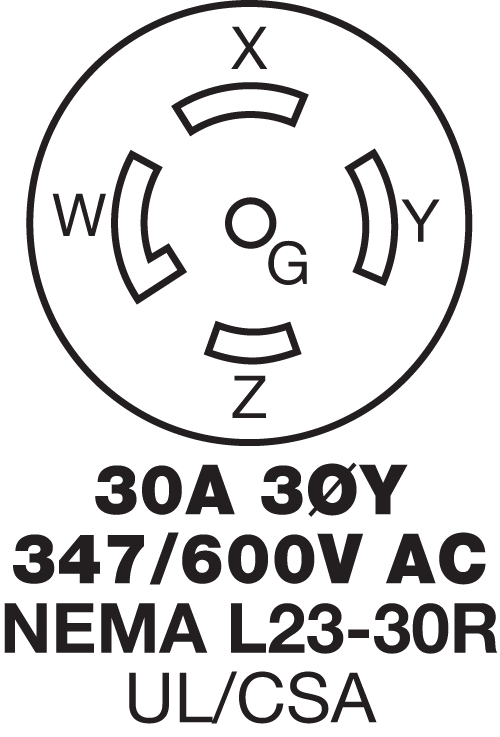

L23-30R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Single
Voltage
347/600 Volt
Wattage
18000 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585039763
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585039763
Product UPC
78358503976
Weight
0.4 lb

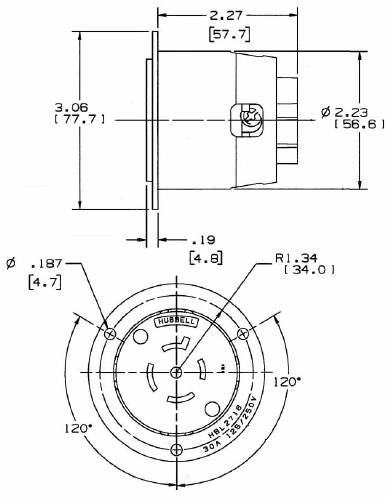

Dimensions

Height
2.27 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
