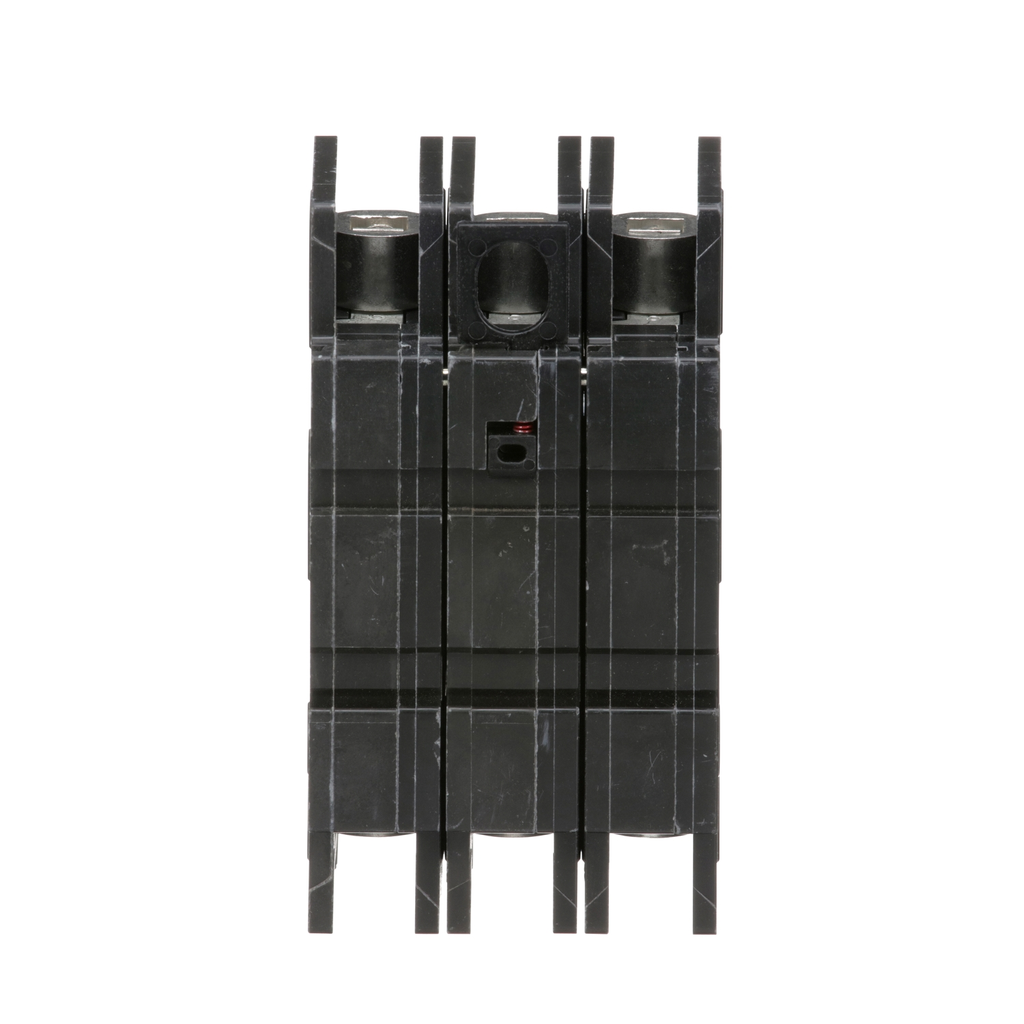

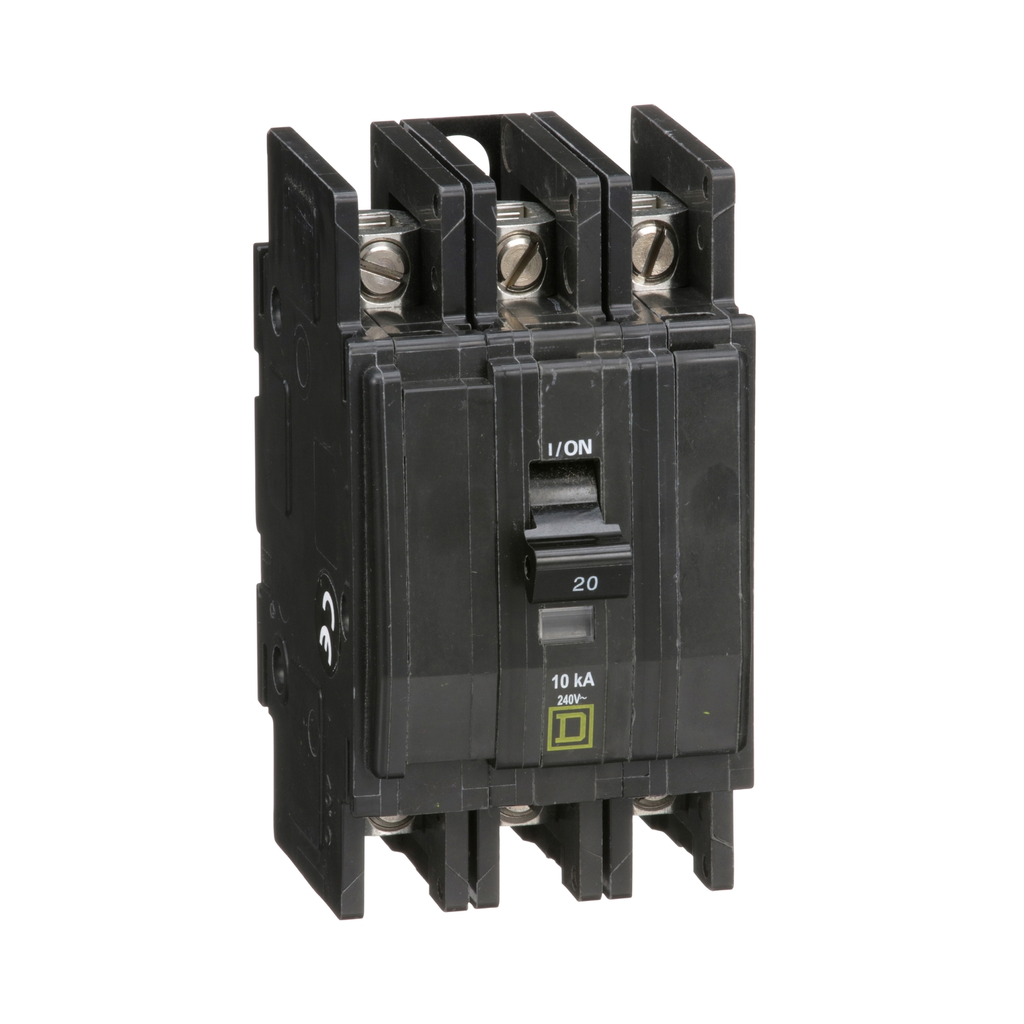

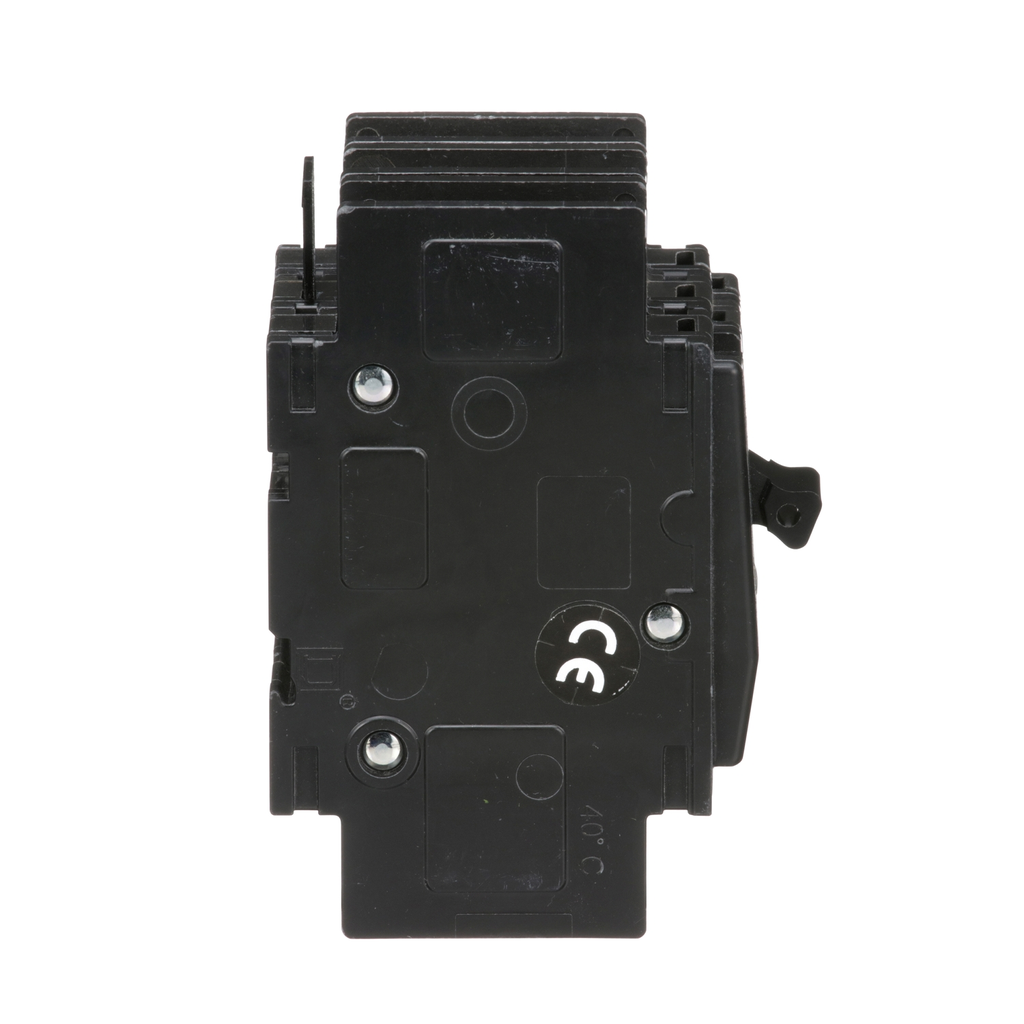

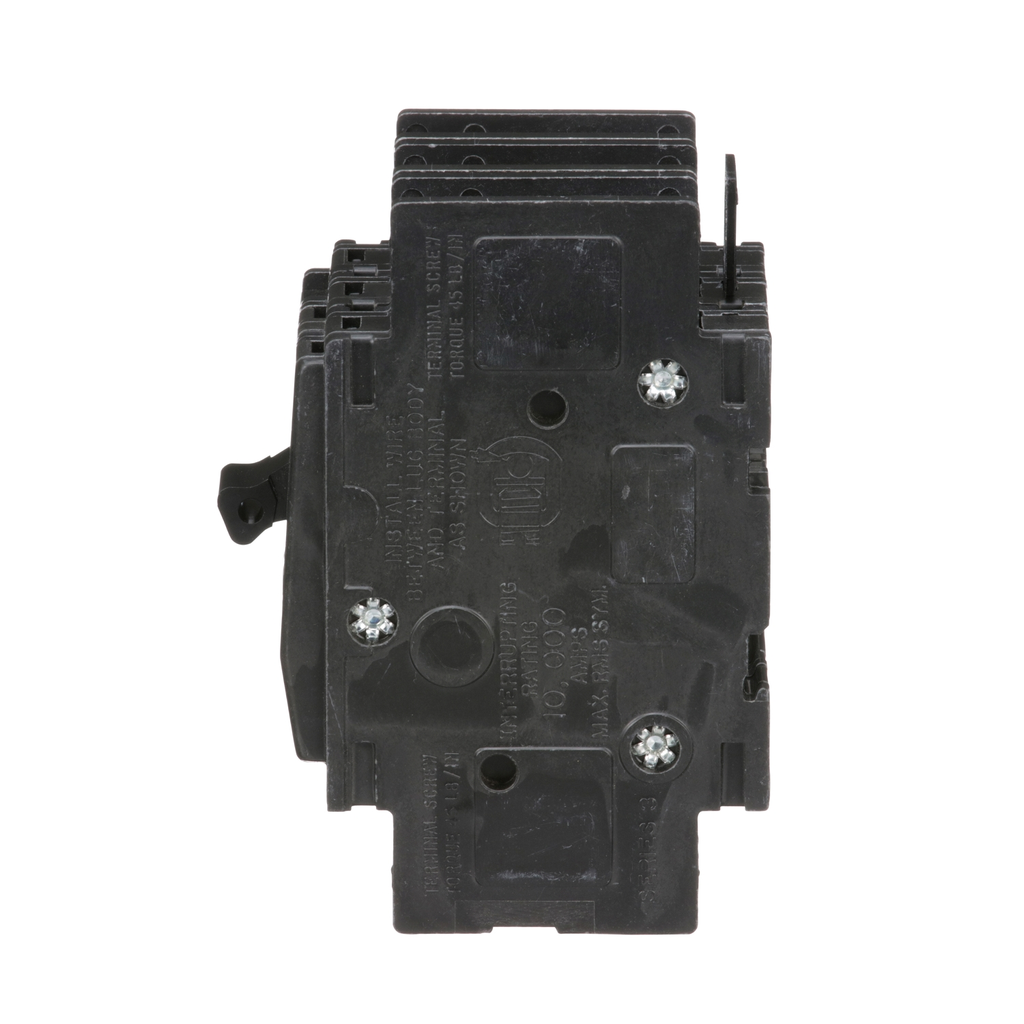

Square D QOU320 Miniature Circuit Breaker 20A 240V

Manufacturer: Square-D / Schneider | Catalog # QOU320 | Cooper Electric Part # 110048
$307.80/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
3 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO™ and QOU Miniature Circuit Breakers, QOU320, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.

Technical Information

Amperage
20 Amp
Applications
HACR AND SWITCHING DUTY RATED
Circuit Breaker Type
Standard
Interrupt Rating
10 kAIC
Line Rated Current
20 A
Mounting Type
Unit Mount
Number of Poles
3 Pole
Short Circuit Current
10 kA
TC Connection
LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU)
Type
MINIATURE CIRCUIT BREAKER
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
QOU

General Product Info

12-Digit UPC
785901418894
GTiN
00785901418894
Product UPC
78590141889

Dimensions

Depth
2.95 Inch
Height
4.05 Inch
Length
2.95 Inch
Warranty Length
18 mth
Width
2.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications
CSA,IEC,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0001246466
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.091220921
Electrical Connection
  • slotted box lugs, line side
  • slotted box lugs, load side
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 3 kg CO2 eq.
  • 2.9157691494
Accessories
  • QOU2PAFLA
  • HLO1
  • BCV
  • QOUECB
  • QOULFSC1B
  • QOU2DTILA
  • QOUMFS1
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 17 kg CO2 eq.
  • 17.3042434783
Accessory Products
  • QOU2PAFLA
  • HLO1
  • BCV
  • QOUECB
  • QOULFSC1B
  • QOU2DTILA
  • QOUMFS1
Persona Type Ids
  • EU
  • LC
  • OM
Carbon Footprint Of The Distribution Phase A4
  • 0.0643826963
  • 0.1 kg CO2 eq.
Tightening Torque
  • 45-45 lbf.in (AWG 14...AWG 2)
AWG Gauge
  • AWG 14...AWG 2 aluminium/copper
UE Rated Operational Voltage
  • 120/240 V AC
  • 240 V AC
  • 120 V AC
  • 48 V DC
