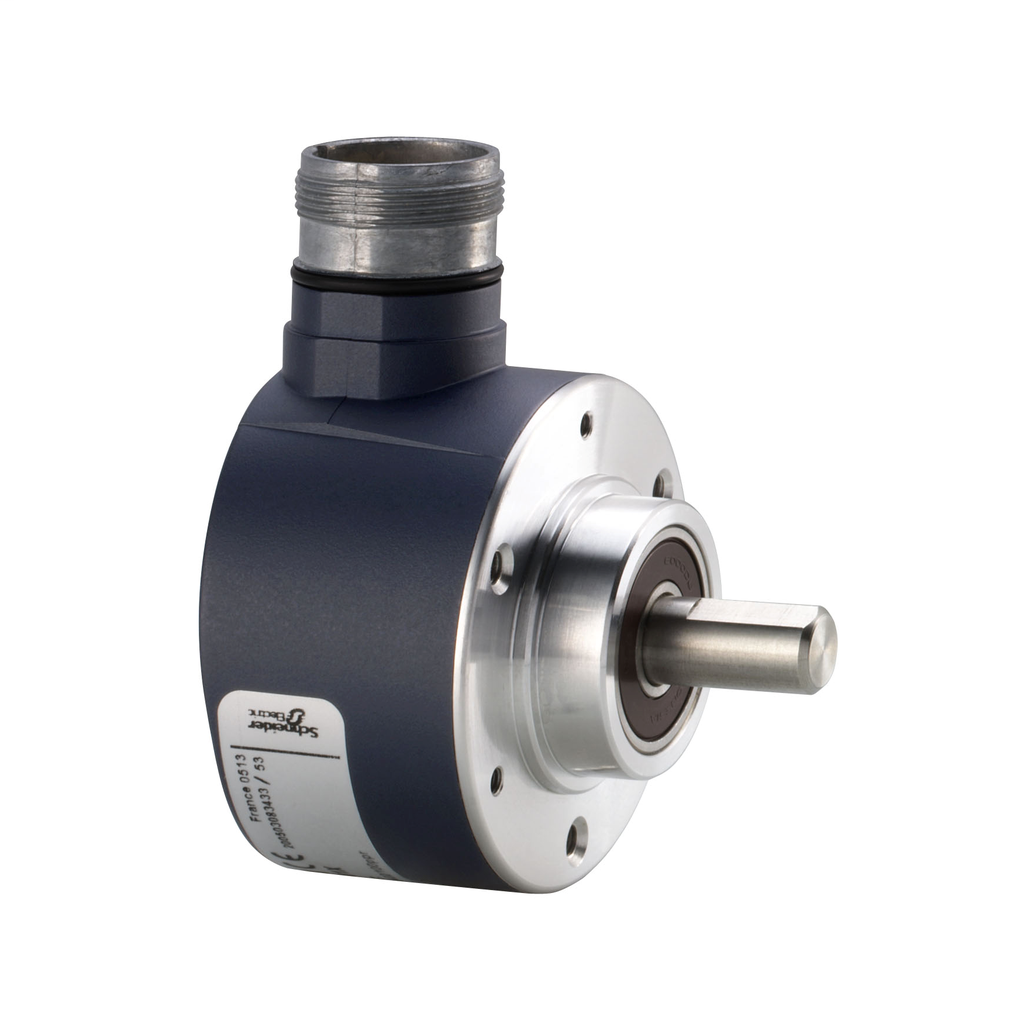

Product image for SQD XCC1510PS25Y INCREMENTAL ENCODE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

SQD XCC1510PS25Y INCREMENTAL ENCODE

Manufacturer: Square-D / Schneider | Catalog # XCC1510PS25Y | Cooper Electric Part # 1098146
$477.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
incremental encoder . 58 - solid shaft 10 mm - 2500 points - push-pull

Technical Information

Current
0-75 mA
Enclosure
ZAMAK
Enclosure Material
Zamak
Number of Channels
3
Operating Temperature
-30-100 Adegrees C
Output
DRIVER PUSH-PULL,LOW LEVEL: 0.5 V MAXIMUM 20 MA-HIGH LEVEL: V SUPPLY - 2.5 V MINIMUM 20 MA,TYPE Y
Power Supply
0...75 MA NO-LOAD,5...30 V DC
Size
58 MM
TC Connection
1 MALE CONNECTOR M23 RADIAL 12 PINS
Type
INCREMENTAL ENCODER

Manufacturer Information

Brand
Osisense
Sub Brand
XCC

General Product Info

12-Digit UPC
785901972822
GTiN
03389119014717
Product UPC
78590197282
Weight
1.03 lb

Dimensions

Diameter
2.28 Inch
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Country of Origin
France
