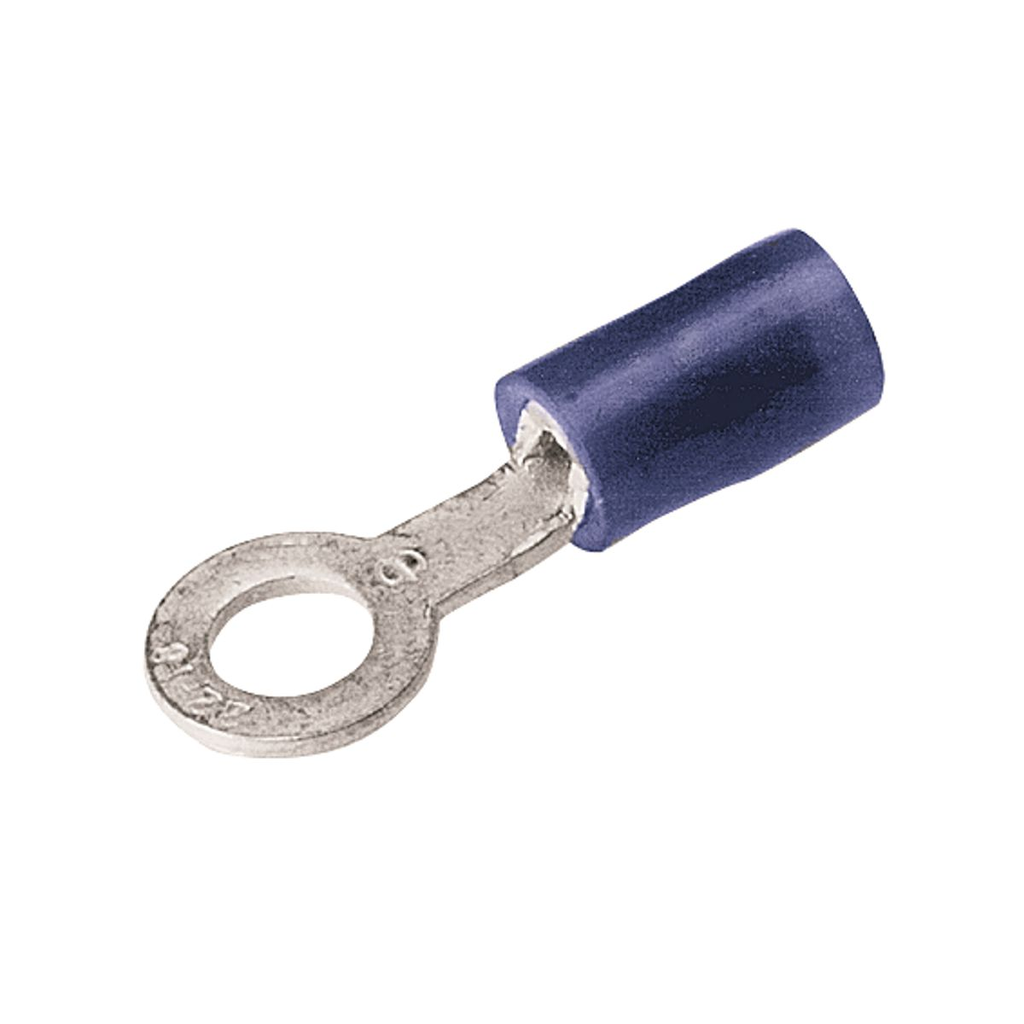

Product image for Burndy TN148 Copper Terminal, Ring Tongue, 16-14 AWG, #6-#8 Stud, 600 Volts Max, Nylon Insulated, Funnel Entry, Tin Plated
Image thumbnail 0
Image thumbnail 1
Email

Burndy TN148 Copper Terminal, Ring Tongue, 16-14 AWG, #6-#8 Stud, 600 Volts Max, Nylon Insulated, Funnel Entry, Tin Plated

Manufacturer: Burndy | Catalog # TN148 | Cooper Electric Part # 1098002
$1.79 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
Copper Terminal, Ring Tongue, 16-14 AWG, #6-#8 Stud, 600 Volts Max., Nylon Insulated, Funnel Entry, Tin Plated.

Technical Information

Applications
For Heavy Duty Industrial, Utility And Military Power And Control-Circuit Applications
Cable Size
16 - 14 AWG
Color Coding
Blue
Conductor Size
14 AWG
Connection Type
Ring Terminal
Insulation Type
Nylon
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.138-0.164 in
Type
Ring Tongue
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810734483
GTiN
00781810734483
Product UPC
78181073448

Dimensions

Height
0.2 Inch
Length
0.89 Inch
Overall Length
0.89 in
Width
0.31 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Integral one-piece copper barrel / insulation grip and wire strain relief design for improved physical strength characteristics over a multi-piece design
  • Manufactured of pure electrolytic copper for maximum conductivity, low resistance and ductility for excellent crimp forming properties
  • Brazed seam provides a stronger barrel design, minimizes any possible splitting and eliminates folding
  • Deep inner barrel serrations and smooth funnel entry for excellent conductivity and pullout strength values along with the easy wire insertion
  • Insulation is locked in place, will not twist off, maintaining proper dielectric values
  • Electro-tin plated for durable, long lasting resistance to identification
  • Ring tongue qrovides a secure termination under the screw head that cannot be removed without complete removal of the screw, allowing two or more terminals to be stacked on a common stud
