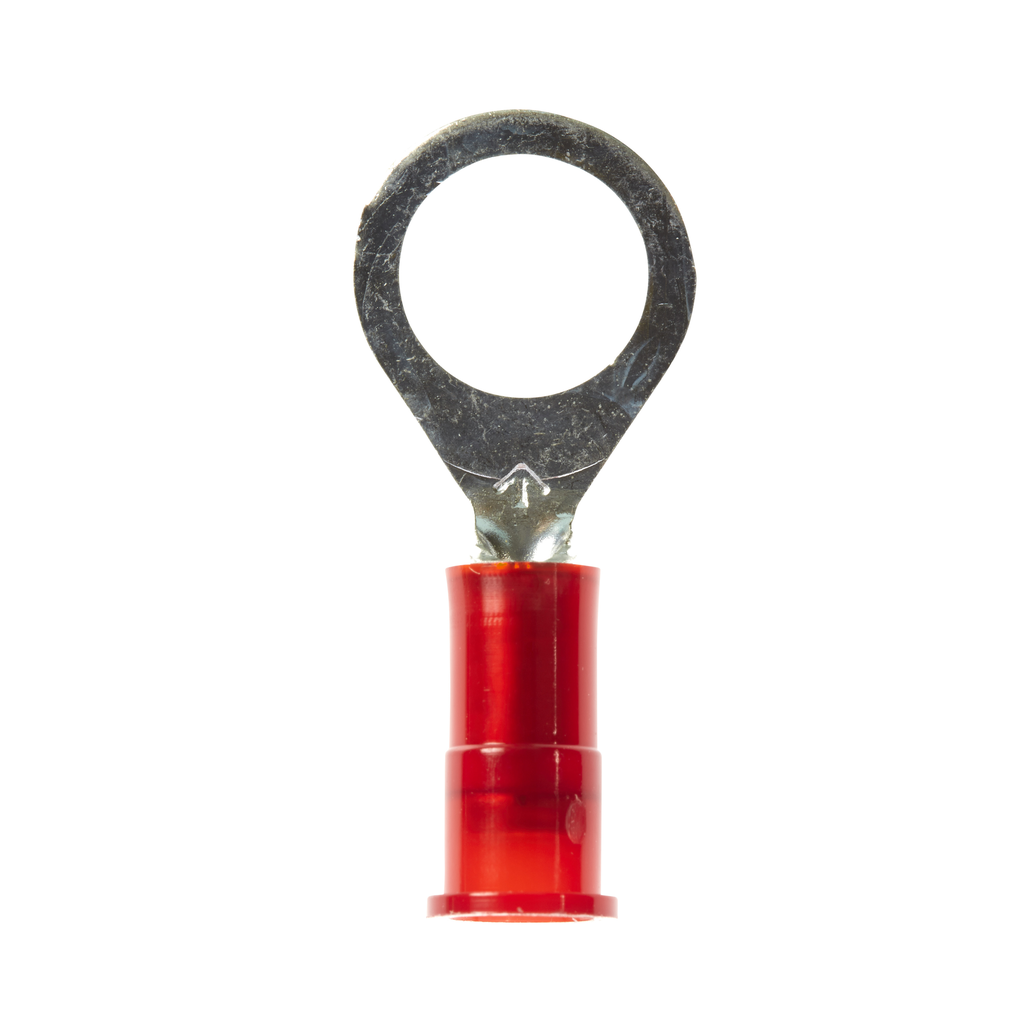

Product image for 3M MNG18-610RX 100/Bottle Nylon Insulated Ring
Email

3M MNG18-610RX 100/Bottle Nylon Insulated Ring

Manufacturer: 3M | Catalog # 7000133411 | Cooper Electric Part # 1097523
$1.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Multi-Stud Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Butted
Conductor Size
22-18 AWG
Insulation Material
Nylon With Insulation Grip
Material
Nylon
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Stud Size
6 to 10
Terminal Size
22 - 18 AWG
Terminal Style
Multi-Stud
Terminal Type
Ring
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589588
Color
Red
GTiN
00051128589588
Product UPC
05112858958

Dimensions

Length
1 Inch
Overall Length
1.0 in
Thickness
0.03 in
Width
0.34 in

Certifications and Compliance

Country of Origin
USA
Features
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Multi-stud style ring tongue fits around multiple stud sizes
  • Stud size #6 to #10
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
