3M 7010398985 3M™ Heat Shrink Heavy

Manufacturer: 3M | Catalog # 7010398985 | Cooper Electric Part # 1097328

$49.59/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
47 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800 is a cross-linked polyolefin fabricated heavy wall sleeve that comes standard with a factory-applied adhesive/sealant. This tubing can be direct buried and is submersible. Used for indoor, outdoor or overhead applications, this heat-shrink cable sleeve is used for insulating secondary splices, relocation of service, dig-in repairs and sheath repairs. This heavy-wall tubing is CSA Certified, UL Listed and UL 486D Standard, providing quality. Enjoy a reliable application across uses, such as with listed, crimp-type, splice connectors. With a shrink ratio as high as 4:1, this heat shrink sleeve provides great electrical insulation and works at a minimum shrink temperature of 250 .F (121 .C). Supplied tubing lengths of 4 feet and less shall be adhesive lined. 3M™ Heat Shrink Heavy-Wall Cable Sleeve ITCSN-0800 is essential for a variety of electrical applications.

Technical Information

Dielectric Strength
500
Material
Polyolefin
Max Operating Temperature
110.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
3 to 1
Splice Type
Heat Shrink
Tensile Strength
2400 lb/in
Type
Heavy Wall
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128600771
Color
Black
GTiN
00051128600771
Product UPC
05112860077

Dimensions

Length
6 Inch
Overall Length
6.0 in

Certifications and Compliance

Country of Origin
USA
Features

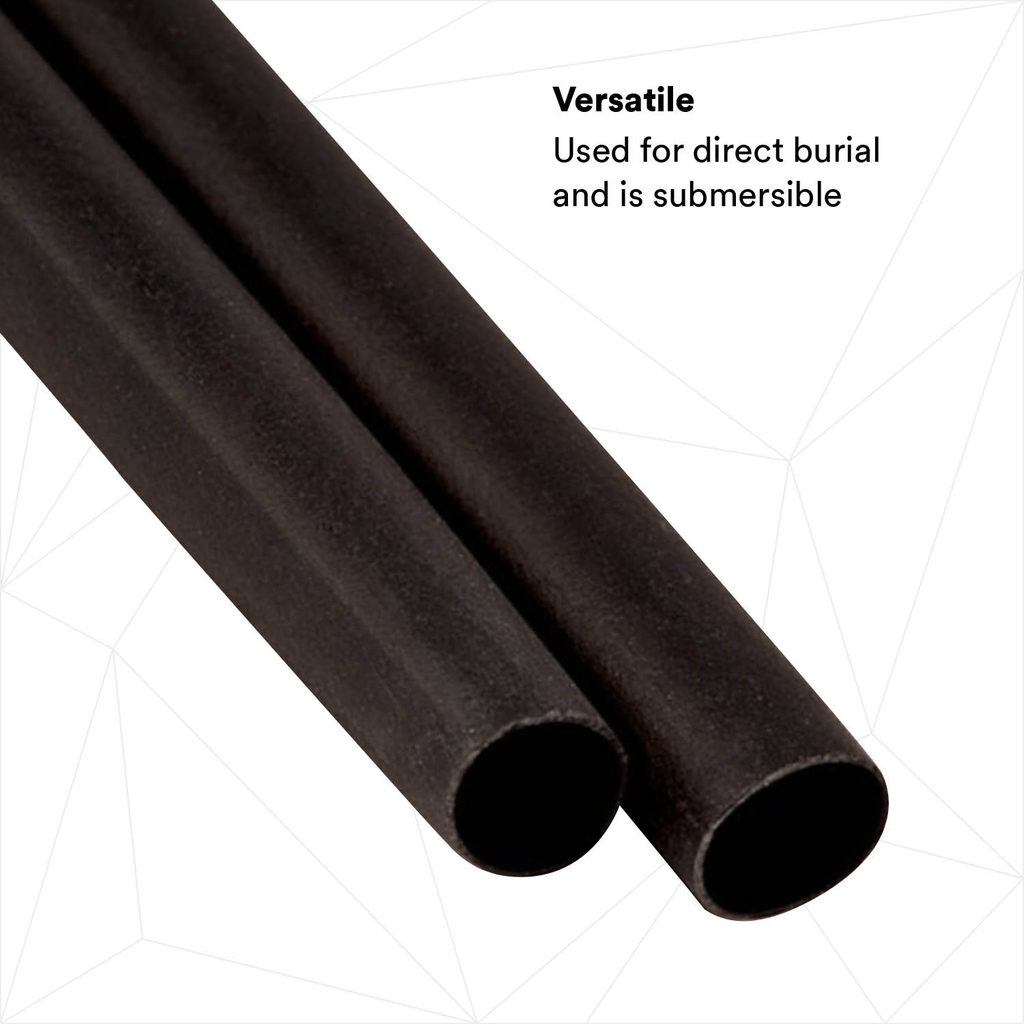

  • VERSATILE: Used for direct burial and is submersible
  • CONNECTORS AND TERMINALS: Use with listed, crimp-type and splice connectors
  • UL LISTED: UL Listed and UL 486D Standard
  • QUALITY STANDARD: CSA Certified
  • HIGH-PERFORMING INSULATION: Offers quality electrical insulation with a shrink ratio as high as 4:1
  • MINIMUM TEMPERATURE: Offers a minimum shrink temperature of 250 °F (121 °C)
