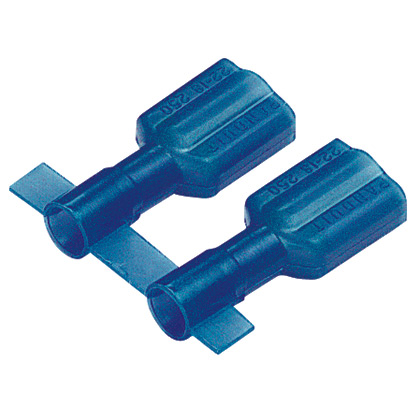

Product image for Panduit DNF14-188FIB-3K Disconnect, Blackue, Nylon, 14-16 AWG, 0.187 x .02" Tab
Email

Panduit DNF14-188FIB-3K Disconnect, Blackue, Nylon, 14-16 AWG, 0.187 x .02" Tab

Manufacturer: Panduit Corp | Catalog # DNF14-188FIB-3K | Cooper Electric Part # 1097053
$542.91/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The vibration resistant female is made of brass and is tin-plated. It is fully insulated in a blue, standard receptacle housing. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000 pieces.

Technical Information

Barrel Type
Butted Seam
Color Coding
Blue
Conductor Size
16-14 AWG
Insulation Material
Nylon
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
Tab Size
0.187 in x 0.02 in
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
Insulated
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
3000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Reel Smart™

General Product Info

12-Digit UPC
074983709793
Color
Blue
Finish
Tin Plated
GTiN
00074983709793
Product UPC
07498370979
UNSPSC
39121409

Dimensions

Height
0.18 Inch
Overall Length
0.78 in
Width
0.29 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
