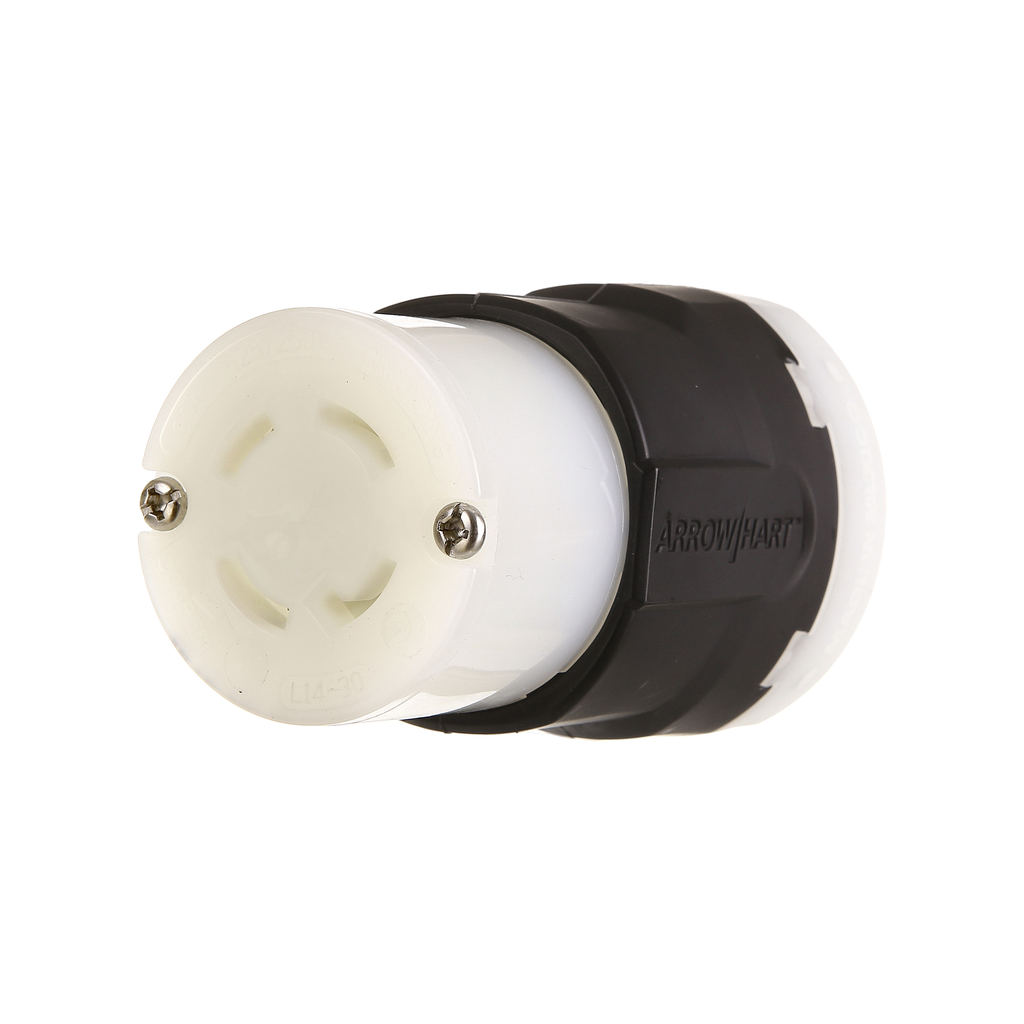

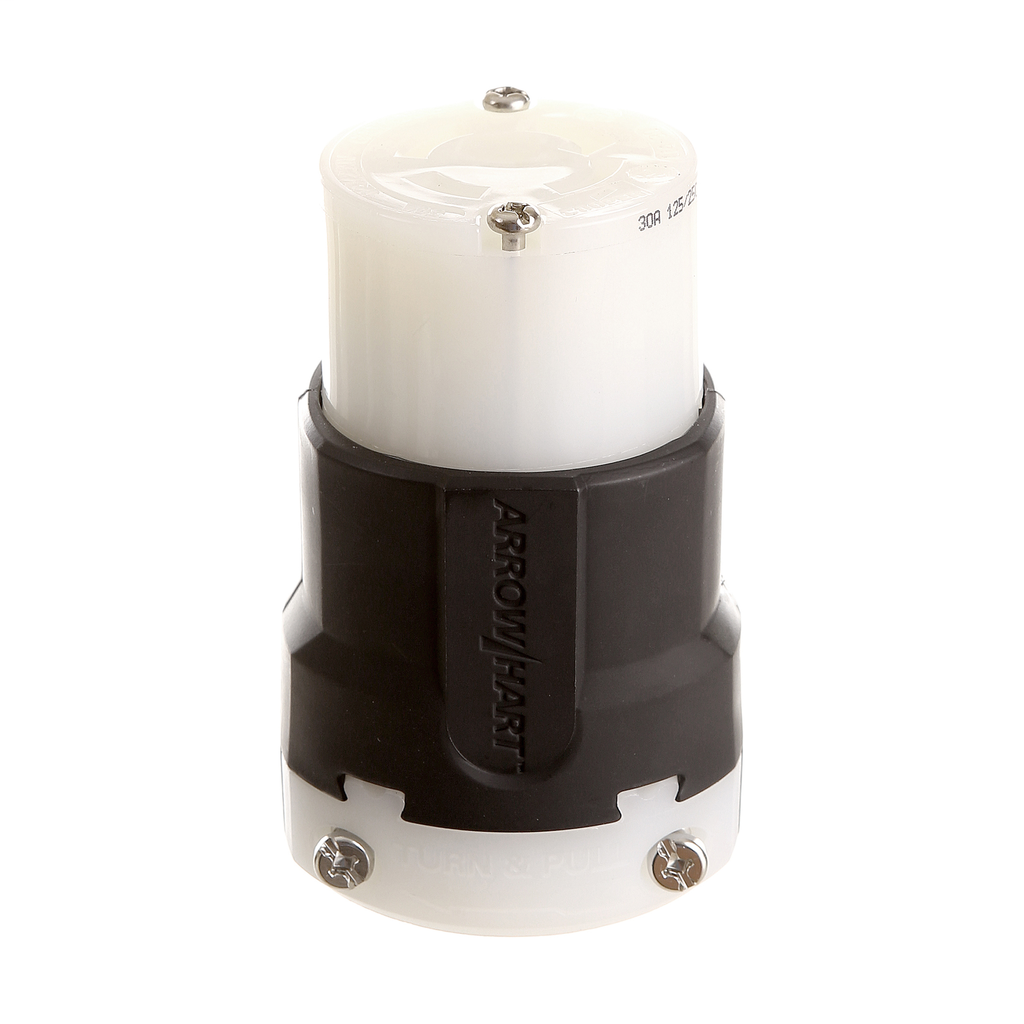

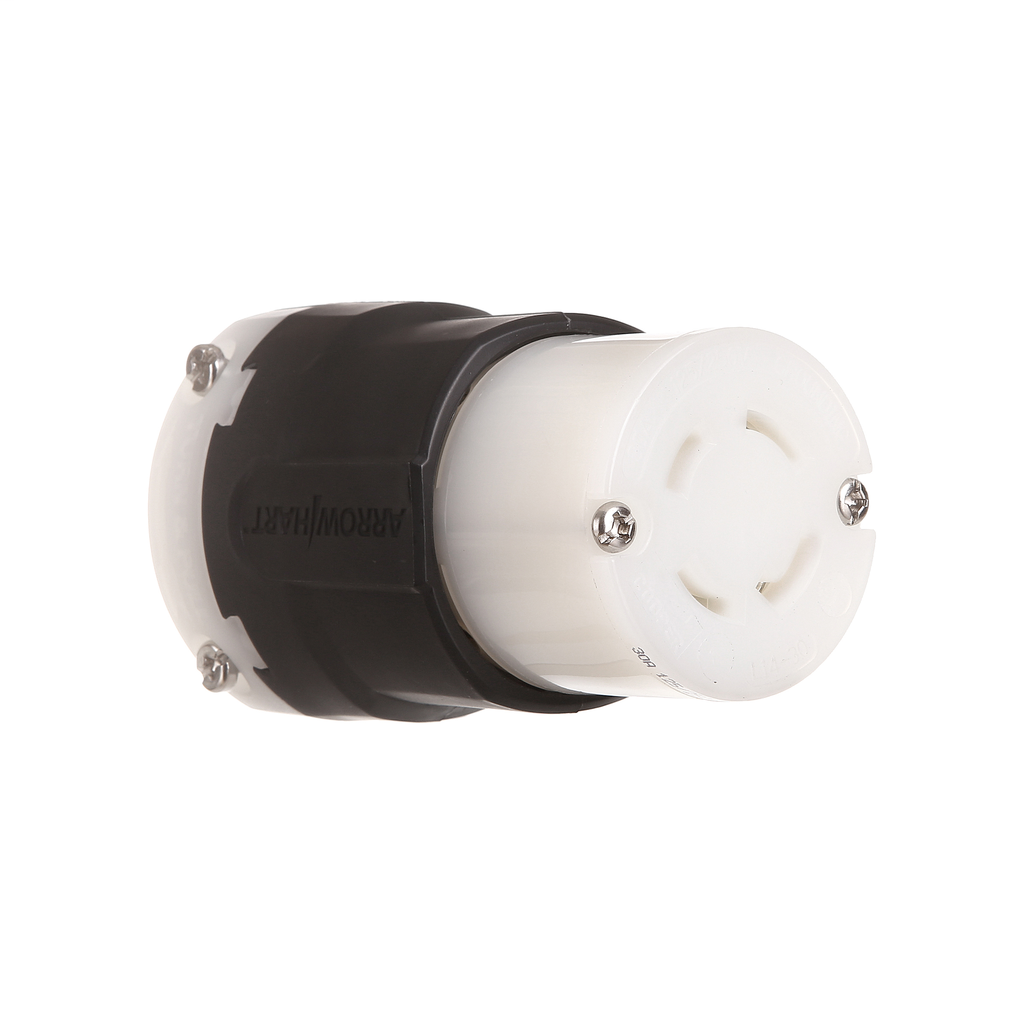

Product image for Arrow Hart Wiring AHL1430C 30 Amp 125/250 VAC 3-Pole 4-Wire NEMA L14-30R Black/White Locking Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Arrow Hart Wiring AHL1430C 30 Amp 125/250 VAC 3-Pole 4-Wire NEMA L14-30R Black/White Locking Connector

Manufacturer: Eaton | Cooper Wiring Device | Catalog # AHL1430C | Cooper Electric Part # 1096721
$114.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Eaton Arrow Hart ultra grip locking connector, #16-8 AWG, 30A, Industrial, 125/250V, Back wiring, Black, white, Ultra grip, L14-30, Three-pole, Four-wire, Nylon

Technical Information

Amperage
30 Amp
Applications
LOCKING DEVICES
Conductor Size
16-8 AWG
Connection Type
Screw
Contact Material
Brass
Cord Range
0.63 - 1.16 in
Grade
Industrial
Grounding
Grounding
Material
Nylon
NEMA
L14-30
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 To 140 degrees F
Size
0.38 - 1.16 in Cord dia
Temperature Rating
-40 degrees C to 60 degrees C
Type
Ultra Grip
Voltage
125/250 Volt
Wire Size
16-12 AWG
Wire Type
Back Wire

Manufacturer Information

Brand
Eaton
Sub Brand
Arrow Hart

General Product Info

12-Digit UPC
032664737947
Color
Black/White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00032664737947
Product UPC
03266473794
Weight
.5 lb

Dimensions

Height
2 Inch
Length
4-1/4 Inch
Width
2 in
