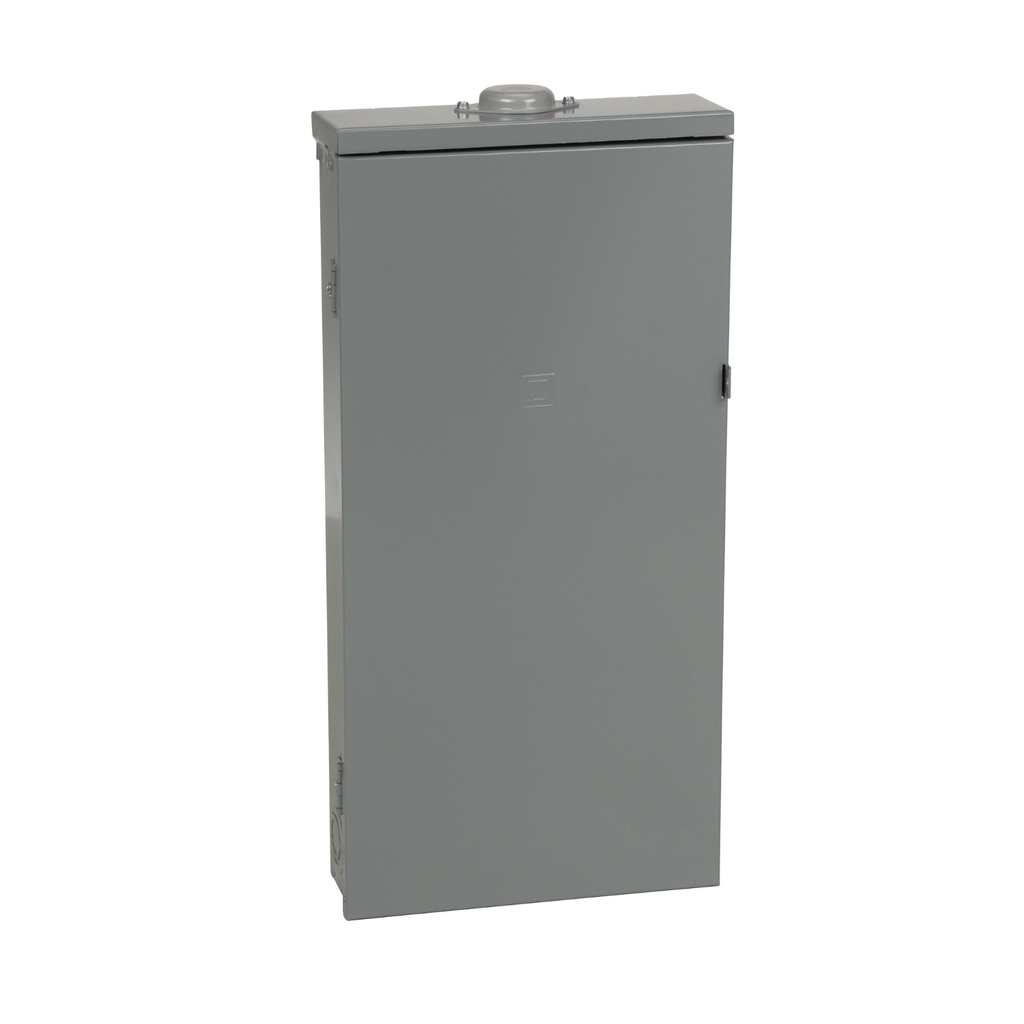

Square D QO130L200PGRB Load Center QO 200A 120/240V 1Ph 30SP NEMA-3R ,Plug-On Neutral

Manufacturer: Square-D / Schneider | Catalog # QO130L200PGRB | Cooper Electric Part # 1095437
$889.00/ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Single Three
Main Breaker Main Lug
0

Not Available for Pickup at Ocean Closes 5:00pm ET
6 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
QO® Circuit Breaker Load Centers, QO130L200PGRB, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

Technical Information

Amperage
200 Amp
Cable Size
AWG 6...250 KCMIL ALUMINIUM/COPPER
Conductor Size
6 AWG-250 kcmil
Cover Type
Surface Cover
Current
200 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Enclosure Type
Weatherproof enclosure
Interrupt Rating
65 kAIC
Line Rated Current
200 A
Material
Tin Plated Copper: Busbar
NEMA Size
3R
Number of Circuits
40
Number of Phases
1,3 Phase
Number of Spaces
30
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
65 kA
Short Circuit Current Ratng
65 kA
Surface Finish
Baked Enamel Gray
Type
LOAD CENTER
Wire Size
AWG 6...250 kcmil aluminium/copper

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901103912
Finish
Baked Enamel
GTiN
00785901103912
Product UPC
78590110391

Dimensions

Height
758 mm
Width
375 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LK100ANCP
  • QO115PCAFIC
  • QO2175SB
  • QOFPCP
  • QORBGK2C
  • PK23GTAL
  • QO120PDFC
  • QO250PSPD
  • HEPD25
  • QO120PCAFIC
  • HEPD50
  • QOM2200VH
  • HEPD80
  • QO115PDFC
  • HEPD25MKF
  • HEPD58MKF
