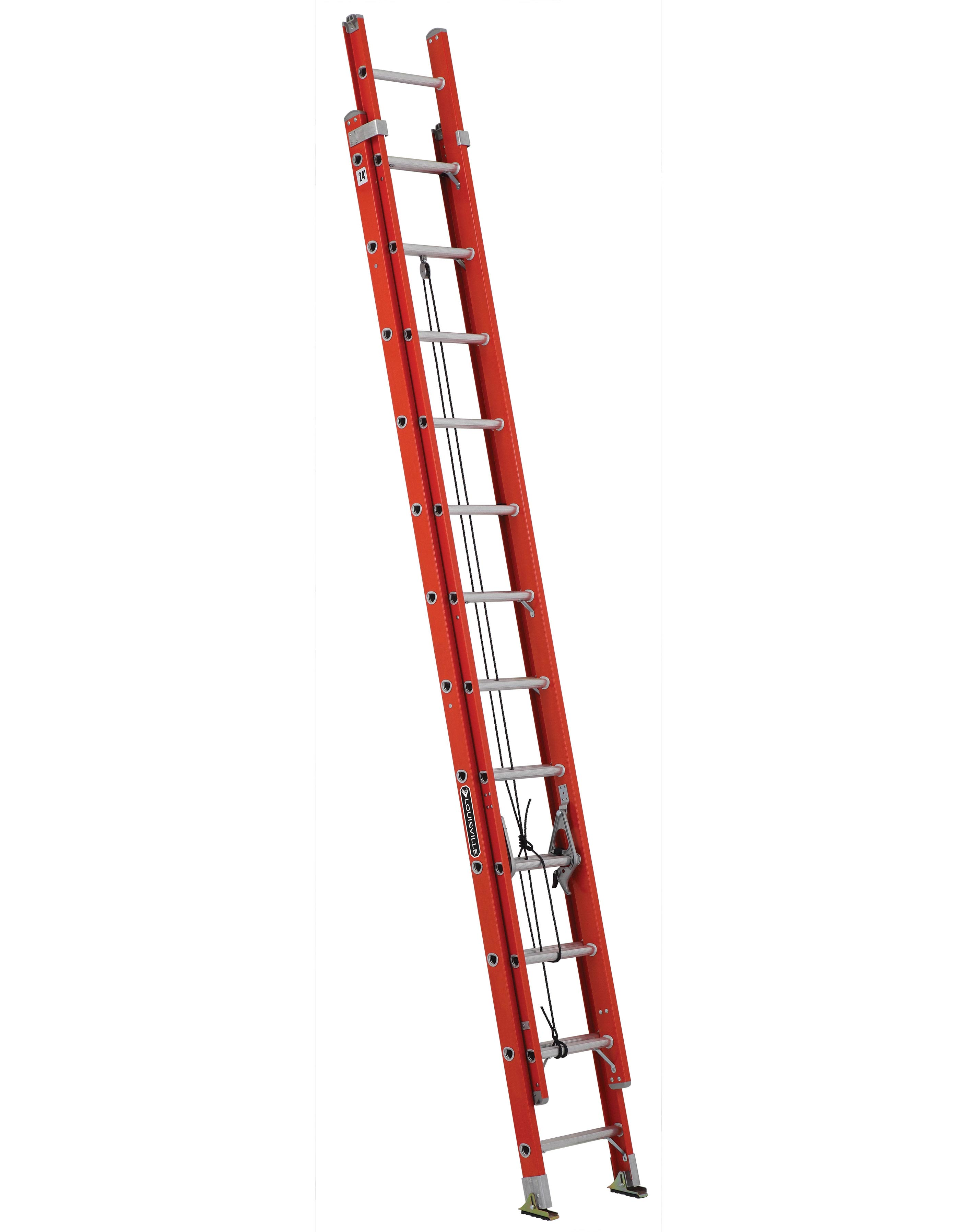

Product image for L-VIL L-3025-24 24FT FG LIGHTWEIGHT EXTENSION LADDER TYPE IA 300LB FIBERGLASS EXTENSION LADDER
Image thumbnail 0
Image thumbnail 1

Email

L-VIL L-3025-24 24FT FG LIGHTWEIGHT EXTENSION LADDER TYPE IA 300LB FIBERGLASS EXTENSION LADDER

Manufacturer: Louisville Ladder | Catalog # L-3025-24 | Cooper Electric Part # 1094708

$486.74/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Louisville 24 foot lightweight fiberglass extension ladder has a 300lb load capacity, rated ANSI Type IA. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder is up to 18% lighter compared to a regular extension ladder with the same load capacity. This lightweight extension ladder is equipped with Louisville's patented QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. The ladder features outside slide guides, D-shaped rungs fully serrated for a slip resistant surface, non-marring rail end caps, rope and pulley, and steel swivel safety shoes with metal shield to be used with the tread down or in spike position. The Louisville L-3025-24 lightweight fiberglass extension ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.

Technical Information

Bottom Width
16-1/2 in
Duty Rating
Type IA
Extension Height
24 ft
Load Capacity
300 lb
Material
Fiberglass
Max Reach
23.5 ft
Max Standing Height
16.92 ft
Number of Steps
24
Rung Type
D Rung
Size
24 ft
Spread
6-1/4 in
Step Depth
1-1/2 in
Style
Multi-section

Manufacturer Information

Brand
Louisville Ladder

General Product Info

12-Digit UPC
728865126535
Product UPC
72886512653
Weight
46 lb

Dimensions

Closed Depth
6-1/4 in
Closed Height
149 in
Closed Width
16-1/2 in
Features
  • 18% Lighter
  • Quicklatch Runglock System
  • Aluminum Swivel Safety Shoe with Shield
  • Outside Slide Guides
  • D-Shaped Rungs
  • Mar-resistant Rail End Caps
Related Products
  • L-3025-20
  • L-3025-24
  • L-3025-28
Other sizes available in this series
  • 20 ft
  • 24 ft
  • 28 ft
