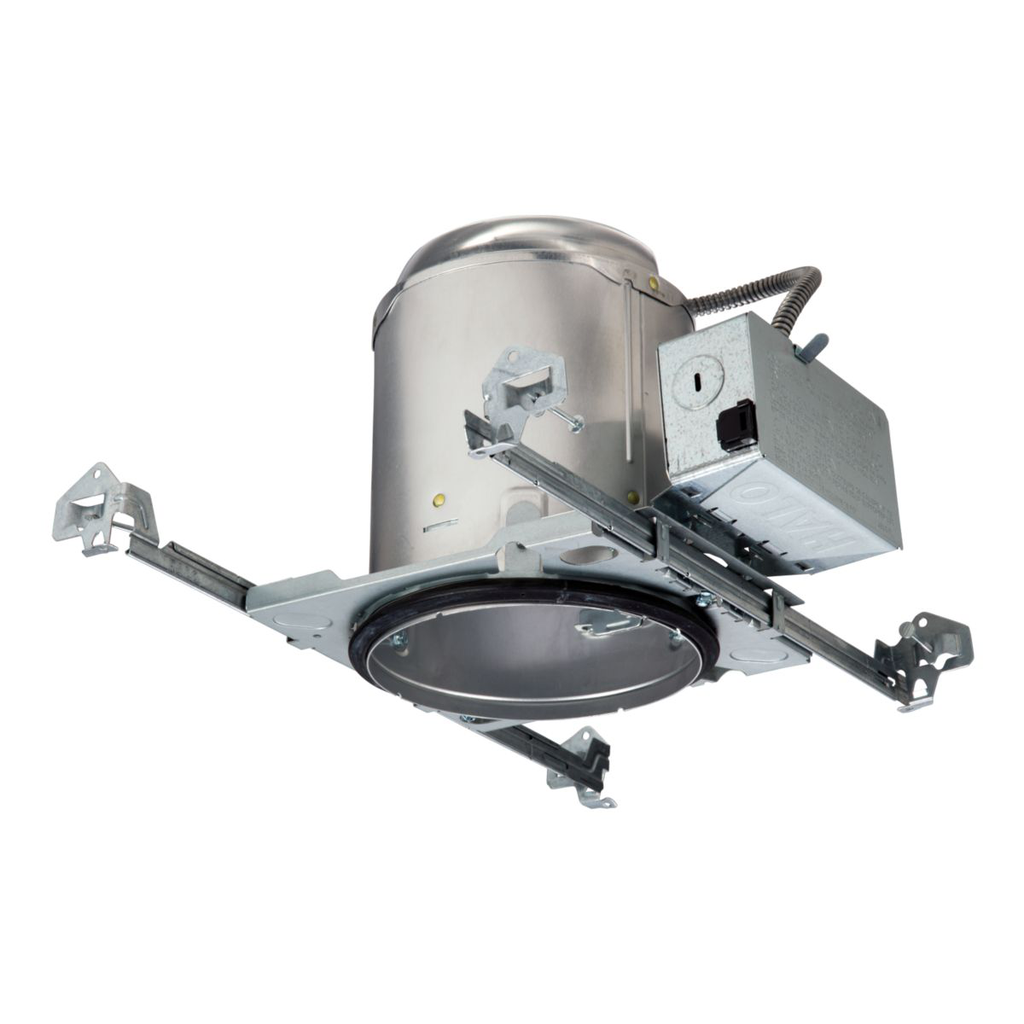

Product image for Halo E5ICAT 5" IC, Air-Tite New Construction Recessed Downlight Housing, E26 Screw Base
Email

Halo E5ICAT 5" IC, Air-Tite New Construction Recessed Downlight Housing, E26 Screw Base

Manufacturer: Cooper Lighting | Catalog # E5ICAT | Cooper Electric Part # 1093768
$32.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
63 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Installation / Instruction Manual Product Brochure
The E5ICAT is a compact and efficient recessed housing optimized and listed for EISA compliant tungsten-halogen lamps, as well as Incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible HALO LED lighting systems.

Technical Information

Amperage
0.625 Amp
Applications
Lighting
Ballast Type
N/A
Lamp Type
Halogen
Material
Die-Cast Aluminum
Mounting Type
Recessed
Number of Lamps
N/A
Style
(blank)
Type
5" E5 Housing
Voltage
120 Volt
Wattage
75 Watt

Manufacturer Information

Brand
Halo
Sub Brand
E5ICAT Series

General Product Info

12-Digit UPC
080083737420
GTiN
00080083737420
Product UPC
08008373742
Weight
2.45 lb

Dimensions

Diameter
5 Inch
Height
7-1/4 Inch
Length
13-1/2 Inch
Width
10.5 in

Certifications and Compliance

ARRA Compliant
Yes
Country of Origin
Mexico
Features
  • 13.5 IN Length 10.5 IN Width 7.25 IN Height
  • For use in insulated ceilings
  • Air-Tite exclusive housing gasket
  • Air-Tite tested per ASTM E 283
  • All-Nail bar hangers with preinstalled nail and integral T-grid clip
  • q-channel interlocking hanger bars
  • Hanger bars feature Pass-N-Thru tool-less shortening
  • Quick connect push-in wire nuts included
  • Hinged junction box with Slide-N-Side
  • Socket bracket adjusts lamp to various trim styles and designs
