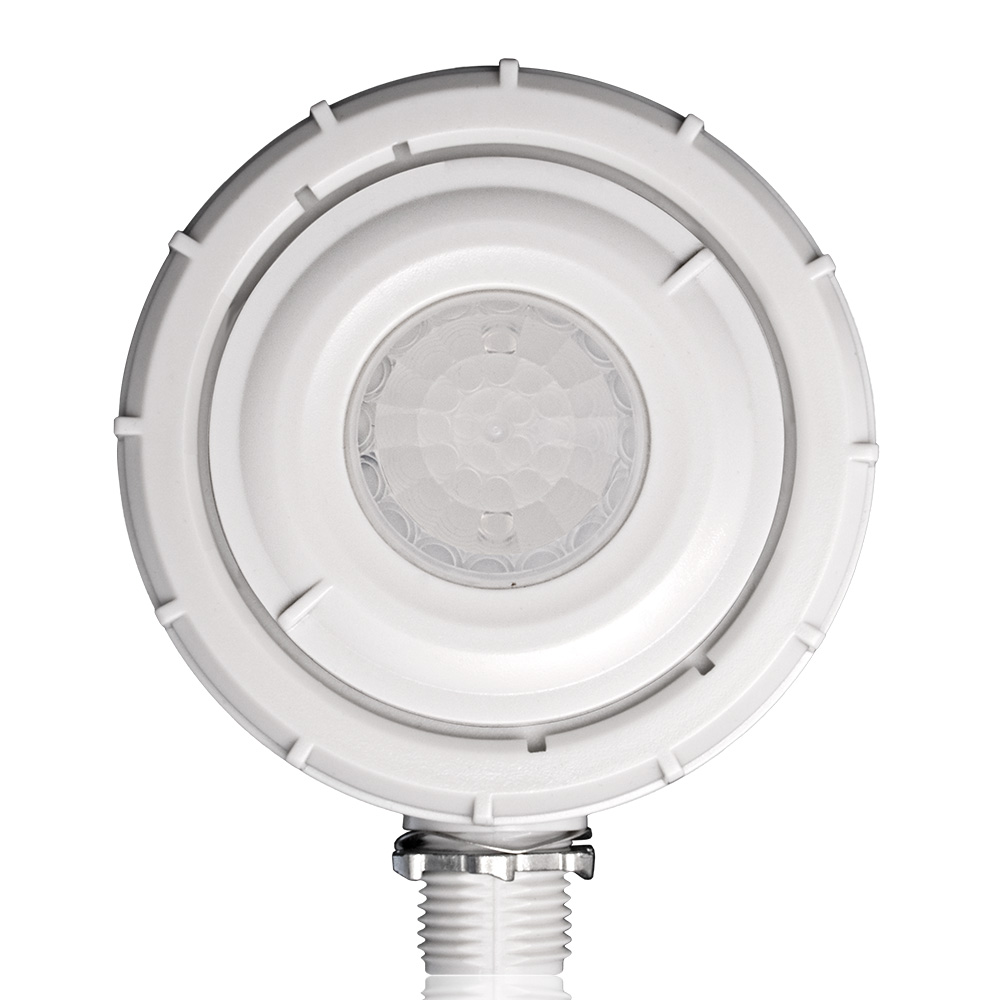

Product image for LEV OSFHW-CTW HB SENSOR IP65 RATED,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV OSFHW-CTW HB SENSOR IP65 RATED,

Manufacturer: Leviton Mfg Co | Catalog # OSFHW-CTW | Cooper Electric Part # 1093186
$68.44/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Safety Data Sheet
Fixture Mount PIR High Bay Wet Location External Occupancy Sensor lighting control, 7.5 inch wire lead length, interchangeable adjustable 360 degree low-bay (8FT-20FT), and high-bay (20FT-40FT) lenses, blue, aisle mask

Technical Information

Applications
For Supermarket Meat Departments, Food Processing Plants, Parking Garages and other Wash Down, High Ceiling Applications
Coverage
8-40 sq-ft
Frequency
50 Hz
Grade
Commercial
Material
Plastic
Mounting Type
Fixture
Response Time
30 sec - 30 min
Sensor Type
Passive Infrared
Size
3.75 in
Standard
IP65 Rated
Temperature Rating
-40 to 71 degrees C
Type
External, High-Bay
Voltage
120-277-347 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
C/I OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477746868
Color
White
GTiN
00078477746868
Product UPC
07847774686

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • IP65 Rated
  • Quicksnap locking mechanism built into the 1/2 nipple allows for the fastest and easiest mounting not requiring a threaded lock-nut

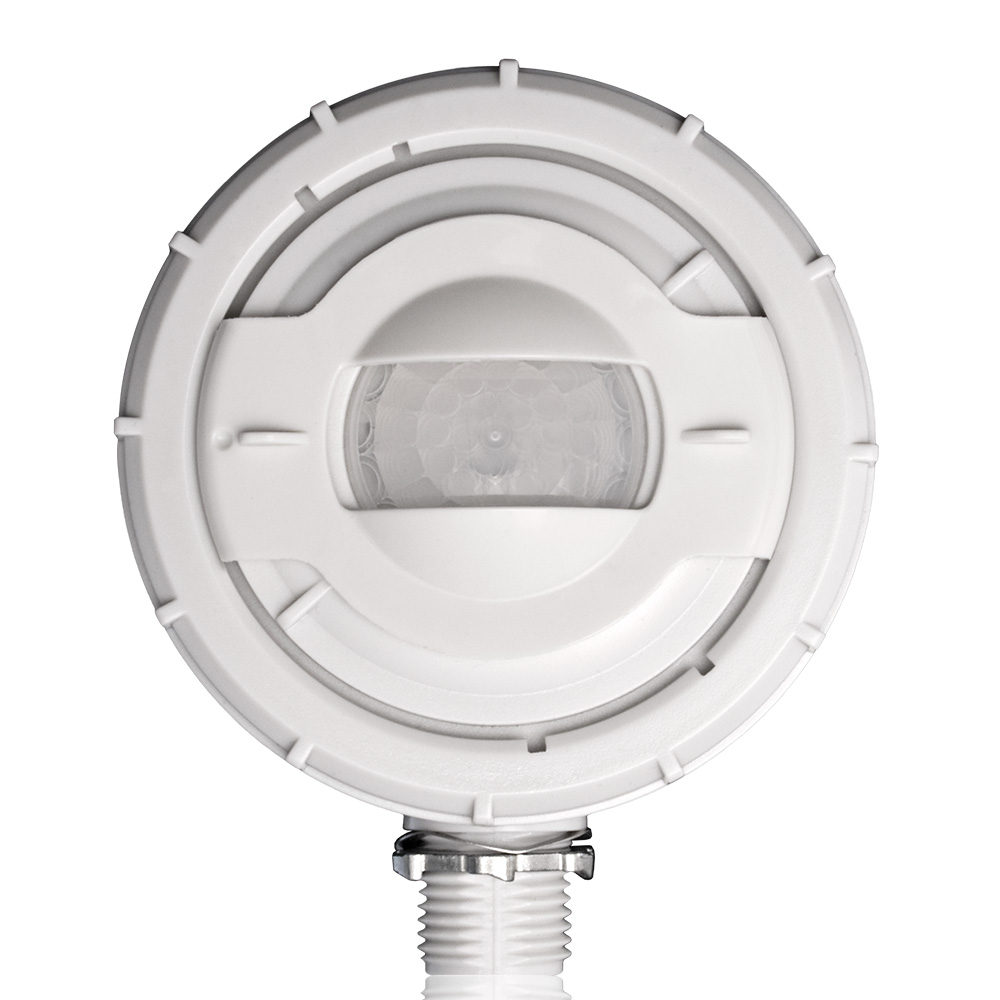

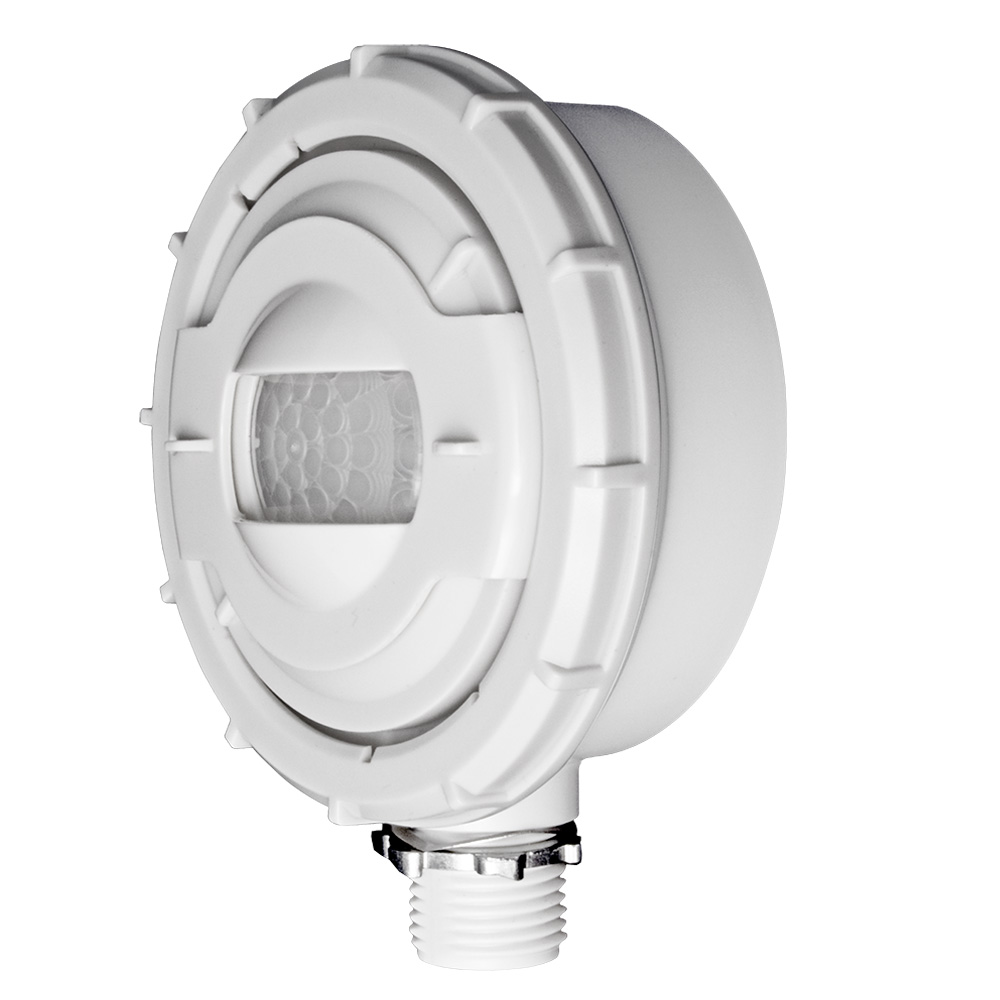

  • Unit includes interchangeable 360° high-bay (20-40) and 360° low-bay (8-25)lenses and an aisle mask accessory
  • Time delay can be set can be set at any time without requiring power to the sensor; time delay is variable from 30 sec-30 min
  • Instant ON closing relay fires lamps in under 5 seconds
  • Zero crossing circuitry optimizes relay operation for reliable, long-life operation?robust mechanical latching relay is durable for all load types
  • Automatically adjusts the PIR sensitivity as ambient temperature rises to increase detection of heat movement through the field-of-view
  • For safety and energy savings, the OSFHW contains a latching relayin the event that power is lost to the device, the device will return to the last known state of the relay
  • For increased energy savings and to mitigate nuisance tripping, the super-bright LED indicates advanced detection has been activated and the lights will only turn ON when true occupancy has been determined
  • The Fixture Mount PIR High-Bay Wet Location External Occupancy Sensor (OSFHW) is ideal for damp or wet locations such as supermarket meat departments, food processing plants, parking garages and other wash down, high ceiling applications. The OSFHW features a IP65 rating for indoor and outdoor locations and is designed to withstand dust and pressure washers. The sensor comes with two interchangeable lenses for use in either a 360 degree high-bay or 360 degree low-bay general area and includes an aisle mask accessory. Do you have a question about an occupancy sensor or vacancy sensor?
