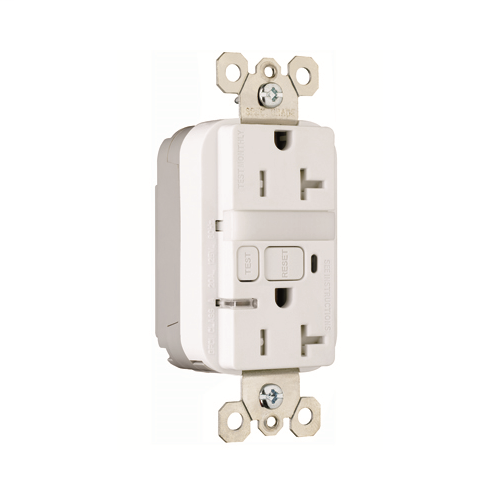

P&S PT1595NTLTRNAW DISC SUB PT1597N

Manufacturer: Pass & Seymour / Legrand | Catalog # PT1595-NTLTRNAW | Cooper Electric Part # 1091523
$58.75/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. This GFCI meets the requirements of the Buy American provision of the American Recovery and Reinvestment Act and provides the same protection as our traditional GFCI.

Technical Information

Amperage
15 Amp
NEMA
5-15R
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007007053
Color
White
GTiN
00785007007053
Product UPC
78500700705

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • FSUL Listed (Federal Specification WC596).
  • Tri-drive screws.
  • Productivity, better aesthetics and safety all in one device.
  • Class A rated GFCI.
  • Meets 2008 National Electrical Code® Tamper-Resistant requirements.
  • NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • 10kA short circuit rating.
  • Faster, more reliable installation.
  • GFCI works with the existing 3 wire PlugTail Connectors creating a non-feed-thru application for facility owners. At rough-in just install the same right angle connector for GFCI and receptacle openings.
  • Dual-direction test and reset buttons.
  • Supplied with matching TP26 nylon wall plate.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Added nightlight feature offers the best possible solution for commercial applications.
  • High-impact-resistant thermoplastic construction.
  • Trip indicator light (red LED).
  • For covering patents, see www.legrand.us/patents.
  • Button colors match the device face.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Zinc-plated steel mounting strap.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
