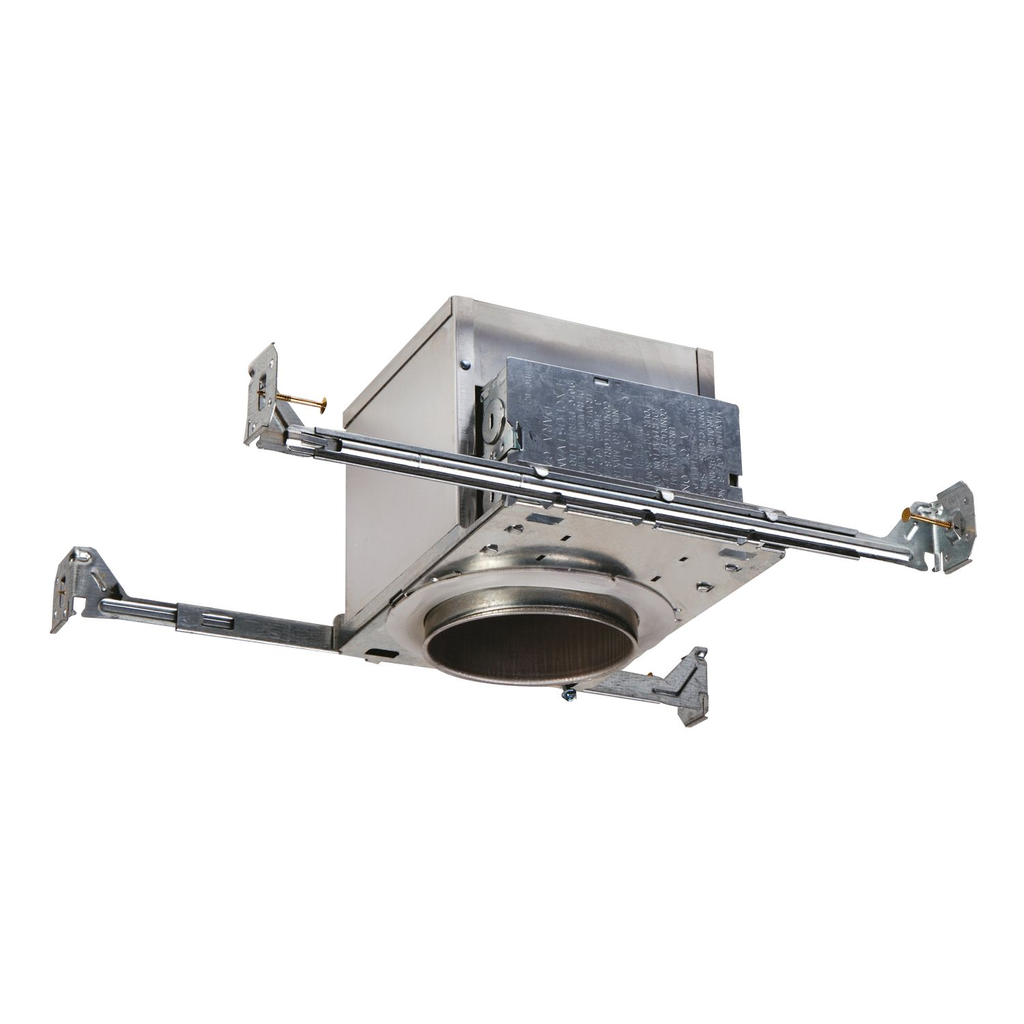

Halo E4ICATSB 4" Insulated Ceiling Air-Tite Recessed Downlight Housing, w/ Adjustable Socket Bracket

Manufacturer: Cooper Lighting | Catalog # E4ICATSB | Cooper Electric Part # 1090771
$33.47/ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Pick Up

at Ocean Closes 6:00pm ET
111 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Brochure
The E4RTATSB is a compact and efficient recessed remodel housing optimized and listed for EISA compliant tungsten-halogen lamps, as well as Incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible HALO LED lighting systems.

Technical Information

Amperage
0.417 Amp
Applications
Lighting
Ballast Type
N/A
Lamp Type
Incandescent
Material
Die-Cast Aluminum
Mounting Type
Recessed
Number of Lamps
N/A
Style
(blank)
Type
4" E4 Housing
Voltage
120 Volt
Wattage
50 Watt

Manufacturer Information

Brand
Halo
Sub Brand
E4ICATSB Series

General Product Info

12-Digit UPC
080083751525
GTiN
00080083751525
Product UPC
08008375152
Weight
2.77 lb

Dimensions

Diameter
4 Inch
Height
6 Inch
Length
14 Inch
Width
11.5 in

Certifications and Compliance

ARRA Compliant
No
Country of Origin
Mexico
Features
  • For use in insulated ceilings
  • Air-Tite exclusive housing gasket
  • Air-Tite tested per ASTM E 283
  • All-Nail bar hangers with preinstalled nail and integral T-grid clip
  • q-channel interlocking hanger bars
  • Hanger bars feature Pass-N-Thru tool-less shortening
  • Quick connect push-in wire nuts included
  • Hinged junction box with Slide-N-Side
  • Socket bracket adjusts lamp to various trim styles and designs
