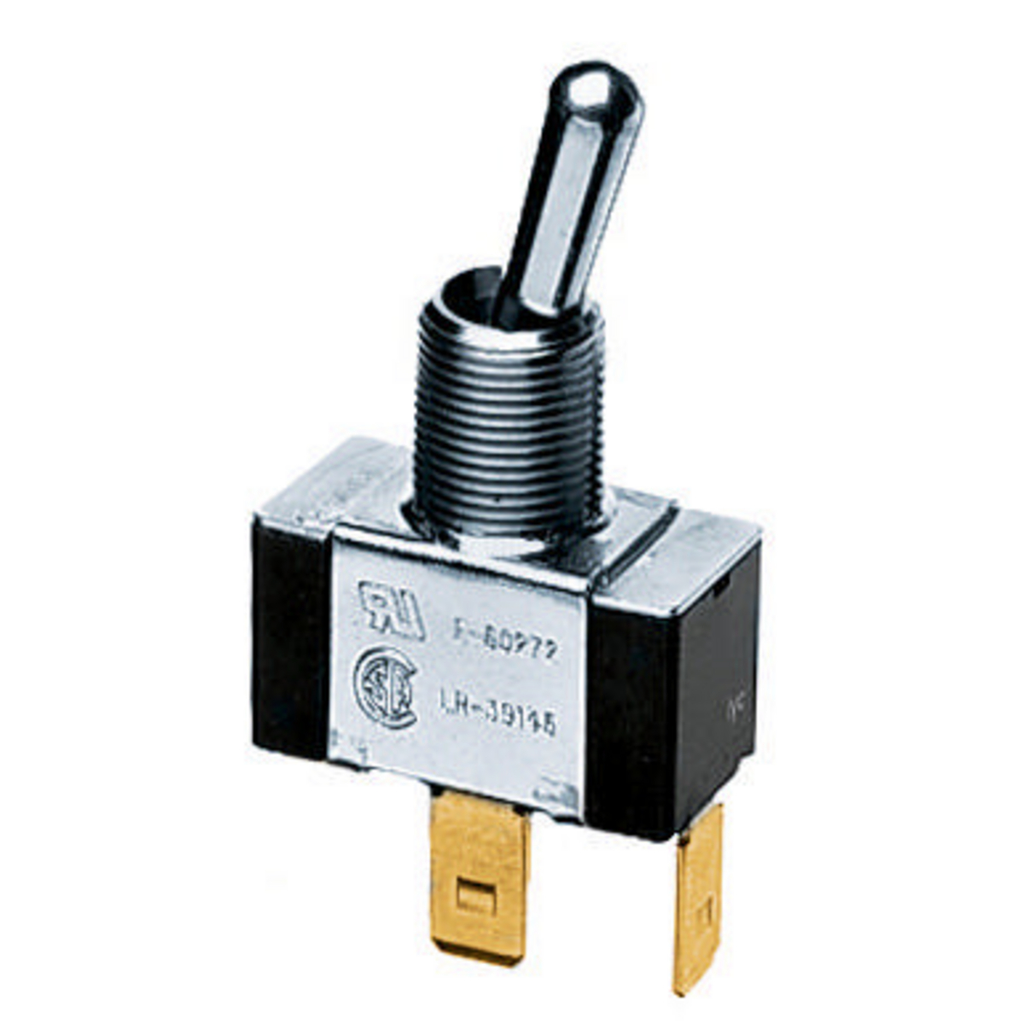

Product image for HCI HBL11SPM PANEL SW, SPST, MOMENT
Image thumbnail 0
Image thumbnail 1
Email

HCI HBL11SPM PANEL SW, SPST, MOMENT

Manufacturer: Hubbell Wiring Device | Catalog # HBL11SPM | Cooper Electric Part # 1089886
$13.40/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Momentary Single Pole Single Throw, 10A 250V/10A 125V, Spade

Technical Information

Action
Momentary On
Actuator
Bat Handle
Amperage
20 Amp
Applications
For Illuminated 30mm Momentary Contact Push Button
Contact Configuration
SPST
Contact Rating
As Indicated
Current
10 Amp
Grade
Commercial
Horsepower
0.75 hp
Indicator
Comes with Indicator Plate
Interrupt Rating
10, 20 AIC
Material
Thermoplastic
Number of Poles
1 Pole
Operating Temperature
Max Continuous - 75 degrees C, Minimum - -40 Without Impact
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Spade Terminal
Switch Type
Single Pole
TC Connection
Spade Terminal
Type
Standard, Heavy Duty, 2-Position
Voltage
250/125 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Panel Mount Switches

General Product Info

12-Digit UPC
783585016719
Color
Metallic
GTiN
00783585016719
Product Series
Single Pole/Single Throw
Product UPC
78358501671
Weight
0.1 lb

Dimensions

Height
1.12 Inch
Length
2.15 Inch
Width
0.500 in

Certifications and Compliance

Country of Origin
China
Features
  • Nickel Plated for Corrosion Resistance
