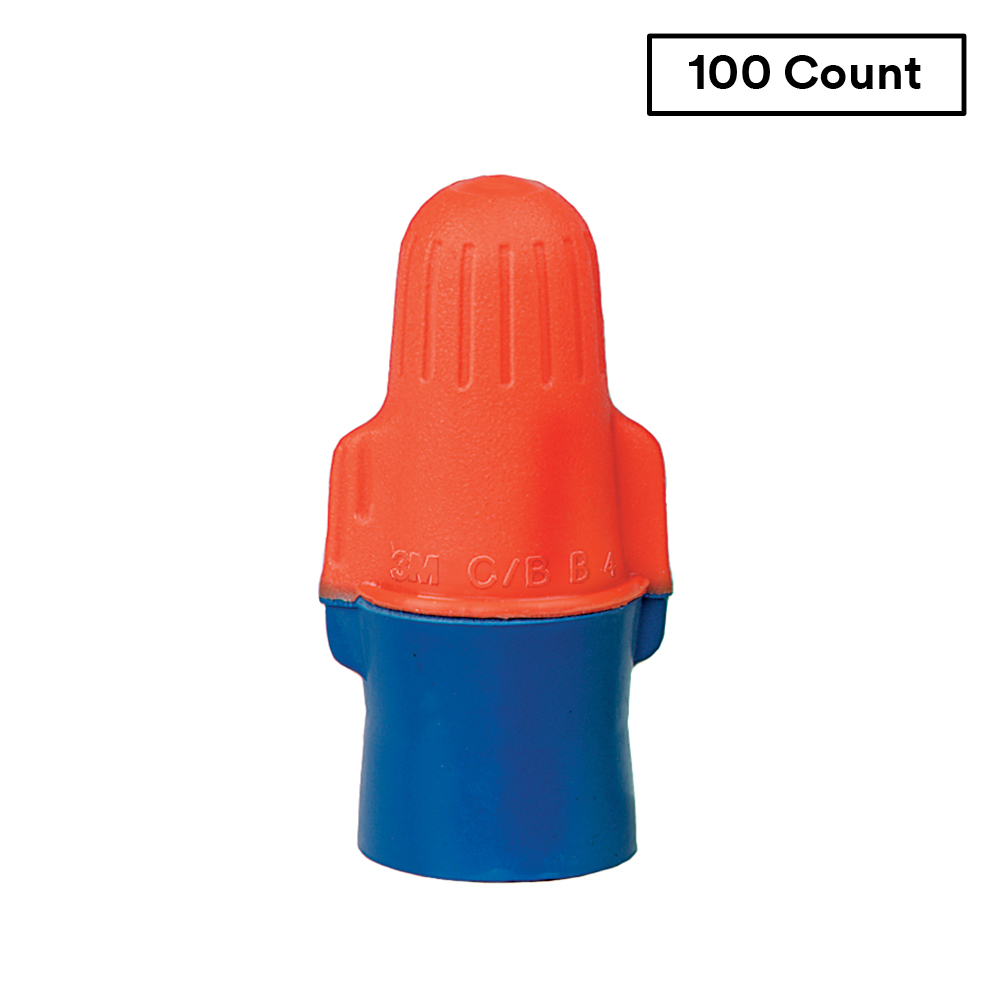

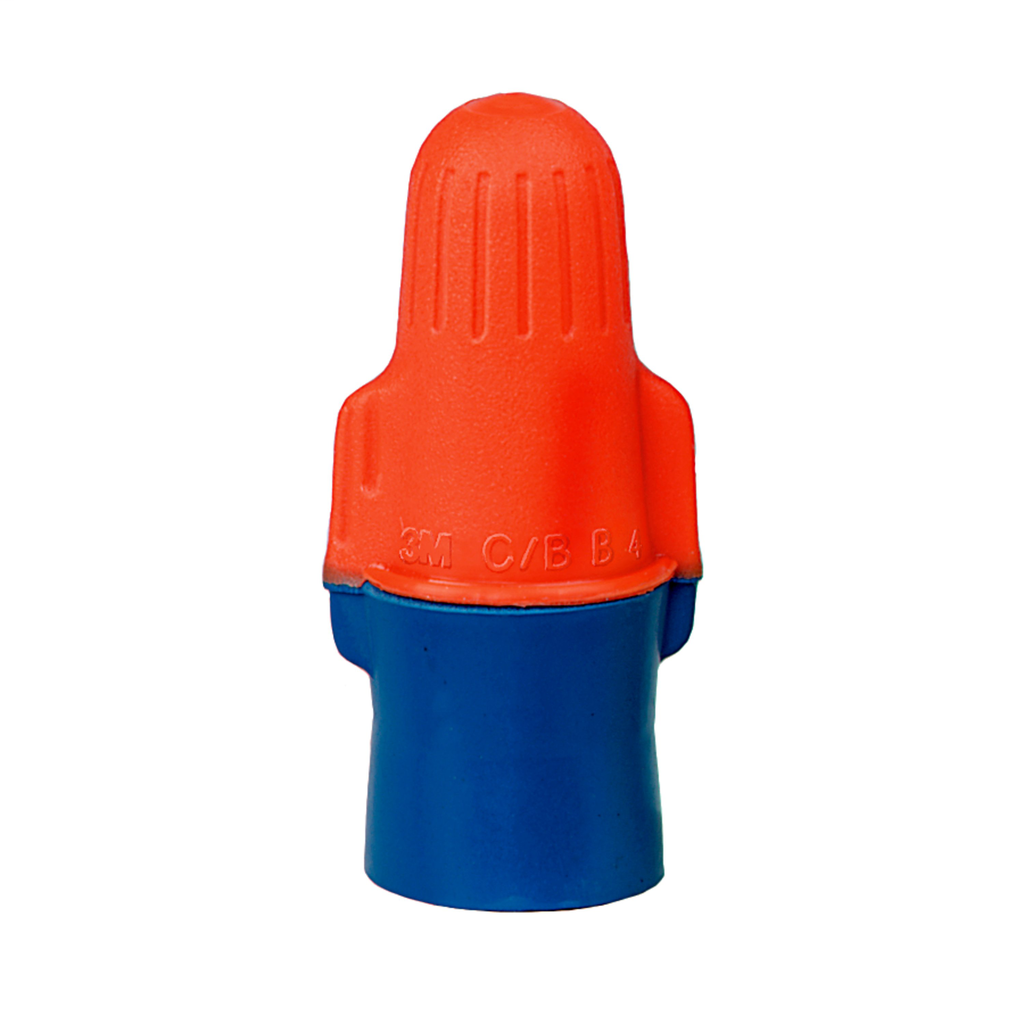

Product image for 3M O/B+BOX 100/Box Orange/Blue Spring Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

3M O/B+BOX 100/Box Orange/Blue Spring Connector

Manufacturer: 3M | Catalog # 7100127195 | Cooper Electric Part # 10896
$0.28/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
400 available

For Pick Up

at Ocean Opens Friday 8:00am ET
16,700 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible springthat has generous room for expansion and a strong bite for a secure connection. Becauseof their increased wire range, just three Performance Plus wire connectors handle thework of eight standard connectors. And theflexible skirt helps prevent copper exposure for enhanced safety.

Technical Information

Conductor Size
22-12 AWG
Connection Type
Twist-On
Contact Material
Spring Steel
Flame Retardant
Yes
Insulation Material
Polypropylene and Thermoplastic Elastomer
Material
Plastic
Max Operating Temperature
105 degrees C
Max Voltage
600 V
Temperature Rating
221 degrees F
Type
Winged
Voltage
600 Volt

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007431527
Color
Orange, Blue
GTiN
10054007431524
Product UPC
05400743152

Dimensions

Diameter
0.49 Inch
Length
1.03 Inch

Certifications and Compliance

Country of Origin
USA
Features
  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed
