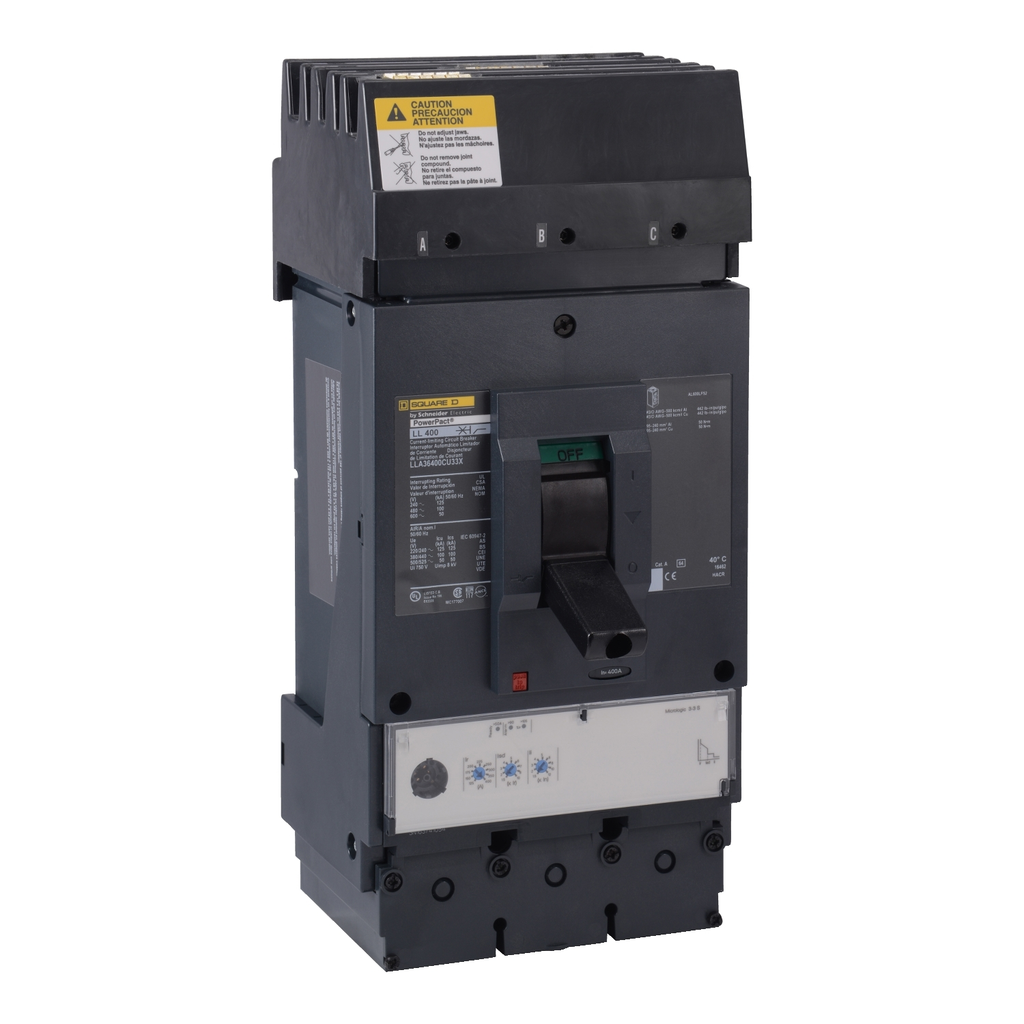

Square D LDA36400CU33X 600 Volt Molded Case Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # LDA36400CU33X | Cooper Electric Part # 1087262
$6,506.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure

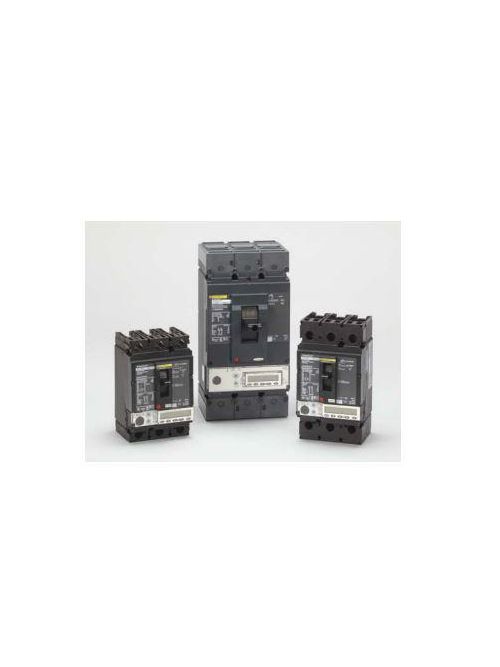

The PowerPact H, J, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only.

Technical Information

Actuator
Toggle
Amperage
400 Amp
Applications
Distribution
Frame
D
Interrupt Rating
14, 18, 25 kAIC
Line Rated Current
400-400 A
Mounting Type
I-Line
Net Weight
6.2 kg
Number of Phases
ABC
Number of Poles
3 Pole
Range
PowerPact
Standard
CSA,IEC 60947-2,NEMA,NOM-003-SCFI-2000,UL
Storage Temperature
-50-85 degrees C
Strip Length
31 mm
TC Connection
I-Line connection line;lugs load; 2 x AWG 2/0...500 kcmil aluminium/copper
Trip Range
400 A
Trip Type
Electronic, standard, Micrologic 3.3 S, LSI
Type
Circuit breaker;Current limiter
Voltage
600 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
PowerPact L;L-Frame

General Product Info

12-Digit UPC
785901609506
Color
Black
GTiN
00785901609506
Product UPC
78590160950
Weight
6.2 kg

Dimensions

Depth
110 mm
Height
6 Inch
Length
31 mm
Warranty Length
18 mth
Width
140 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CCC,CSA,CSA,IEC,IEC,UL,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • S29450
  • S29452
  • S32631
  • VTRIPL
  • VTRIPL05
  • VTRIPL10
