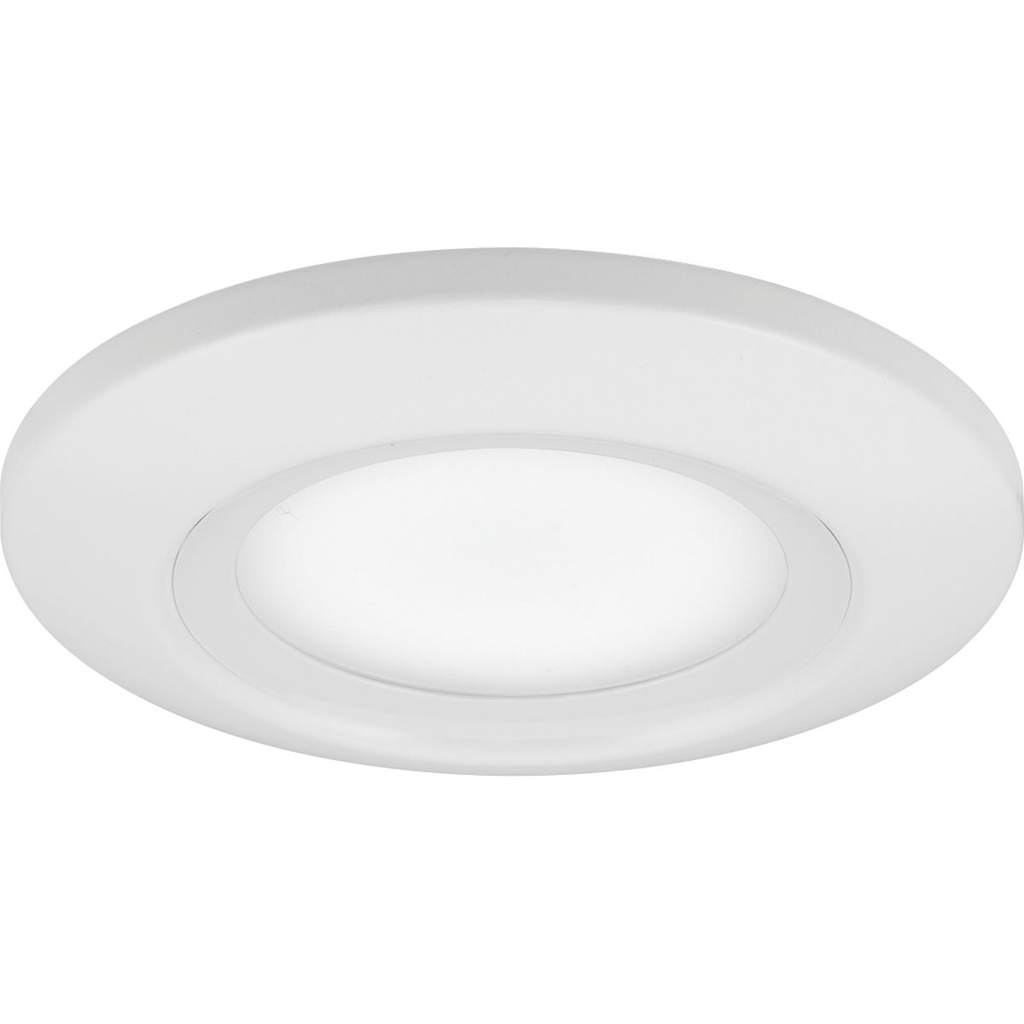

Product image for PROG P8107-2830K9 1-13W LED J-BOX R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

PROG P8107-2830K9 1-13W LED J-BOX R

Manufacturer: Progress Lighting | Catalog # P8107-2830K9 | Cooper Electric Part # 1084533
$38.90/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Installation / Instruction Manual
The P8107 delivers a solution for flush mount, for both residential and commercial markets. In addition, the P8107 is wet located and is a cost effective solution for fire rated application. The P8107 features a 120V alternating current source and eliminates the need for a traditional LED driver. This modular approach results in an encapsulated luminaire that unites performance, cost and safety benefits.

Technical Information

Amperage
0.11 Amp
Color Accuracy
90
Color Rendering Index
90
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Frequency
50/60 Hz
Lamp Type
LED
Lamp Wattage
12.4 W
Material
Aluminum
Number of Lamps
1,1
Operating Temperature
30 degrees C
Style
Modern;Transitional
Voltage
120 Volt
Wattage
13 Watt
Wire Length
6 in

Manufacturer Information

Brand
Progress
Sub Brand
Progress LED

General Product Info

12-Digit UPC
785247199716
Color
White,White
Finish
Painted
GTiN
00785247199716
Product UPC
78524719971
Weight
1 lb

Dimensions

Height
3/4 Inch
Inside Diameter
3.668 in
Warranty Length
5 yr
Width
5.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Lifestyle
  • Modern
  • Transitional
Controls - Applications
  • Zone Zone_Lumens %_Luminaire
  • 0-10 34.8 4.3%
  • 10-20 97.2 12.0%
  • 20-30 139.5 17.1%
  • 30-40 154.5 19.0%
  • 40-50 144.2 17.7%
  • 50-60 116.7 14.3%
  • 60-70 80.4 9.9%
  • 70-80 40.0 4.9%
  • 80-90 6.3 0.8%
  • Total 813.6 Lumens 100%
Features
  • White finish
  • Diffused polycarbonate lens controls direct glare from the LEDs.

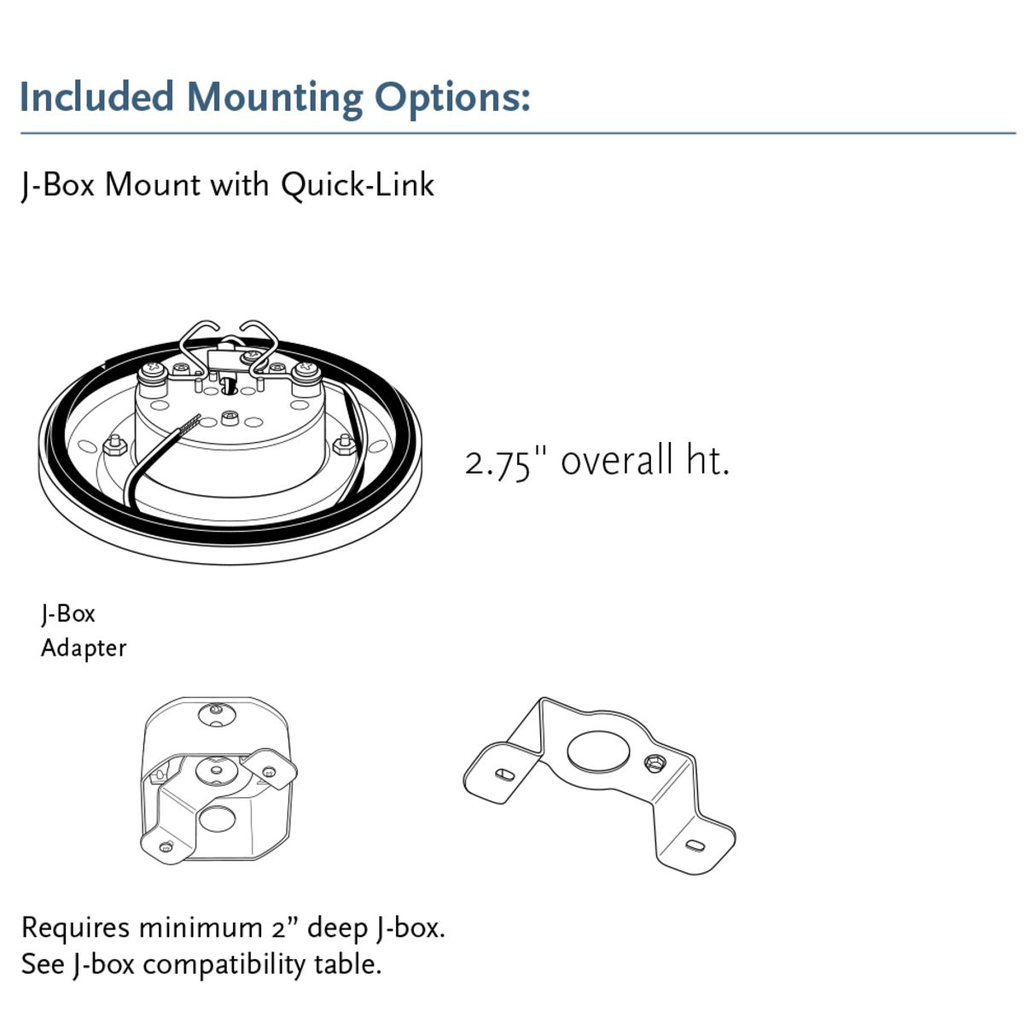

  • Simple snap-in installation for J-Box.
  • Die-cast aluminum construction with a powder coat paint finish.
  • Can be installed in a 4\" J-Box.
  • Lumen output and distribution comparable to a 65W incandescent lamp.
  • Requires a minimum 2\" deep J-Box. See J-Box compatibility table.
  • 824.6 lumens.
  • 3000K, 90+ CRI.
