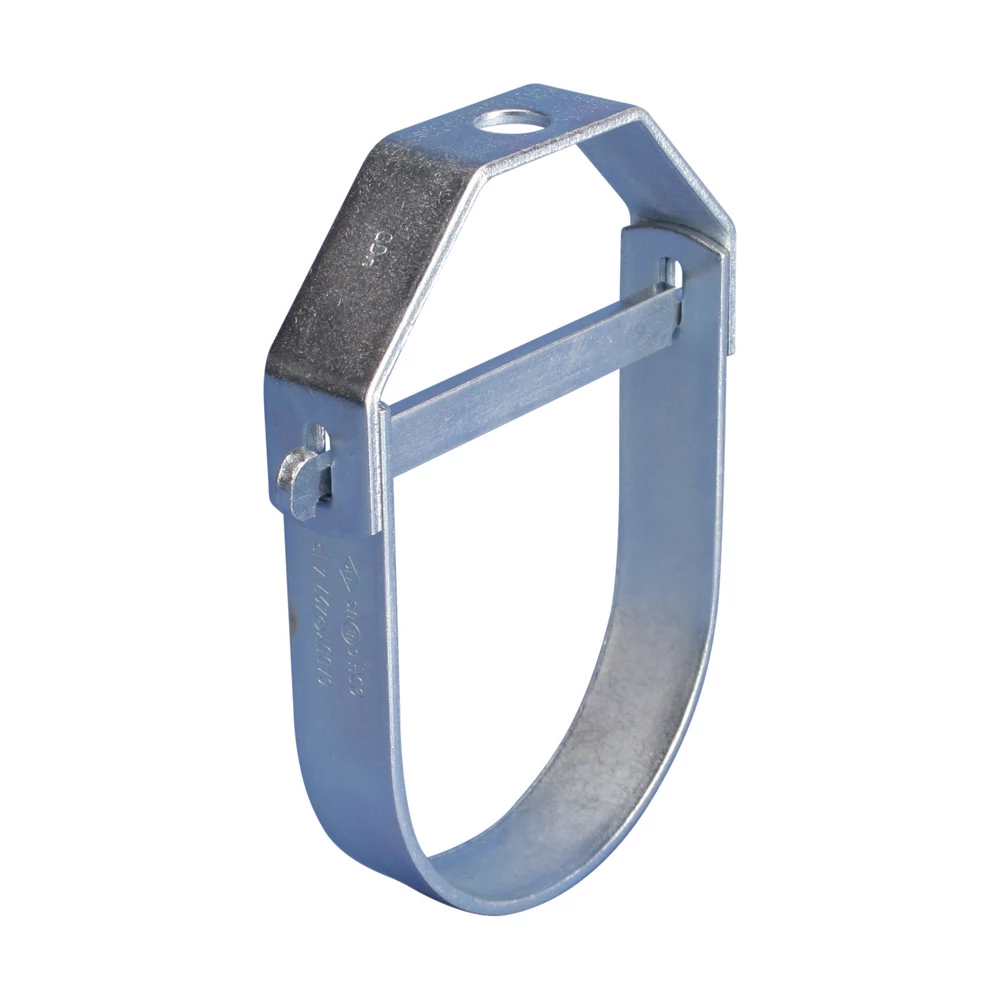

Product image for Erico 4270400EG 427 CADDY Slot Lock Clevis Hanger, 4" Pipe, 4.5" OD, 5/8" Rod
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Erico 4270400EG 427 CADDY Slot Lock Clevis Hanger, 4" Pipe, 4.5" OD, 5/8" Rod

Manufacturer: Erico, Inc | Catalog # 4270400EG | Cooper Electric Part # 1082486
$658.80/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Recommended for the suspension of stationary non-insulated pipe lines. Slotted crossbeam design is easier to assemble than conventional nut and bolt style clevis hangers. Eliminates the need to install additional parts to control deflection. Installation up to 20% faster than other standard clevis hangers. Conforms with U.S. Federal Specification WW-H-171 (Type 1), Manufacturers Standardization Society (MSS) SP-58 (Type 1).

Technical Information

Applications
Fire Sprinkler; HVAC, Plumbing and Refrigeration
Material
Steel
Type
427 CADDY SLOT LOCK Clevis Hanger

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856586937
Finish
Electro Galvanized
GTiN
00782856586937
Product UPC
78285658693
Weight
0.60 kg
Features
  • Recommended for the suspension of stationary non-insulated pipe lines
  • Slotted crossbeam design is easier to assemble than conventional nut and bolt style clevis hangers
  • Eliminates the need to install additional parts to control deflection
  • Installation up to 20% faster than other standard clevis hangers
  • Conforms with U.S. Federal Specification WW-H-171 (Type 1), Manufacturers Standardization Society (MSS) SP-58 (Type 1)
Certifications
  • cUL ULC/ORD-C203
  • FM Approved, Pipe Hanger Components FM 1951, 1952, 1953 (December 2016)
  • UL ANSI/UL 203
