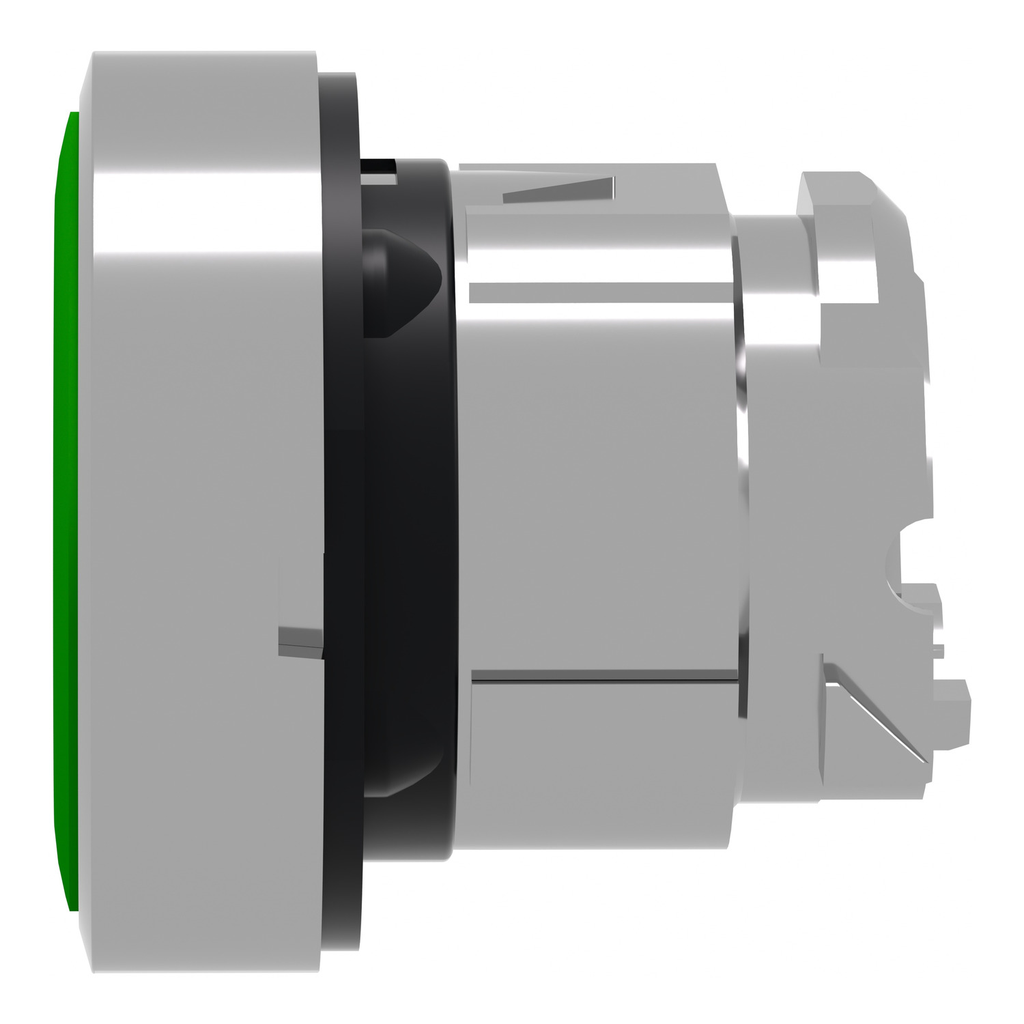

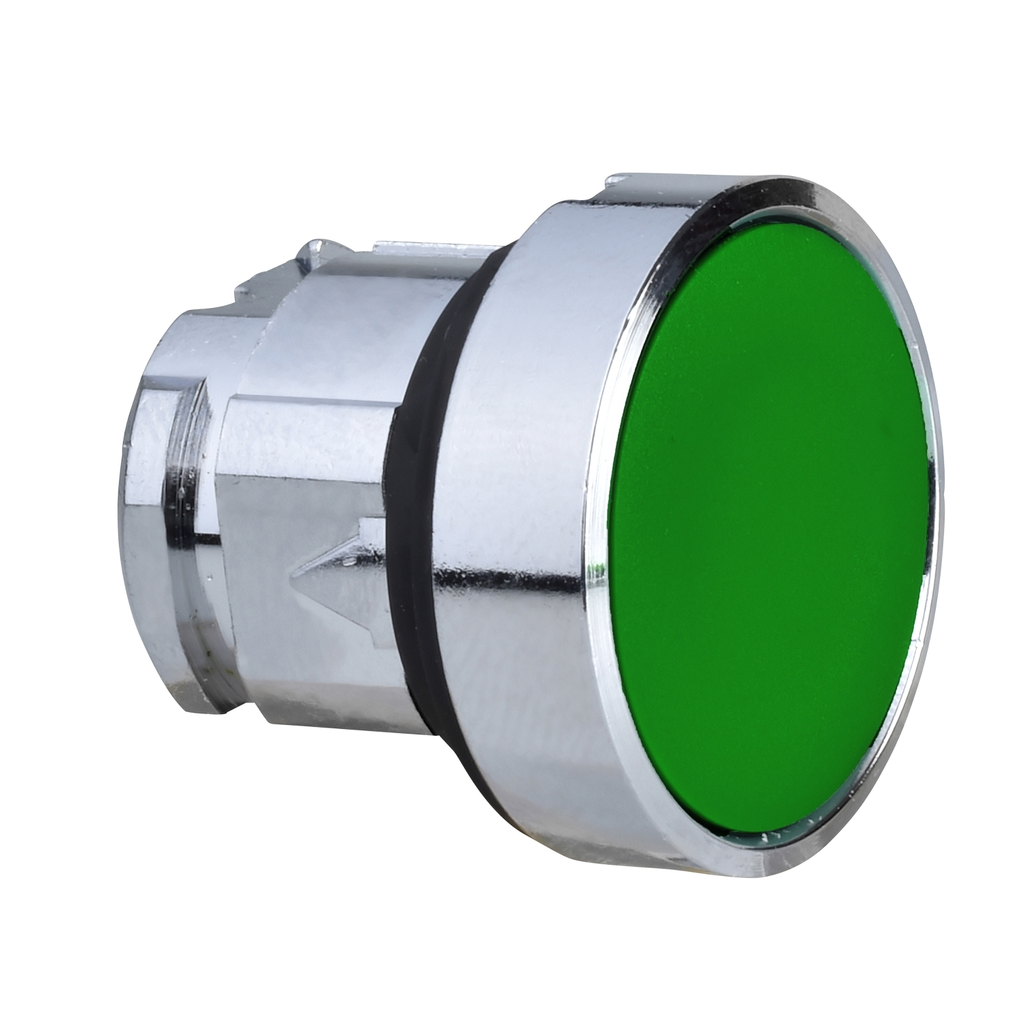

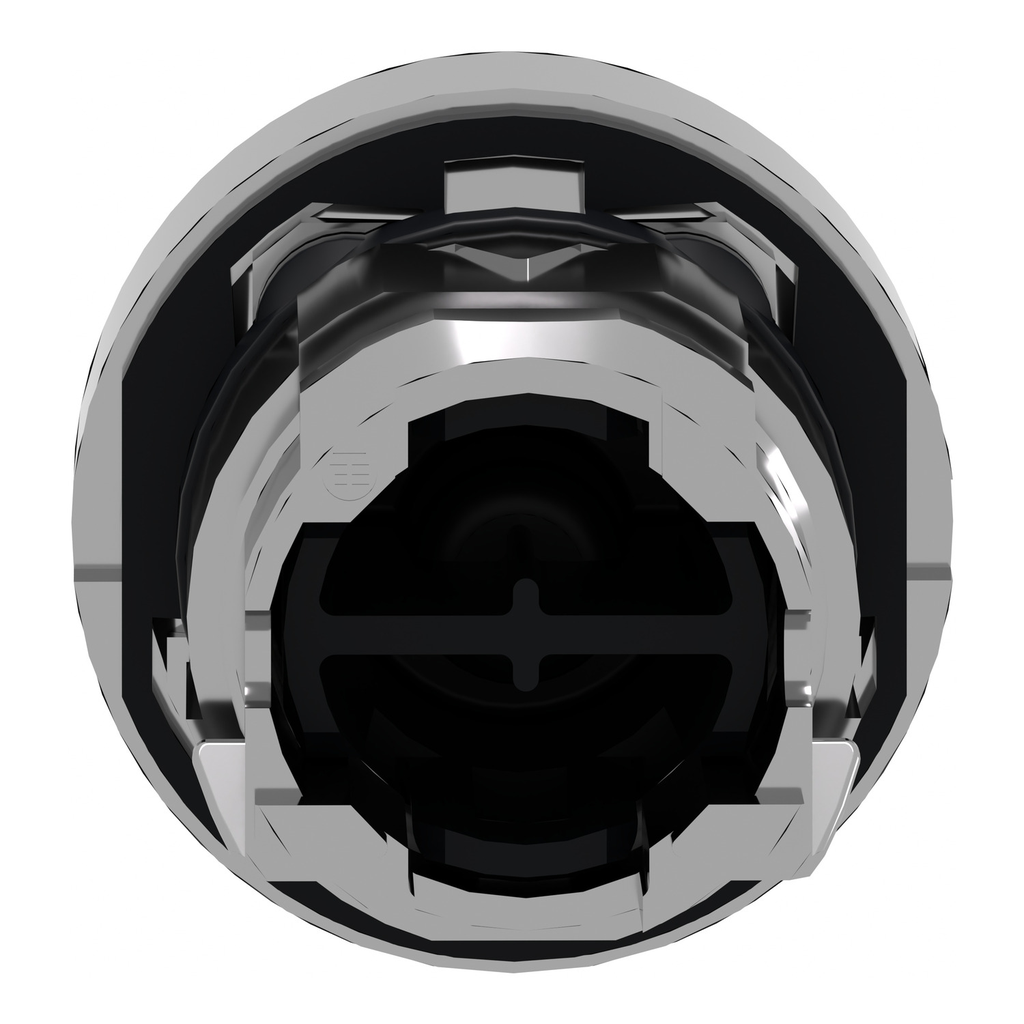

Square D ZB4BH03 22 mm Green Round Flush-On/Push-Off Non-Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # ZB4BH03 | Cooper Electric Part # 1082214

$12.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Harmony XB4, flush green button head operates with a latched push-push mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Technical Information

Action
PUSH-PUSH
Actuator
GREEN FLUSH, UNMARKED,PUSH-PUSH
Applications
PUSH-BUTTON
Bezel Material
Chromium Plated Metal
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
GREEN
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for non-illuminated push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB4

General Product Info

12-Digit UPC
389110122612
Color
Green
GTiN
03389110122619
Product UPC
78590138204

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB4BZ009
  • ZBY2101
  • ZBYLEG201001
  • ZBYP2101
Cross Sell Products
  • NSYS3D4420
  • XAPD1201
  • ZB4FH03
