Applications
DYNAMIC MONITORING OF DOUBLE-BODIED SOLENOID VALVES,FOR DYNAMIC MONITORING OF DOUBLE-BODIED SOLENOID VALVES
Contact Rating
10 MA 48 V SOLID STATE OUTPUT CIRCUIT-20 MA 24 V SOLID STATE OUTPUT CIRCUIT-1.5 A 24 V DC-13)50 MS RELAY OUTPUT,180 VA HOLDING AC-15 C300 RELAY OUTPUT-1800 VA INRUSH AC-15 C300 RELAY OUTPUT
Enclosure
POLYCARBONATE,REMOVABLE
Output
4 SOLID STATE OUTPUTS,RELAY, 1 NO TRANSFER FUNCTION + 1 NC FEEDBACK LOOP, VOLT-FREE
Power Supply
115 V AC - 15...15
TC Connection
CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.5...2 X 1.5 MMA WITH CABLE END-CAPTIVE SCREW CLAMP TERMINALS, 2 X 2.5 MMA WITHOUT CABLE END
Type

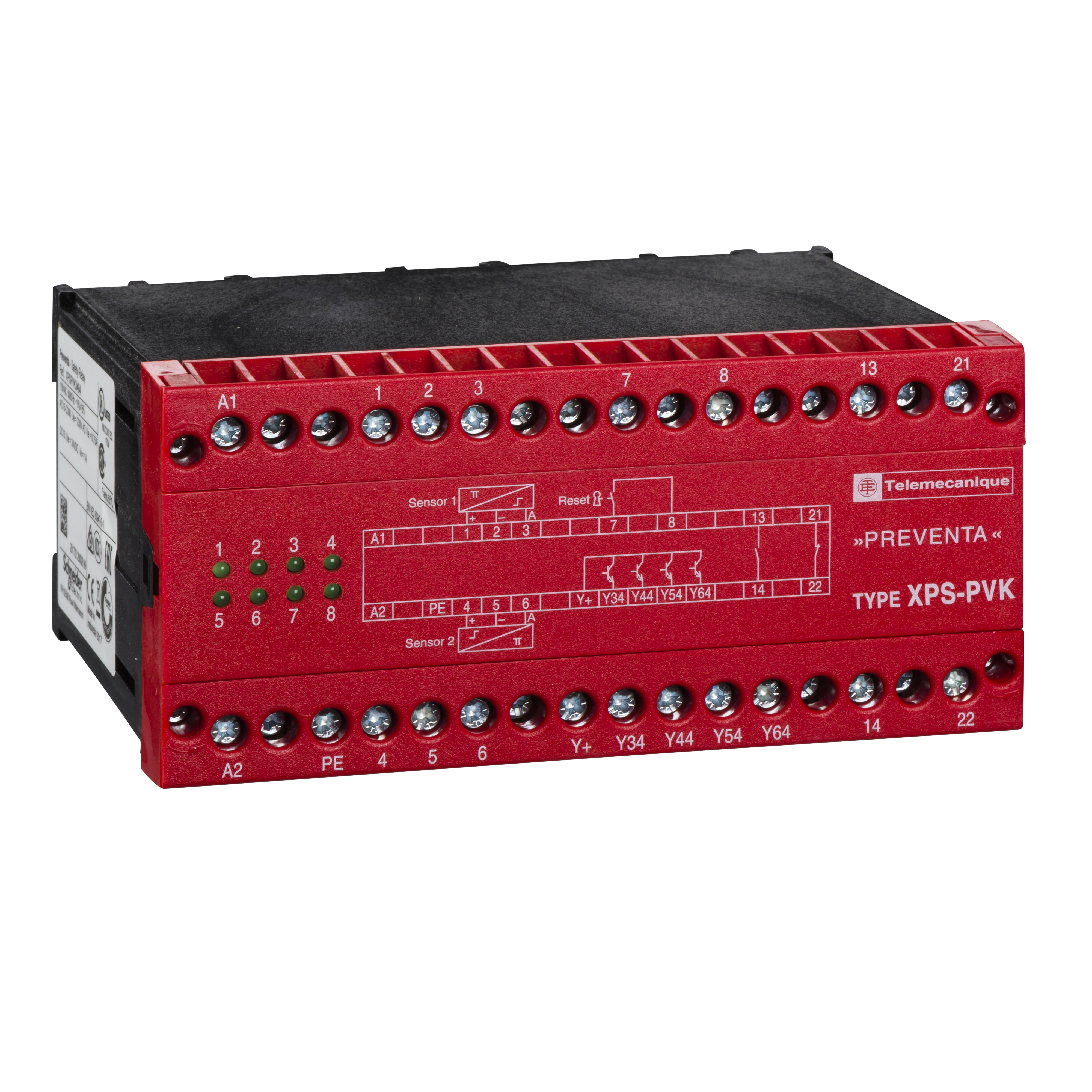

PREVENTA SAFETY MODULE
