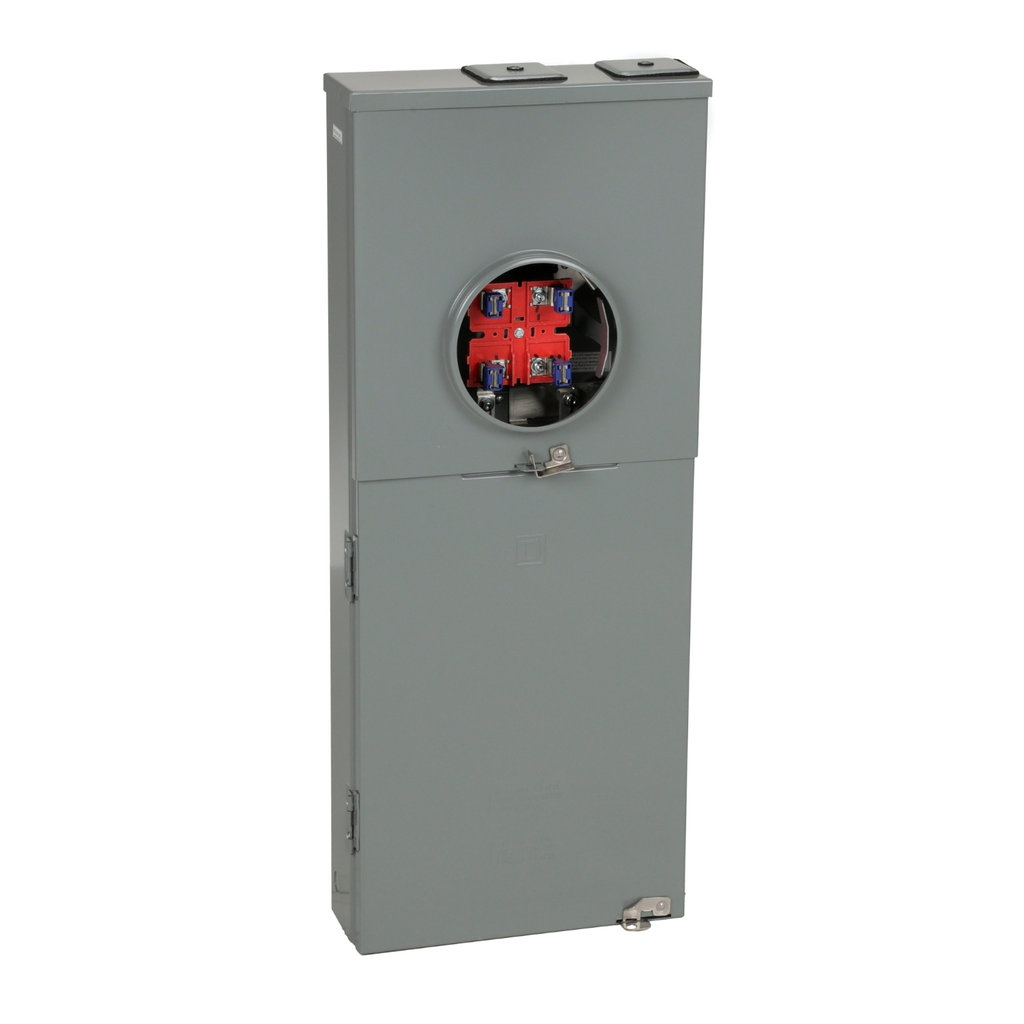

Square D RC816F150C 150 Amp 1-Phase 3-Wire Surface Mount Overhead/Underground Service Ringless Type Meter Main

Manufacturer: Square-D / Schneider | Catalog # RC816F150C | Cooper Electric Part # 10812
$912.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
The Square D® Load Centers and Combination Service Entrance Devices, RC816F150C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs.

Technical Information

Amperage
150 Amp
Applications
SERVICE EQUIPMENT
Cable Entry
OH-UG
Conductor Size
6 AWG-350 kcmil
Enclosure
NEMA 3R
Line Rated Current
150 A
Mounting Type
Surface
Number of Circuits
16
Number of Phases
1 Phase
Number of Spaces
8
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA
Size
14.37 IN,35.13 IN
Type
METER MAINS,RINGLESS
Voltage
120/240 VAC
Wire Size
AWG 6...350 kcmil aluminium/copper)line side;AWG 12...AWG 2/0 aluminium/copper)service ground

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901859192
GTiN
00785901859192
Product UPC
78590185919

Dimensions

Depth
5.07 Inch
Height
35.13 Inch
Warranty Length
18 mth
Width
14.37 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL E-6294
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
