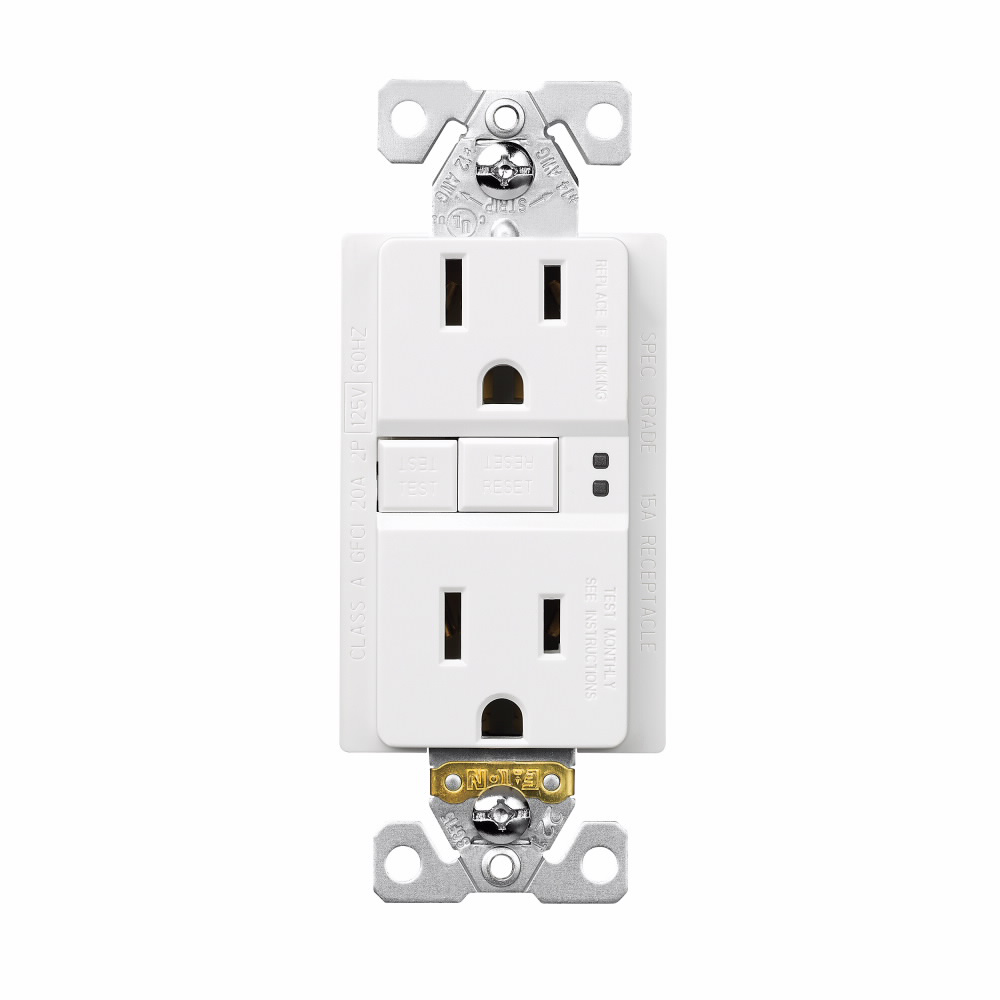

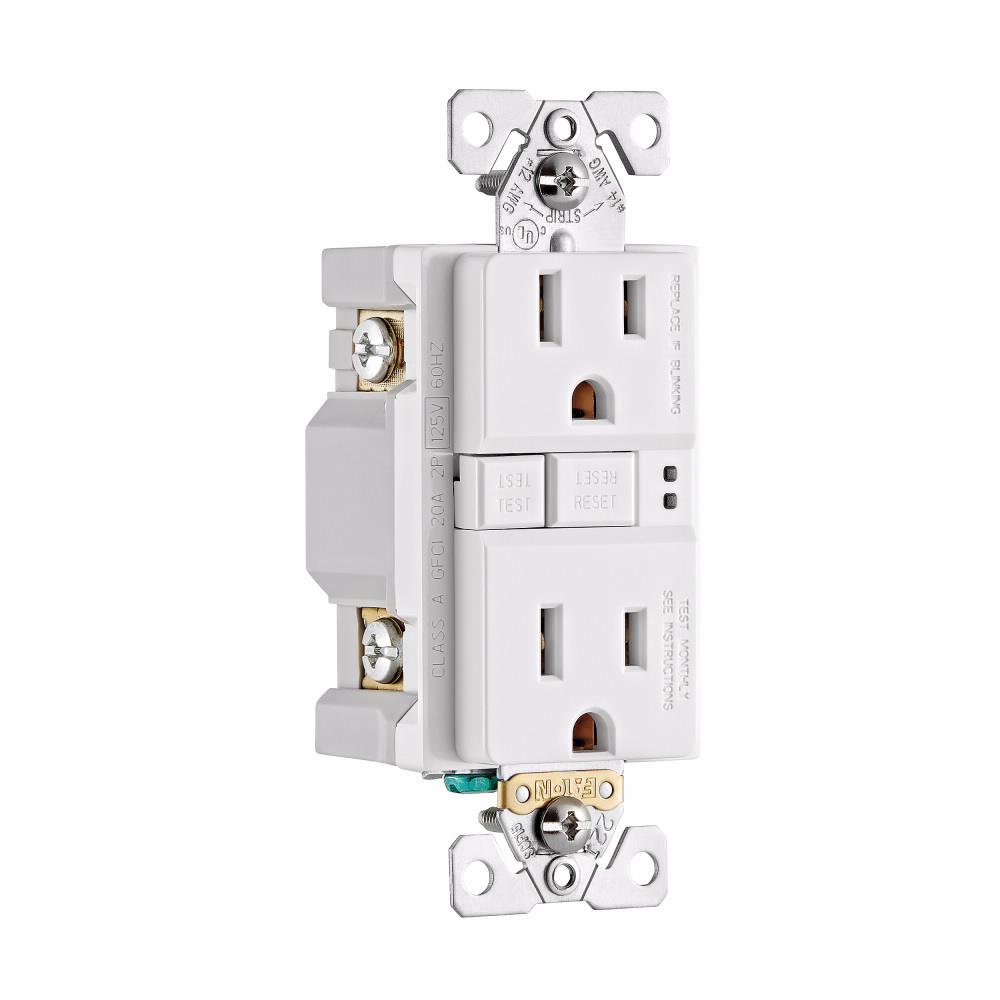

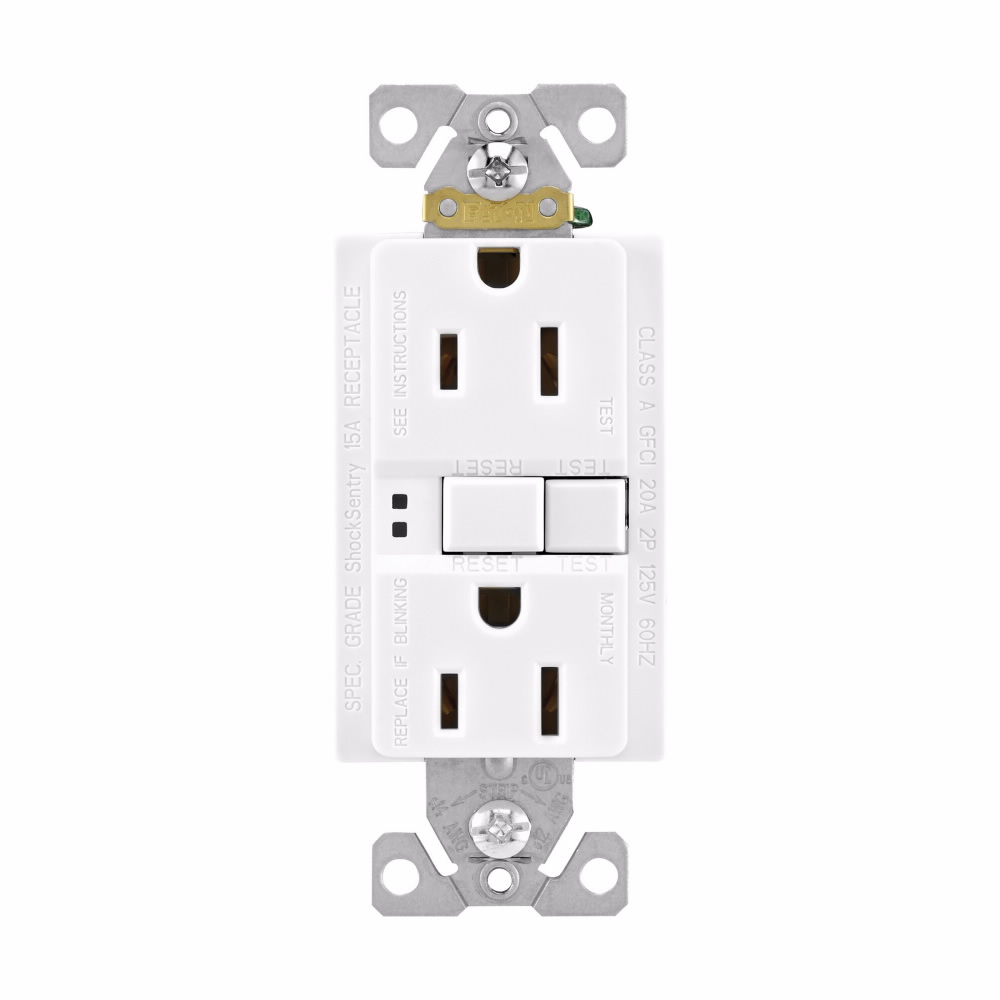

Arrow Hart Wiring SGF15W 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R White GFCI Duplex Receptacle

Manufacturer: Eaton | Cooper Wiring Device | Catalog # SGF15W | Cooper Electric Part # 1080714
$41.47/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Specification grade duplex ground fault circuit interrupter receptacle with back and side wire. ArrowHart line of self-test GFCI receptacle ensure electrical shock protection with periodical automatic testing. If no GFCI protection is present, the receptacle will render itself inoperable and a red indicator light will glow notifying the user there is no power and the device must be replaced.

Technical Information

Amperage
15 Amp
Applications
For Faulty Appliances or Tools, Wet or Damp Locations
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Dielectric Strength
2000 VAC
Grade
Specification
Grounding
Self
Material
Polypropylene
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Temperature Rating
-35 degrees C to 66 degrees C
Type
GFCI
Voltage
125 VAC

Manufacturer Information

Brand
Cooper Industries, LLC
Sub Brand
Arrow Hart

General Product Info

12-Digit UPC
032664742422
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00032664742422
Product UPC
03266474242
Weight
.37 lb

Dimensions

Height
4.61 Inch
Length
1.98 Inch
Width
2.83 in
