ALLIED 9350-16C2 22.5 CI 4 RND 16IN

Manufacturer: Allied Moulded Products | Catalog # 9350-16C2 | Cooper Electric Part # 1080706
$752.57/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet

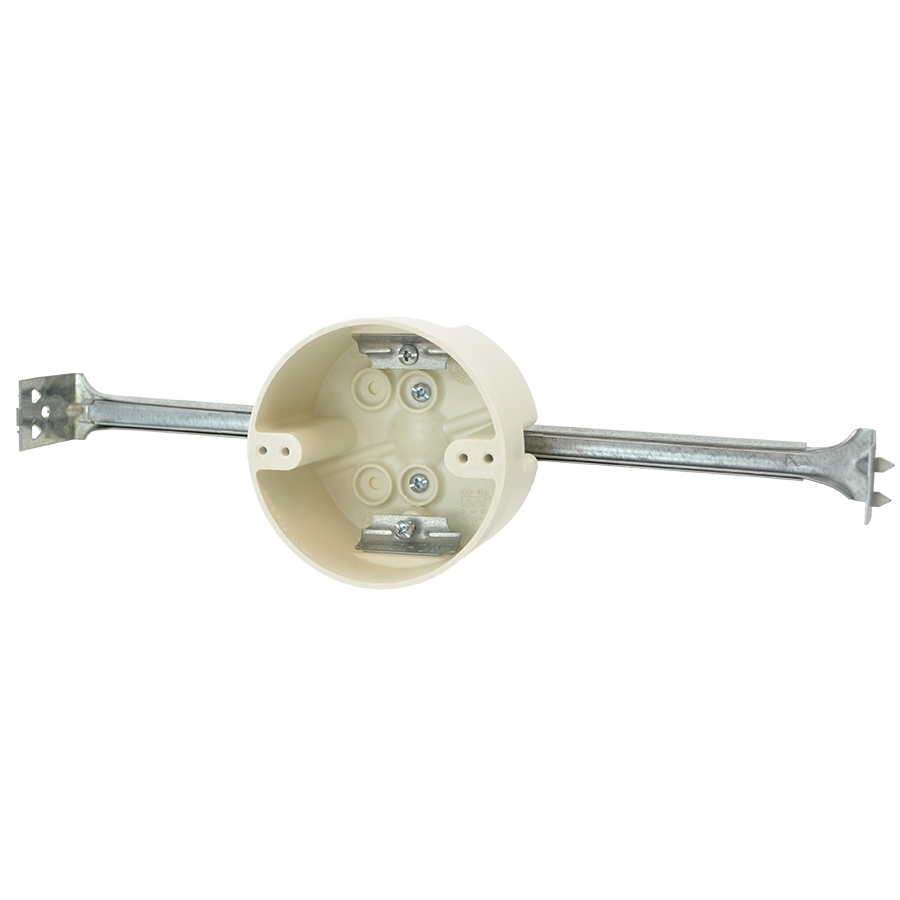

22.5 Cu. In. 4" dia. round fixture support box for use with nonmetallic sheathed cable - Machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support) - Fiberglass reinforced polyester - thermoset box with galvanized steel adjustable bar hanger - Size: Depth=2 7/16", Dia=4" - Mount with Adjustable bar hanger - max 16" on center Joist application - Two metal wire clamps factory installed

Technical Information

Applications
New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)
Cable Entry
Four "no Tools" Knockouts With 2 Steel Wire Clamps
Insulation Type
Nonconductive Nonmetallic
Material
Polyester
Mounting Type
Adjustable Bar Hanger - Max 16" On Center Joist Application
Size
Depth=2 7/16", Dia=4"
Type
4" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable

Manufacturer Information

Brand
Allied Moulded Products, Inc.
Sub Brand
FIBERGLASSBOX

General Product Info

12-Digit UPC
085339104278
Color
Beige,Tan
Construction
Injection Molded
GTiN
00085339104278
Product UPC
08533910427

Dimensions

Depth
2-7/16 Inch
Width
4 in
Features
  • Machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures
Additional Materials
  • Galvanized steel brackets and plated carbon steel fasteners
  • Plated carbon steel clamp and fasteners
Standards
  • ANSI / UL 514C: File No. E30594
Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less
  • Distance between boxes in adjacent cavities may be reduced to 5 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Mouldeds CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
Fire Resistance Classification in Wall Assemblies 2-Hours or less
  • Shall be separated by a horizontal distance of not less than 3 inches
Fire Test of Building Construction Materials
  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C
Application
  • New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)
Specifications
  • Round Ceiling Box
