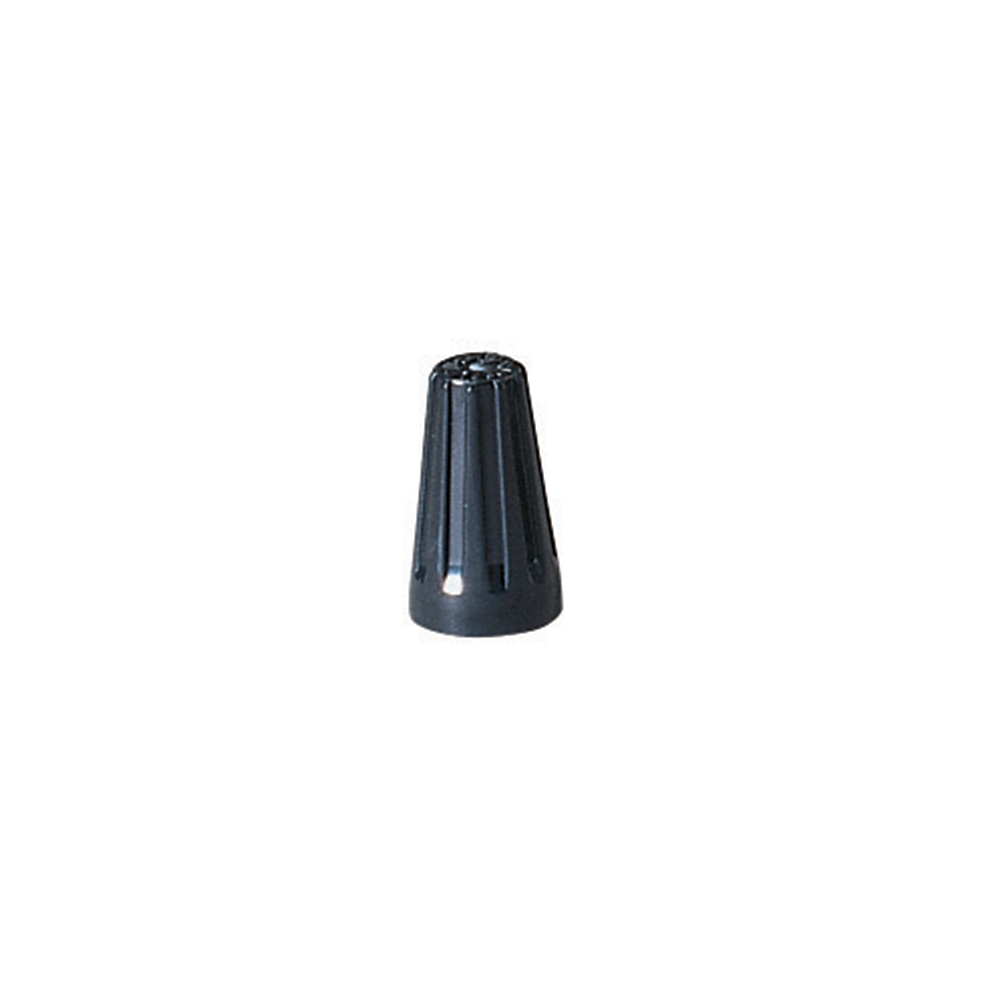

Product image for IDLC 30-251 High-Temp Wire-Nut® 71B

Email

IDLC 30-251 High-Temp Wire-Nut® 71B

Manufacturer: Ideal Industries | Catalog # 30-251 | Cooper Electric Part # 1079170

$199.77/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Safety Data Sheet
The connector that started it all, an American Classic.The IDEAL Wire-Nut® Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come.With a fixed, square-wire spring and a positive grip shell, the Wire-Nut® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.With five color-coded models available, Wire-Nut® Wire Connectors will handle any job from as small as #22 gauge wire up to #6 gauge wire.Additionally, Models 71B®, 72B®, and 73B®, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.The black high-temperature models are designed to withstand the extreme heat build-up found in high-wattage light fixtures and signs.

Technical Information

Applications
Used to Withstand Extreme Heat Build-Up Found in High-Wattage Light Fixtures and Signs
Conductor Size
22-16 AWG
Contact Material
Steel
Insulation Material
Thermoplastic
Material
Thermoplastic
Number of Conductors
1,5
Standard
CSA Certified To C22.2 #188,UL Listed To 486C
Temperature Rating
150 degrees C
Type
Straight Angled, Ribbed, High Temperature
Voltage
300 Volt

Manufacturer Information

Brand
Ideal Industries
Sub Brand
Wire-Nut®

General Product Info

12-Digit UPC
783250302512
Color
Black
Environmental Conditions
150 C
Finish
Zinc
GTiN
00783250302512
Product UPC
78325030251

Dimensions

Diameter
21/64 Inch
Length
37/64 Inch

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
WARNING: Cancer -  www.P65Warnings.ca.gov.
Features
  • Designed to withstand the extreme heat build-up found in high-wattage light fixtures and signs
  • Fixed, square-wire spring for a grip that will last
  • Refined range to handle all common applications
  • Positive grip shell that is perfect to twist-on with fingers
  • Excellent for fine stranded wire applications
  • Models 71B®, 72B®, and 73B® rated for use in Air Handling Spaces
  • Approved for bonding and grounding applications
