WAG 788-312 DPDT RELAY & SOCKET, 24VDC

Manufacturer: Wago | Catalog # 788-312 | Cooper Electric Part # 1078403
$37.05/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray.

Technical Information

AT Rated Voltage
250 V
Conductor Size
14 AWG
Contact Material
AgNi 90/10
Mounting Type
DIN-35 Rail
Strip Length
0.39 in

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
044918096861
Color
Gray
Product UPC
04491809686
Weight
45.540 g

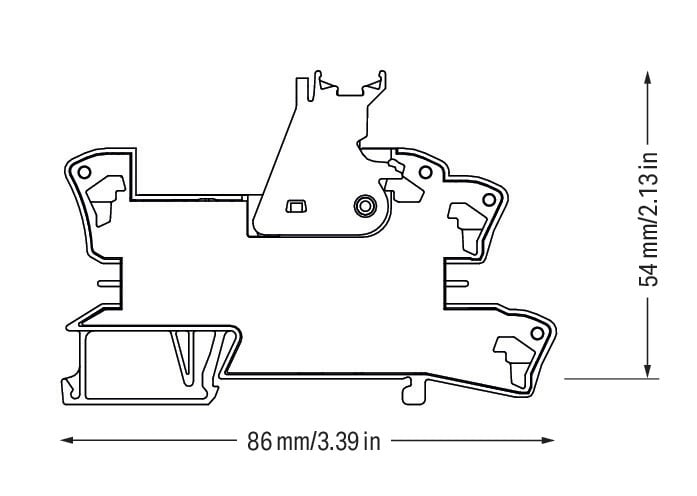

Dimensions

Depth
3.386 Inch
Height
3.386 Inch
Width
0.591 in

Certifications and Compliance

Country of Origin
China
Approvals
  • Underwriters Laboratories Inc., UL, E175199 Vol.1 Sec.6, UL 508
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00122/19, TP TC 004/2011
Accessory Products
  • 209-128
  • 209-145
  • 209-183
  • 209-184
  • 210-110
  • 210-720
  • 216-241
  • 216-242
  • 216-243
  • 216-244
  • 216-542
  • 249-105
  • 788-113
  • 788-114
  • 788-115
  • 788-116
  • 788-117
  • 788-118
  • 788-120
  • 788-156
  • 793-501
  • 793-502
  • 793-503
  • 793-504
  • 793-505
  • 859-402
  • 2009-110
  • 2009-115
