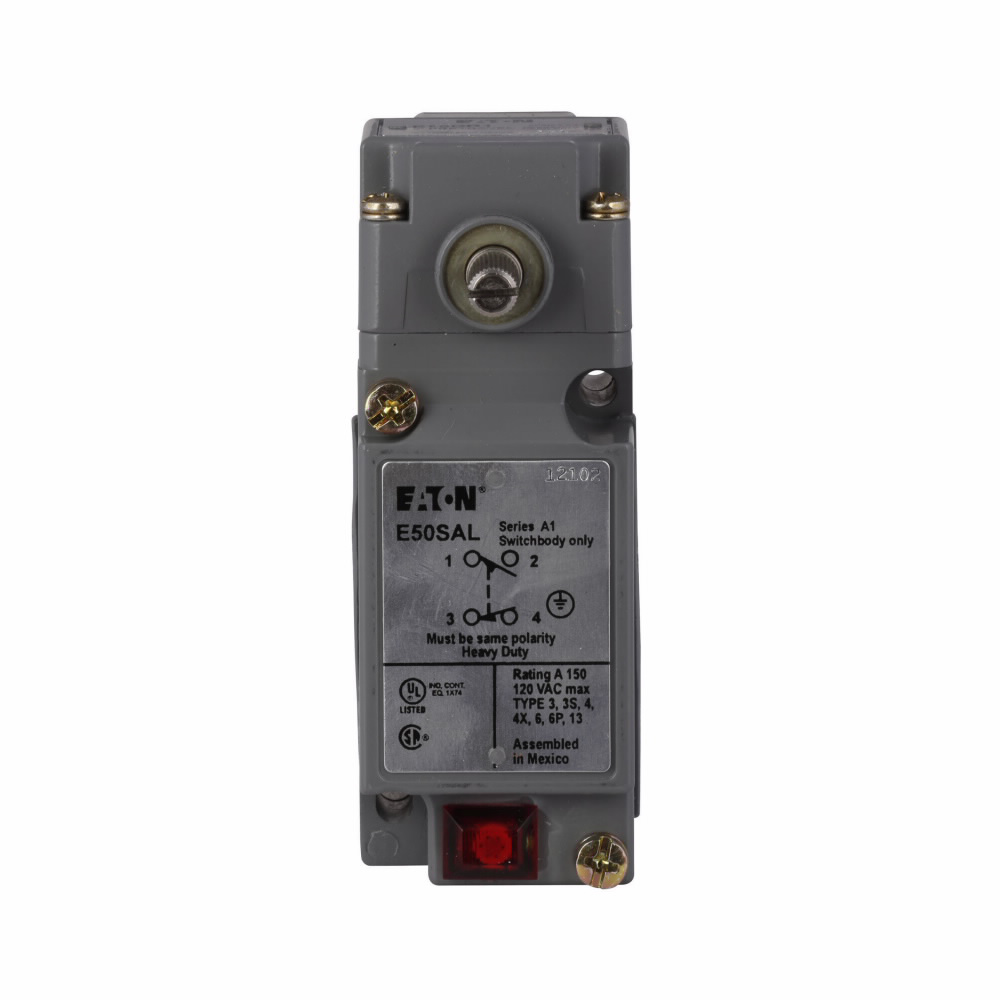

Product image for ETN E50ALR1 HEAVY DUTY LIMIT SWITCH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

ETN E50ALR1 HEAVY DUTY LIMIT SWITCH

Manufacturer: Cutler-Hammer / Eaton | Catalog # E50ALR1 | Cooper Electric Part # 1075305
$504.17/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
E50 NEMA Limit Switch,Side Rotary,Standard Spring Ret,LED,14-250F(-10-121C),1NO-1NC,10A@240Vac,1A@250Vdc,Mech 10M Elec 1M cy full load,8000 cy/hr,Screw term,1/2NPT cond,NEMA 1,3,3S,4,4X,6,6P,13,IP67,Diec Zn,UL,CSA,CE

Technical Information

Action
Snap Action, Spring Return
Actuator
Side Rotary
Amperage
10 Amp at 12 VAC, 1 Amp at 125 VDC
Connection Type
Screw
Contact Configuration
1 NO, 1 NC
Contact Rating
10 A
Enclosure Material
Zinc Die Cast
Indicator
LED Indicator
IP Rating
IP67
Material
Zinc Die Cast
Mounting Type
Plug-in
NEMA
6P,13,3,4,1,3S,4X,6
Number of Poles
1 Pole
Operating Temperature
10 To 200 degrees F
Standard
CSA,UL
TC Connection
Screw Terminals
Temperature Rating
10 - 200 degrees F
Type
Heavy Duty
Voltage
240 VAC/250 VDC

Manufacturer Information

Brand
Cutler-Hammer Manufacturing Co.

General Product Info

12-Digit UPC
782113769363
GTiN
00782113769363
Product Series
E50
Product UPC
78211376936
Weight
.41 lb

Dimensions

Height
2.46 Inch
Length
4.22 Inch
Width
1.54 in
