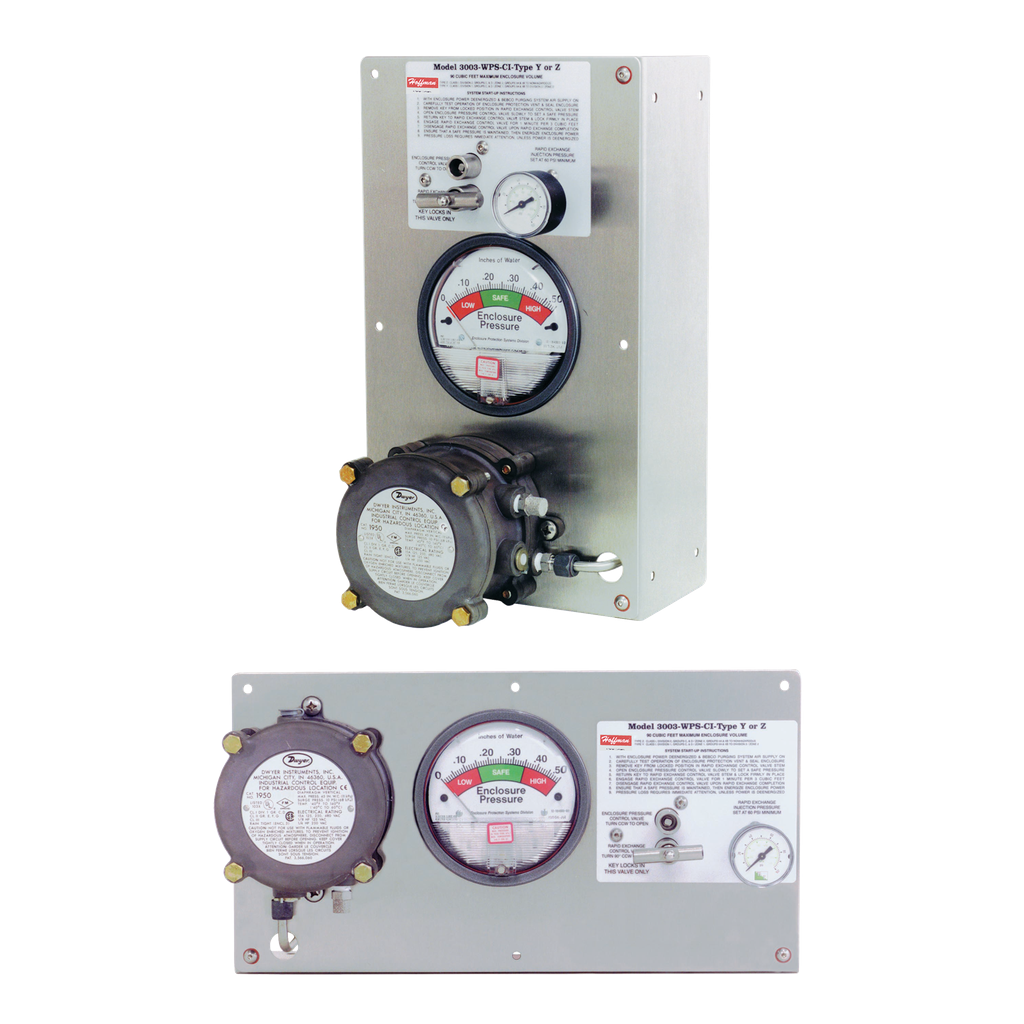

Product image for Hoffman ATEX3003YZHM 14 x 8 x 7.5 Inch 90 Cubic Foot Horizontal Mount Purging/Pressurization System
Email

Hoffman ATEX3003YZHM 14 x 8 x 7.5 Inch 90 Cubic Foot Horizontal Mount Purging/Pressurization System

Manufacturer: Hoffman | Catalog # ATEX3003YZHM | Cooper Electric Part # 1074382
$5,343.69/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Hoffman.s Ex [pz] purge system is designed and certified according to European requirements of ATEX Directive 94/9/EC and EN 60079-2 for Type Ex [pz] applications. ATEX certified Ex [pz] purge systems reduce the classification in the protected enclosure from Zone 2 to non-hazardous, thereby allowing the use and operation of general purpose equipment in the protected enclosure. Used as a Type Y purge reduces classification from Div. 1 to Div. 2. Type Z purge reduces classification from Div. 2 to Non-Hazardous.

Technical Information

Applications
Hazardous Environments
Material
Stainless Steel
Size
90CF in
Standard
C,Type Z System,Type Y System,And D/Zone 1,Division 2 Group A,Groups,3003 WPSA,UL And FM Certified: Class I,UL And FM Certified: Class 1,Groups IIB And H2 To Division 2/Zone 2,And D/Zone 2,Division I Group A,(Volume Up To 90 Cubic Feet),B
Type
Hazardous Location Accessories

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510173647
Finish
Tumble
GTiN
00783510173647
Product UPC
78351017364
Weight
14.6 lb

Dimensions

Depth
7-1/2 Inch
Height
10.7 Inch
Length
18.2 Inch
Width
18.40 in
Features
  • Vertical mount (VM) or horizontal mount (HM)
  • Available in 90 cubic feet maximum enclosure volume model
  • System face plate and mounting plate: Type 316 stainless steel tumble finish
  • Regulator body: zinc with enamel finish
  • Manifold body: anodized aluminum with Type 316 stainless steel valves
  • Enclosure pressure gauge: aluminum with enamel finish
  • Gas supply gauge: poly case and nickel-plated tube
  • Enclosure protection vent (90 degree)
  • Enclosure supply and enclosure reference bulkhead fittings: Type 316 stainless steel
  • Fastener hardware available in aluminum and stainless steel
  • Rapid-exchange control valve
  • Explosion-proof differential pressure switch with C contacts for alarm
