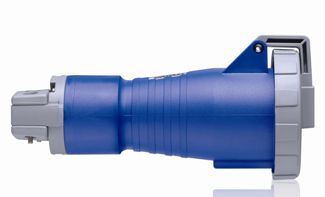

LEV 520C9W PN&SL CONN 20A W

Manufacturer: Leviton Mfg Co | Catalog # 520C9W | Cooper Electric Part # 1074098
$189.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
20 Amp, 120/208 Volt 3-Phase WYE, 4P, 5W, North American Pin & Sleeve Connector, Industrial Grade, IP67, Watertight - BLUE

Technical Information

Amperage
20 Amp
Applications
Industrial
Average Rated Life
Up To 5000 Connects And Disconnects, Under Load, At Full Rated Current And Voltage
Body Material
Valox 357
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Device Type
Connector
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
IP Rating
IP67,IP69K
Material
Valox
Mounting Type
Cable
Number of Poles
4 Pole
Number of Wires
5 Wire
Rated Insulation Voltage
2000 V
Rating
IEC 60309-1,IEC 60309-1,IEC 60309-2,IEC 60309-2
Screw Material
Steel
Size
42 Diameter x 7.95 L IN
Standard
CE Marking (Per low voltage directives 73/23/EEC, 93/68/EEC,CSA Certified (C22.2 No 182.1),IEC Rating (60309-1 And 60309-2),UL Listed (1682 And 1686)
TC Connection
Screw Terminal
Temperature Rise
150 %
Type
Watertight, Standard, Reversed Service
Voltage
120 Volt
Wire Count
5
Wire Size
14-12 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Pin & Sleeve Devices

General Product Info

12-Digit UPC
078477838808
Color
Blue
Environmental Conditions
Watertight
GTiN
60078477838800
Product UPC
07847783880

Dimensions

Warranty Length
2 yr

Certifications and Compliance

CSA
C22.2 No 182.1
