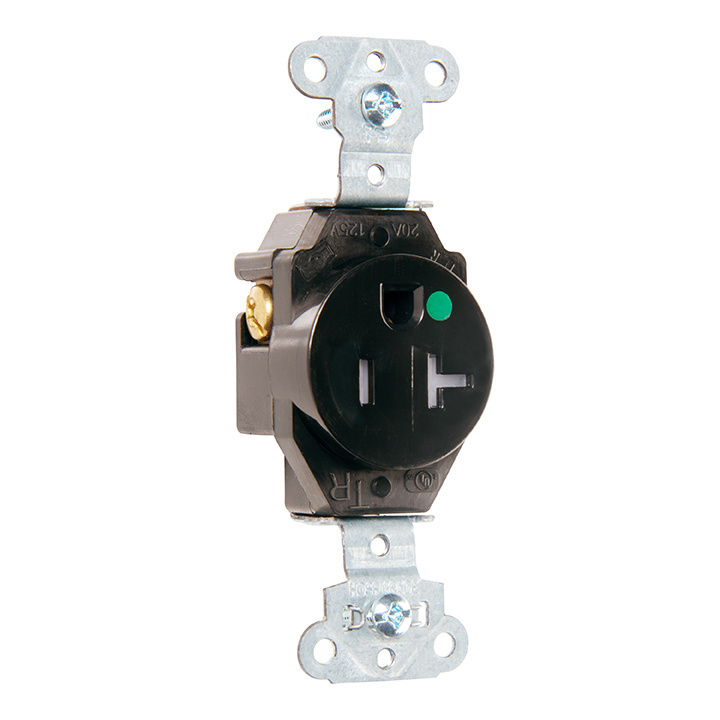

Product image for P&S TR8301 HG RECP SGL TR B&S WRE 2
Image thumbnail 0
Image thumbnail 1
Email

P&S TR8301 HG RECP SGL TR B&S WRE 2

Manufacturer: Pass & Seymour / Legrand | Catalog # TR8301 | Cooper Electric Part # 1073678
$46.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Hospital Grade Single Receptacles Tamper-Resistant, Back and Side-Wire, 20A, 125A

Technical Information

Amperage
20 Amp
Capacity
Single
Grade
Hospital
NEMA
5-20R
Type
Single Receptacles
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007030921
Color
Brown
GTiN
00785007030921
Product UPC
78500703092

Dimensions

Depth
1.093 Inch
Height
1.68 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for more wiring flexibility.
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Heavy-duty, zinc-plated steel strap for added strength.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
  • Auto-ground eliminates the necessity to terminate grounding conductor to device
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
