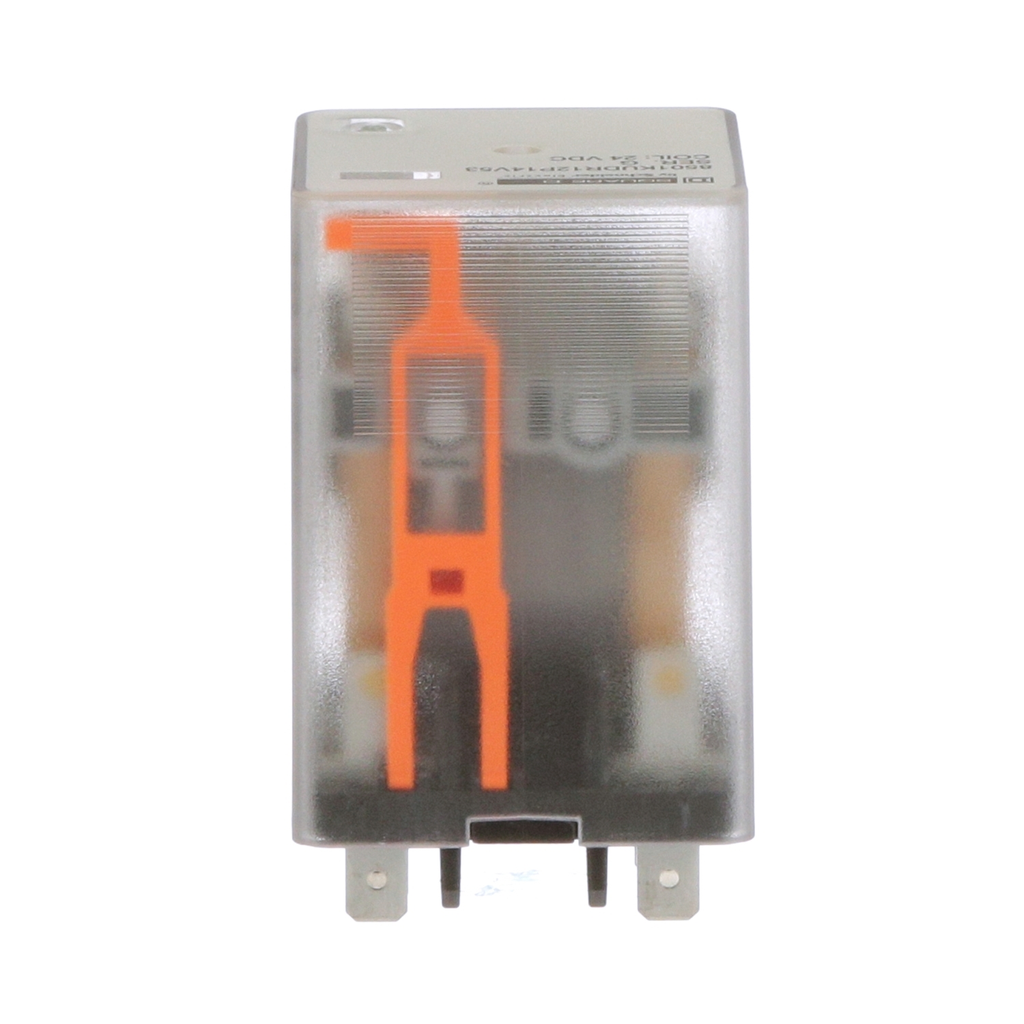

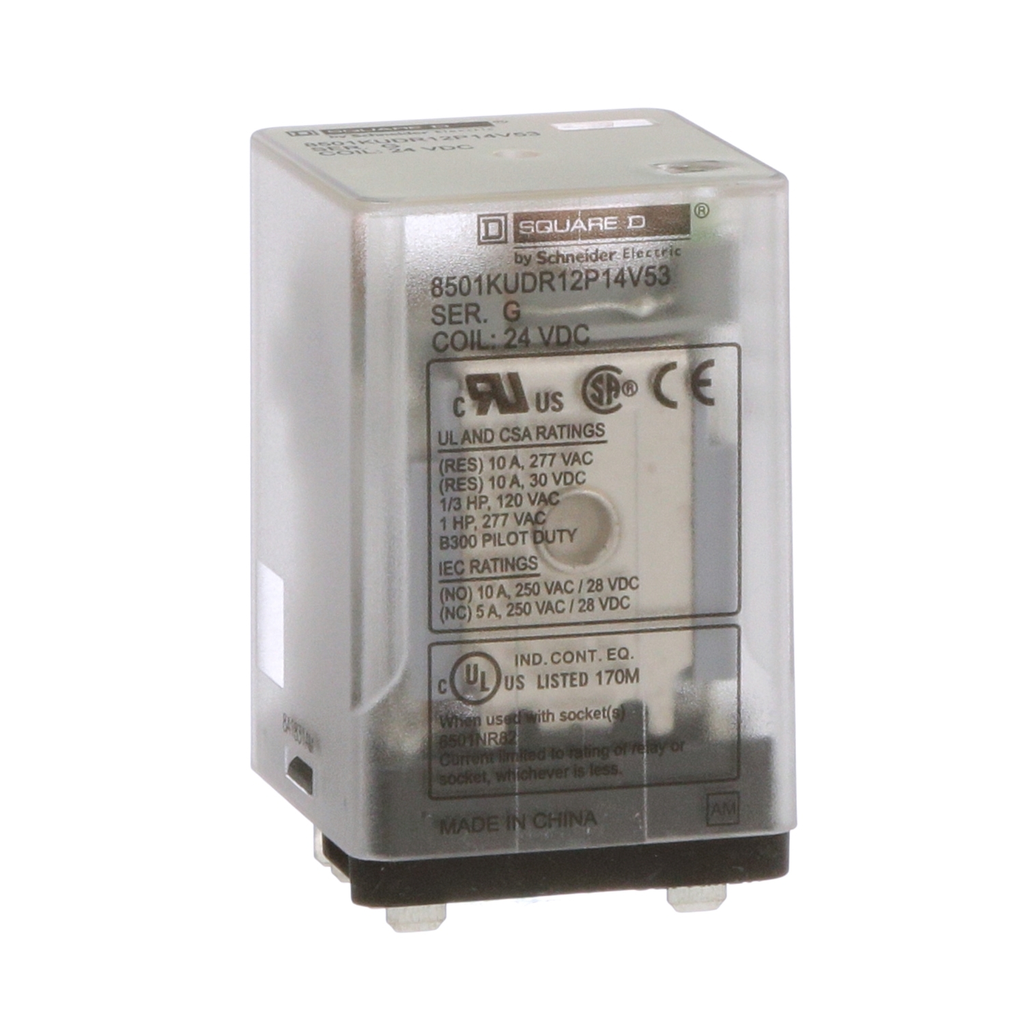

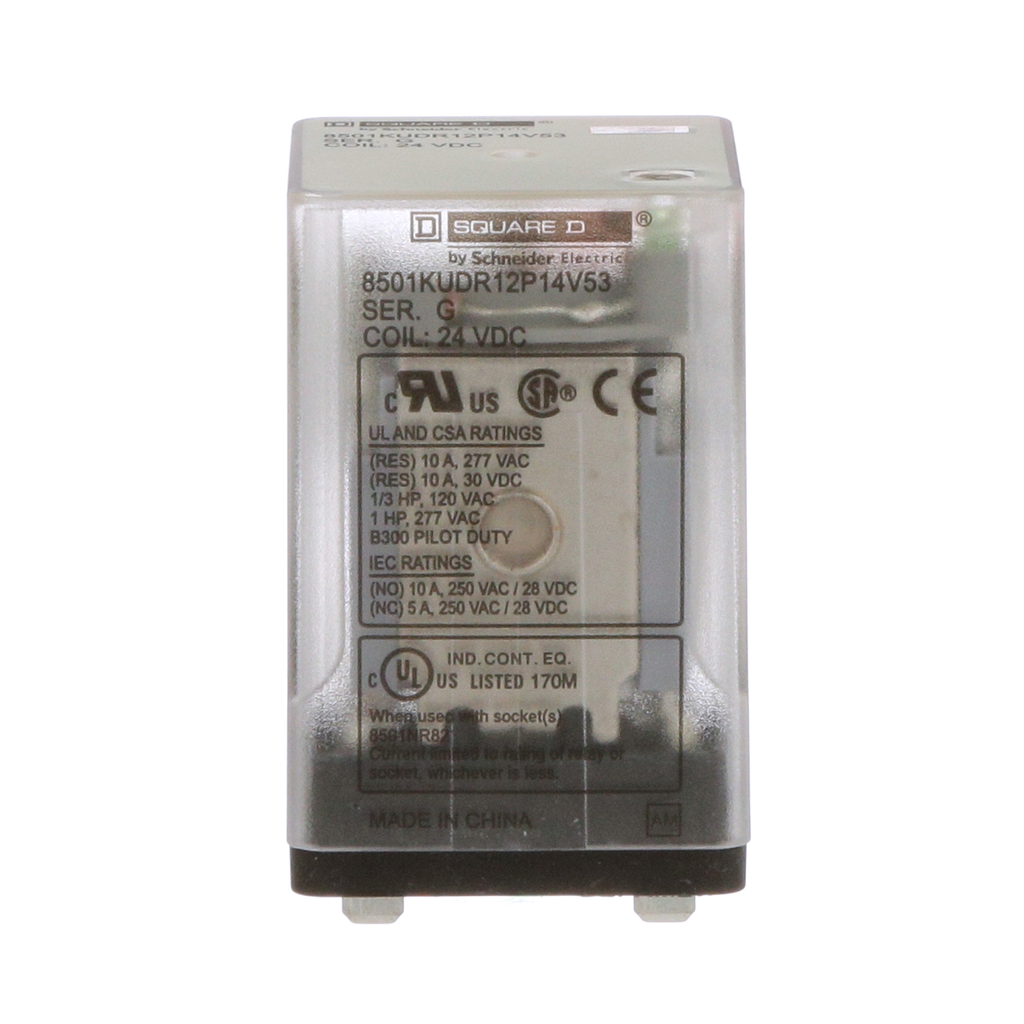

SQD 8501KUDR12P14V53 Plug in relay,

Manufacturer: Square-D / Schneider | Catalog # 8501KUDR12P14V53 | Cooper Electric Part # 1071996
$35.01/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page

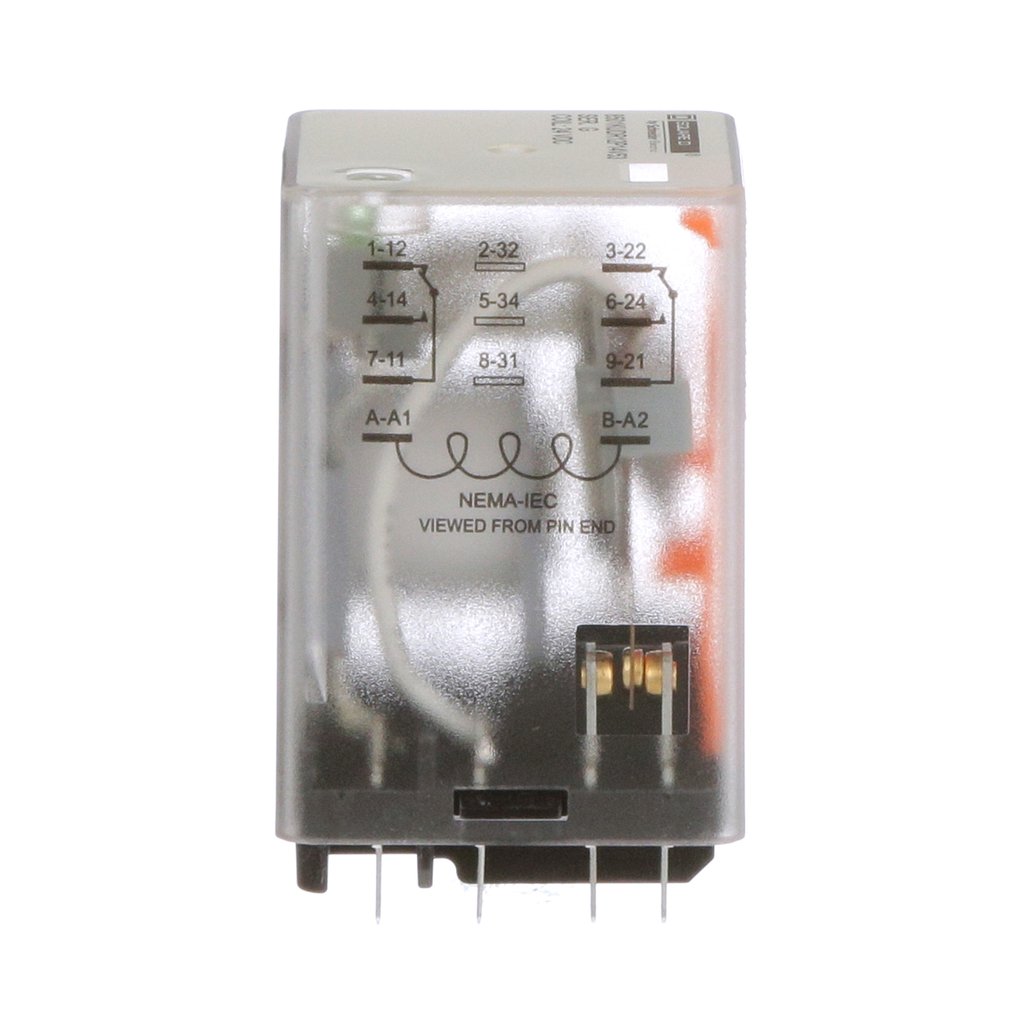

8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. A green LED indicator is supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Technical Information

Applications
8501NR82
Contact Configuration
DPDT
Contact Material
Silver Alloy
Mounting Type
Socket
Operating Temperature
-40-131 AF
Type
Relay

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901191063
GTiN
00785901191063
Product UPC
78590119106

Dimensions

Depth
1.4 Inch
Height
2-1/4 Inch
Width
1.37 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CE,CSA,UL Listed,UL Recognized
Country of Origin
China
Rated Power In HP
  • 1 hp 277 V AC
  • 0.33 hp 120 V AC
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Carbon Footprint Of The Installation Phase A5
  • 0.0006949047
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.1354907889
Operating Time
  • 20 ms - pick-up
  • 20 ms - drop-out
Maximum Switching Voltage
  • 300 V AC
  • 30 V DC
UC Control Circuit Voltage
  • 24 V DC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.6 kg CO2 eq.
  • 0.573652338
Accessories
  • 8501NR82
  • 8501NR82B
  • 8501NH82
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 22 kg CO2 eq.
  • 22.2597821351
Accessory Products
  • 8501NR82
  • 8501NR82B
  • 8501NH82
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Carbon Footprint Of The Distribution Phase A4
  • 0.011269773
  • 0 kg CO2 eq.
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Local Signalling
  • indicator light relay energised LED
Rated Breaking Capacity
  • 3 A 120 V AC inductive control circuit UL 508
  • 3 A 120 V AC inductive c
